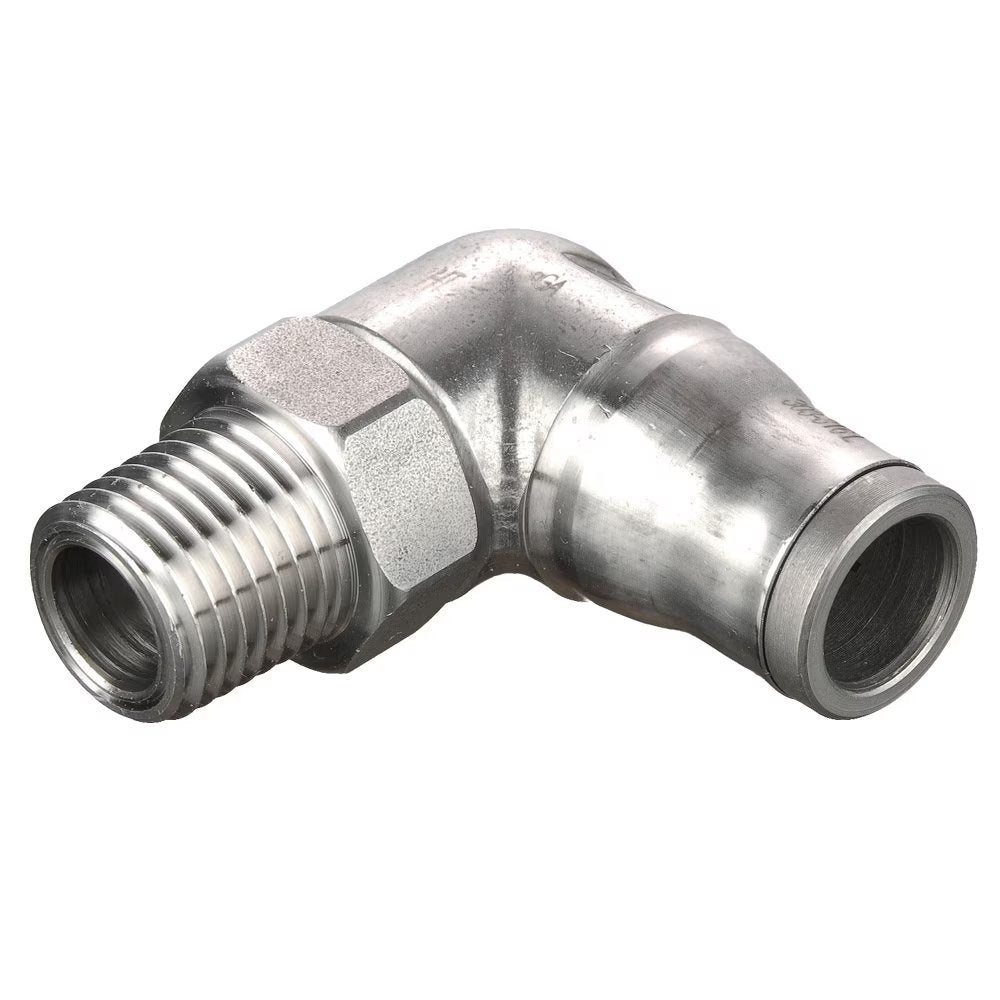

169PLS-12M-6R by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 12mm Tube Size x 3/8" Male BSPT Threads | 22mm Height | 90° Elbow | Stainless Steel | Pack of 2
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:169PLS Male Elbow - Metric Tube to BSPT
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $357.08 |
| 15–29 | $322.89 |
| 30+ | $284.90 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
|
|
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | BSPT | F | H | L |
| 169PLS-4M-2R | 4 mm | 1/8" | 13 mm | 18.00 mm | 19.00 |
| 169PLS-4M-4R | 4 mm | 1/4" | 14 mm | 18.00 mm | 19.00 mm |
| 169PLS-6M-2R | 6 mm | 1/8" | 13 mm | 20.00 mm | 24.00 mm |
| 169PLS-6M-4R | 6 mm | 1/4" | 14 mm | 20.00 mm | 23.00 mm |
| 169PLS-8M-2R | 8 mm | 1/8" | 13 mm | 24.50 mm | 32.00 mm |
| 169PLS-8M-4R | 8 mm | 1/4" | 14 mm | 23.50 mm | 24.00 mm |
| 169PLS-8M-6R | 8 mm | 3/8" | 19 mm | 23.00 mm | 25.00 mm |
| 169PLS-10M-4R | 10 mm | 1/4" | 17 mm | 27.00 mm | 31.00 mm |
| 169PLS-10M-6R | 10 mm | 3/8" | 19 mm | 26.00 mm | 31.00 mm |
| 169PLS-12M-4R | 12 mm | 1/4" | 22 mm | 31.50 mm | 33.00 mm |
| 169PLS-12M-6R | 12 mm | 3/8" | 22 mm | 32.50 mm | 33.00 mm |
| 169PLS-12M-8R | 12 mm | 1/2" | 22 mm | 27.50 mm | 33.00 mm |
