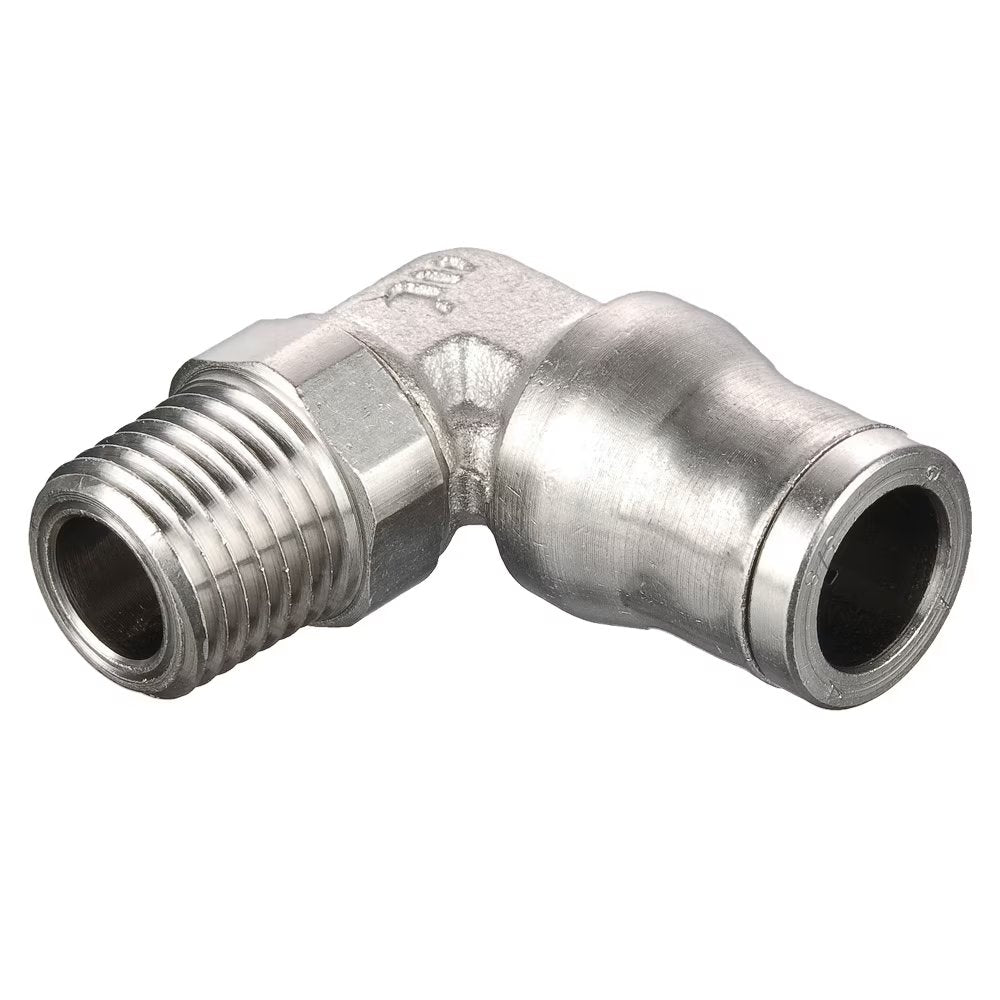

169PLM-6-8 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 3/8" Tube Size x 1/2" Male NPT Threads | .94" Height | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:169PLM Male Elbow Inch Tube to NPT, UNF
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $154.28 |
| 20–59 | $139.51 |
| 60+ | $123.10 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | NPT / UNF | F | H | K | L |
| 169PLM-4M-0 | 5/32" | 10-32" | 10 mm | .71" | .43" | .71" |
| 169PLM-4M-2 | 5/32" | 1/8" | 11 mm | .59" | .47" | .71" |
| 169PLM-4M-4 | 5/32" | 1/4" | 14 mm | .67" | .60" | .71" |
| 169PLM-4-2 | 1/4" | 1/8" | 14 mm | .69" | .47" | .87" |
| 169PLM-4-4 | 1/4" | 1/4" | 14 mm | .75" | .60" | .87" |
| 169PLM-4-6 | 1/4" | 3/8" | 18 mm | .75" | .77" | .87" |
| 169PLM-6-4 | 3/8" | 1/4" | 15 mm | .93" | .63" | 1.14" |
| 169PLM-6-6 | 3/8" | 3/8" | 18 mm | 1.02" | .77" | 1.14" |
| 169PLM-6-8 | 3/8" | 1/2" | 22 mm | 1.06" | .94" | 1.14" |
| 169PLM-8-6 | 1/2" | 3/8" | 18 mm | 1.14" | .77" | 1.22" |
| 169PLM-8-8 | 1/2" | 1/2" | 22 mm | 1.14" | .94" | 1.22" |
