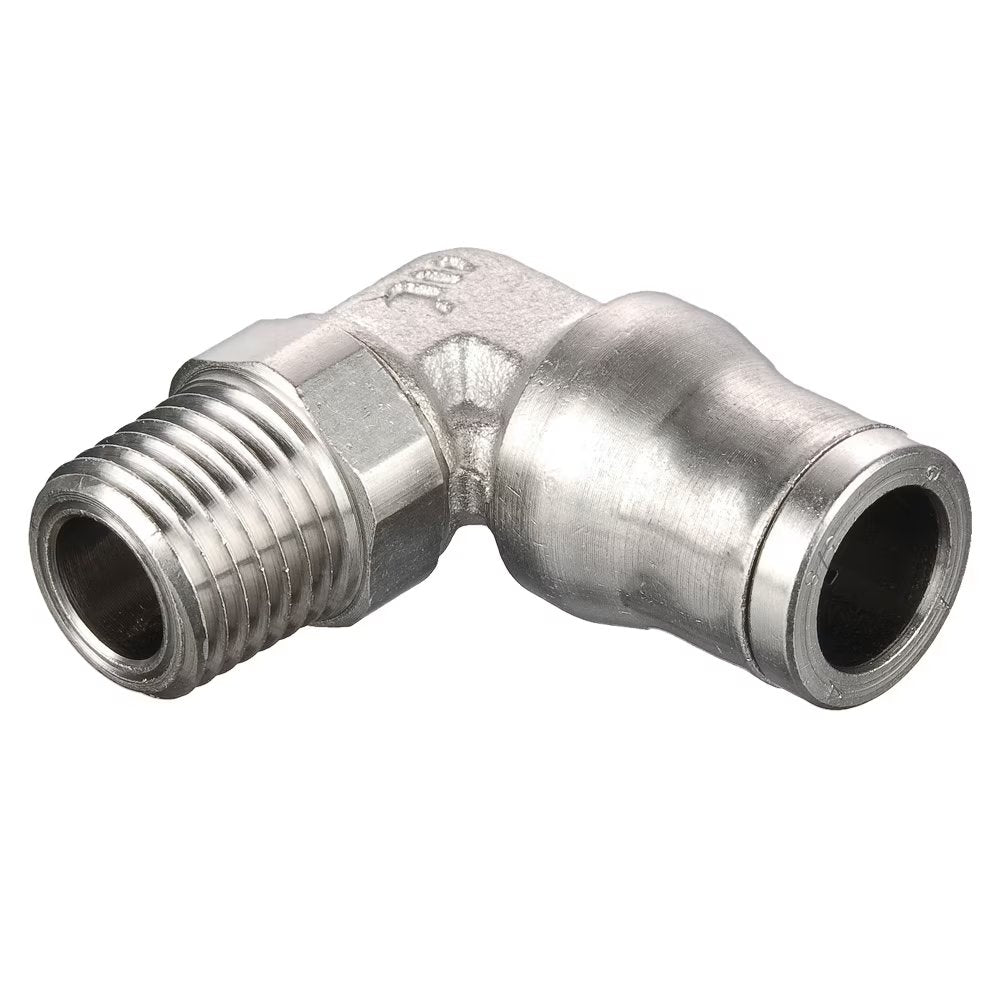

169PLM-4M-M5 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 4 mm Tube Size x M5X0.8 Male M5 Threads | 11.00 mm Height | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 10

169PLM-4M-M5 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 4 mm Tube Size x M5X0.8 Male M5 Threads | 11.00 mm Height | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 10

Sale price$113.77

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:169PLM Male Elbow Tube to BSPP, Metric

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $106.94
20–59 $96.70
60+ $85.33
Discounts applied in cart/checkout.

Product Data:

Series:
  • 169PLM Series
Shape:

90° Elbow

Material(s):
  • Nickel-Plated Brass
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPP / Metrics F H K L
169PLM-4M-M5 4 mm M5X0.8 10 mm 18.00 mm 11.00 mm 18.00 mm
169PLM-4M-2G 4 mm 1/8" 13 mm 17.00 mm 14.00 mm 18.00 mm
169PLM-4M-M6 4 mm M6X1 10 mm 18.00 mm 11.00 mm 18.00 mm
169PLM-4M-4G 4 mm 1/4" 16 mm 17.50 mm 17.50 mm 18.00 mm
169PLM-4M-M8 4 mm M8X1 11 mm 18.00 mm 12.00 mm 18.00 mm
169PLM-6M-M5 6 mm M5X0.8 10 mm 20.00 mm 14.00 mm 22.00 mm
169PLM-6M-2G 6 mm 1/8" 13 mm 19.00 mm 14.00 mm 21.50 mm
169PLM-6M-M10 6 mm M10X1 13 mm 19.00 mm 14.00 mm 21.50 mm
169PLM-6M-4G 6 mm 1/4" 16 mm 19.50 mm 17.50 mm 21.50 mm
169PLM-8M-2G 8 mm 1/8" 13 mm 20.50 mm 14.00 mm 23.50 mm
169PLM-8M-4G 8 mm 1/4" 16 mm 21.50 mm 17.50 mm 23.50 mm
169PLM-8M-6G 8 mm 3/8" 20 mm 21.50 mm 22.00 mm 23.50 mm
169PLM-10M-4G 10 mm 1/4" 16 mm 27.00 mm 17.50 mm 29.00 mm
169PLM-10M-6G 10 mm 3/8" 20 mm 20.50 mm 22.00 mm 29.00 mm
169PLM-12M-4G 12 mm 1/4" 16 mm 29.50 mm 17.50 mm 31.00 mm
169PLM-12M-6G 12 mm 3/8" 20 mm 28.50 mm 22.00 mm 31.00 mm
169PLM-12M-8G 12 mm 1/2" 24 mm 28.50 mm 26.00 mm 31.00 mm
169PLM-14M-6G 14 mm 3/8" 20 mm 29.00 mm 22.00 mm 34.00 mm
169PLM-14M-8G 14 mm 1/2" 24 mm 29.50 mm 26.00 mm 34.00 mm
