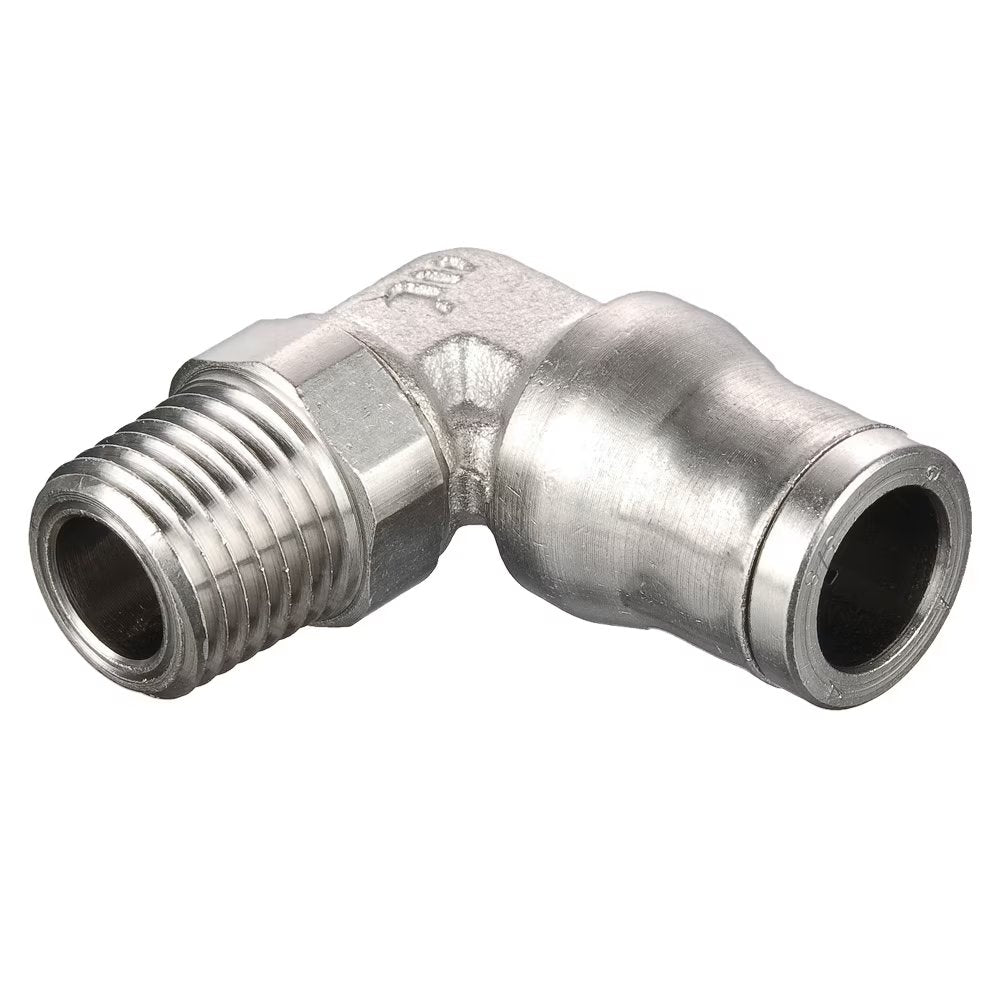

169PLM-12M-4R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 12 mm Tube Size x 1/4" Male BSPT Threads | 16.00 mm Height | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 5
by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:169PLM Male Elbow Metric Tube to BSPT
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $119.41 |
| 20–59 | $107.98 |
| 60+ | $95.27 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | BSPT | F | H | K | L |
| 169PLM-4M-2R | 4 mm | 1/8" | 11 mm | 15.00 mm | 12.00 mm | 18.00 mm |
| 169PLM-4M-4R | 4 mm | 1/4" | 14 mm | 17.00 mm | 15.00 mm | 18.00 mm |
| 169PLM-6M-2R | 6 mm | 1/8" | 11 mm | 17.50 mm | 12.00 mm | 21.50 mm |
| 169PLM-6M-4R | 6 mm | 1/4" | 14 mm | 19.00 mm | 15.00 mm | 21.50 mm |
| 169PLM-8M-2R | 8 mm | 1/8" | 11 mm | 19.50 mm | 12.00 mm | 23.50 mm |
| 169PLM-8M-4R | 8 mm | 1/4" | 14 mm | 21.00 mm | 15.00 mm | 23.50 mm |
| 169PLM-8M-6R | 8 mm | 3/8" | 17 mm | 21.00 mm | 18.50 mm | 23.50 mm |
| 169PLM-10M-4R | 10 mm | 1/4" | 15 mm | 23.50 mm | 16.00 mm | 29.00 mm |
| 169PLM-10M-6R | 10 mm | 3/8" | 17 mm | 25.50 mm | 18.50 mm | 29.00 mm |
| 169PLM-12M-4R | 12 mm | 1/4" | 15 mm | 26.00 mm | 16.00 mm | 31.00 mm |
| 169PLM-12M-6R | 12 mm | 3/8" | 17 mm | 28.50 mm | 18.50 mm | 31.00 mm |
| 169PLM-12M-8R | 12 mm | 1/2" | 21 mm | 28.50 mm | 23.00 mm | 31.00 mm |
| 169PLM-14M-6R | 14 mm | 3/8" | 19 mm | 29.00 mm | 21.00 mm | 34.00 mm |
| 169PLM-14M-8R | 14 mm | 1/2" | 24 mm | 30.00 mm | 26.00 mm | 34.00 mm |
