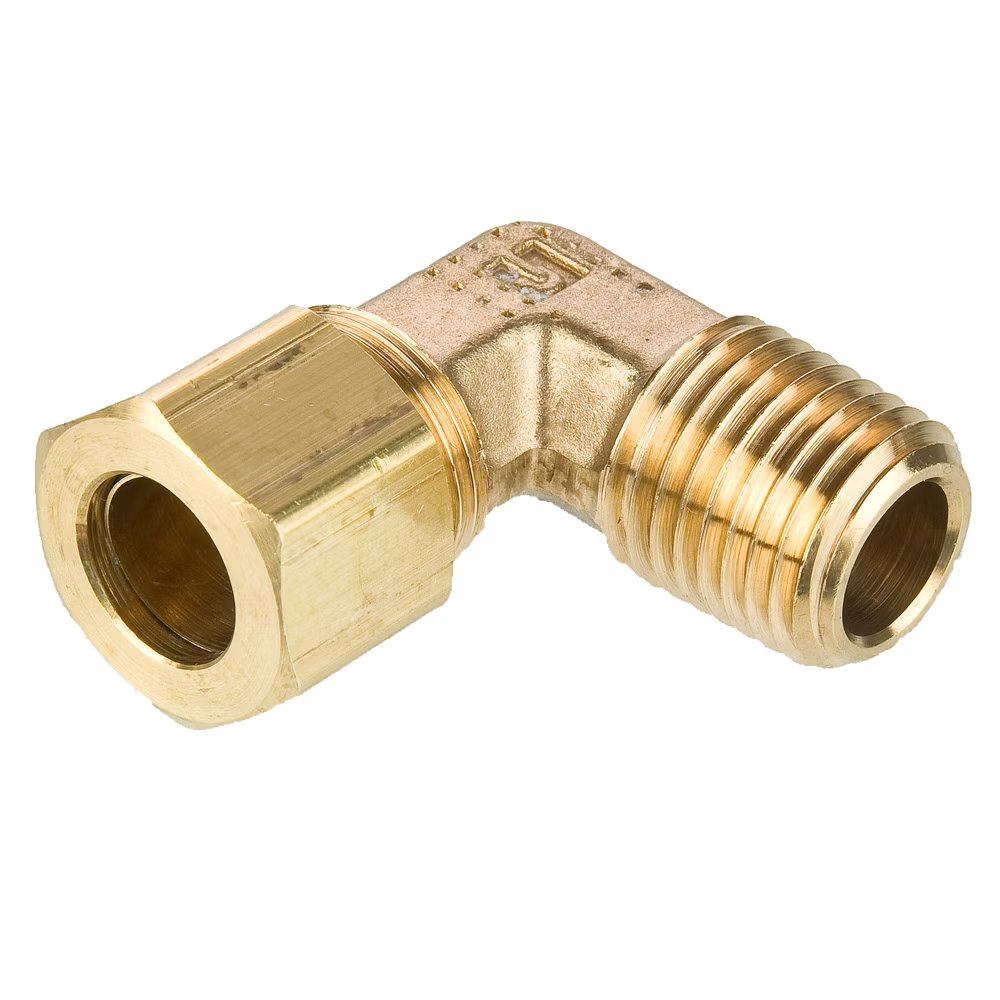

169C-3-2 by Parker | Compression Fitting | 3/16 Tube Size x 1/8" Male Pipe Thread x 3/8" Thread | 90° Elbow | Brass | Pack of 10

169C-3-2 by Parker | Compression Fitting | 3/16 Tube Size x 1/8" Male Pipe Thread x 3/8" Thread | 90° Elbow | Brass | Pack of 10

Sale price$54.36

by Parker Hannifin
Compression Fittings:Male Elbow 169C

Package Quantity: 10 Units

Quantity Price Each
20–49 $51.64
50–99 $48.92
100+ $43.49
Discounts applied in cart/checkout.

Product Data:

Series:
  • 169C Series
Shape:

90° Elbow

Ends Configuration:
  • 3/16in Tube Compression
  • 1/8in Male NPT
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
169C-2-1 1/8" 1/16" 5/16"-24 .81" .60" .67" .095"
169C-3-1 3/16" 1/16" 3/8"-24 .85" .61" .67" .126"
169C-3-2 3/16" 1/8" 3/8"-24 .83" .60" .67" .125"
169C-3-4 3/16" 1/4" 3/8"-24 .86" .64" .93" .125"
169C-4-2 1/4" 1/8" 7/16"-24 .87" .60" .73" .188"
169C-4-4 1/4" 1/4" 7/16"-24 .87" .60" .80" .188"
169C-4-6 1/4" 3/8" 7/16"-24 .93" .68" 1.00" .188"
169C-5-2+ 5/16" 1/8" 1/2"-24 .88" .61" .74" .234"
169C-5-4 5/16" 1/4" 1/2"-24 .95" .71" .93" .250"
169C-5-6 5/16" 3/8" 1/2"-24 1.01" .75" 1.00" .250"
169C-6-2+ 3/8" 1/8" 9/16"-24 1.03" .74" .74" .234"
169C-6-4 3/8" 1/4" 9/16"-24 1.03" .74" .93" .312"
169C-6-6 3/8" 3/8" 9/16"-24 1.03" .75" 1.00" .312"
169C-6-8 3/8" 1/2" 9/16"-24 1.22" .94" 1.27" .312"
169C-8-4+ 1/2" 1/4" 11/16"-20 1.34" .94" 1.00" .312"
169C-8-6 1/2" 3/8" 11/16"-20 1.34" .93" 1.11" .406"
169C-8-8 1/2" 1/2" 11/16"-20 1.48" 1.00" 1.37" .406"
169C-10-8 5/8" 1/2" 13/16"-18 1.48" 1.06" 1.31" .500"
169C-12-8 3/4" 1/2" 1"-18 1.64" 1.18" 1.49" .562"
169C-12-12 3/4" 3/4" 1"-18 1.70" 1.27" 1.58" .562"

+ For these parts the pipe thread through hole is smaller than the through hole on the flare end.
