1695VLV-4-4 by Parker | Vibra-Lok Fittings | 1/4" Tube Size x 7/16" Male Thread | 9/16" Hex Nut | 9/16" Body Hex | 9/16" Jam Jut Hex | 90° Elbow | Brass
by Parker Hannifin

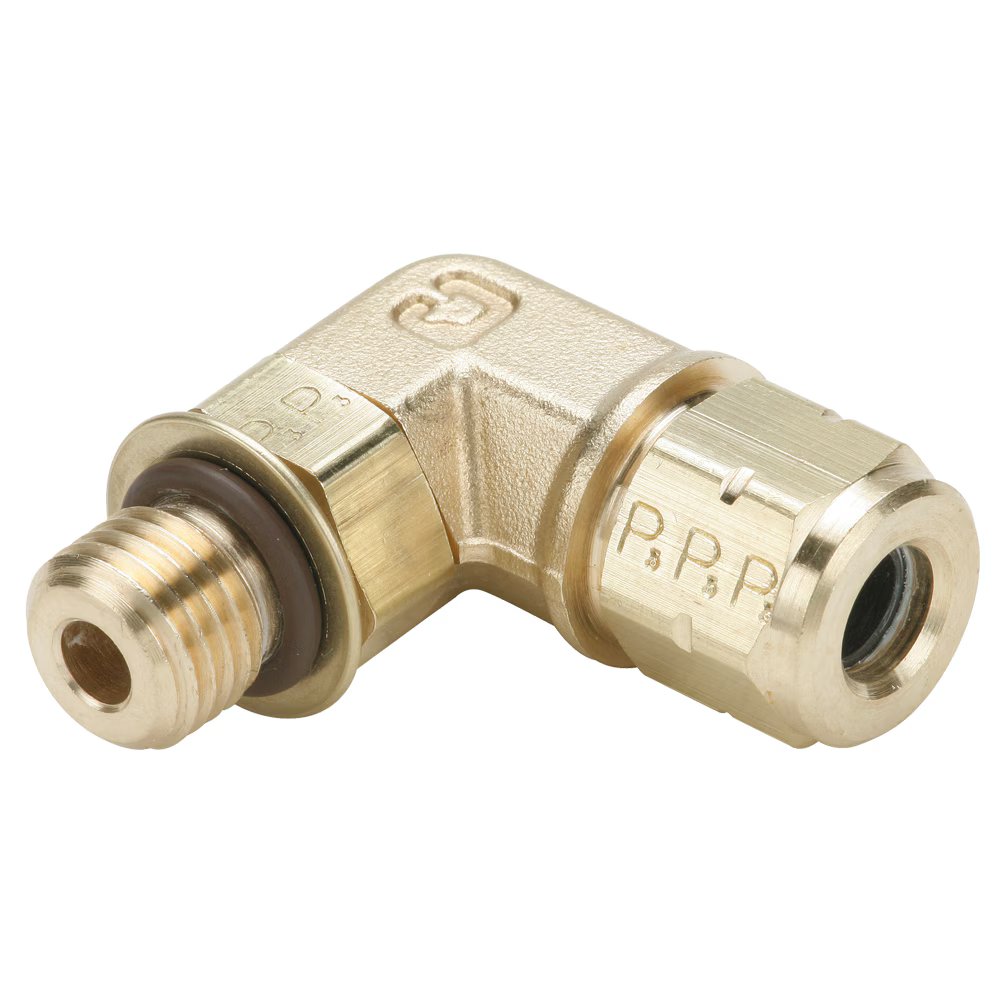

Vibra-Lok Fittings:Male Elbow 1695VLV
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $35.93 |
| 40–79 | $32.49 |
| 80+ | $28.67 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Dependent on condition and tube size, refer to pressure chart |
 |
|
| Temperature Range: | -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve |
| Compatible Tubing: |
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | Straight Thread | Nut Hex | Body Hex | Jam Nut Hex | L | M | N1 | N2 | D |
| 1695VLV-4-4 | 1/4" | 7/16"-20 | 9/16" | 9/16" | 9/16" | 1.15" | .84" | 1.07" | .71" | .18" |
| 1695VLV-8-8 | 1/2" | 3/4"-16 | 15/16" | 3/4" | 7/8" | 1.54" | 1.06" | 1.44" | .89" | .39" |
| 1695VLV-12-12 | 3/4" | 1-1/16"-12 | 1-1/4" | 1" | 1-1/4" | 2.04" | 1.28" | 1.82" | 1.17" | .62" |
Note: Fluorocarbon seal & o-ring standard
