168X4X4 by Danfoss | Compression Fitting | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass
168X4X4 by Danfoss | Compression Fitting | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass
168X4X4 by Danfoss | Compression Fitting | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass

168X4X4 by Danfoss | Compression Fitting | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass

Minimum Order Quantity: 5 Units

Sale price$5.35

Aeroquip® by Danfoss

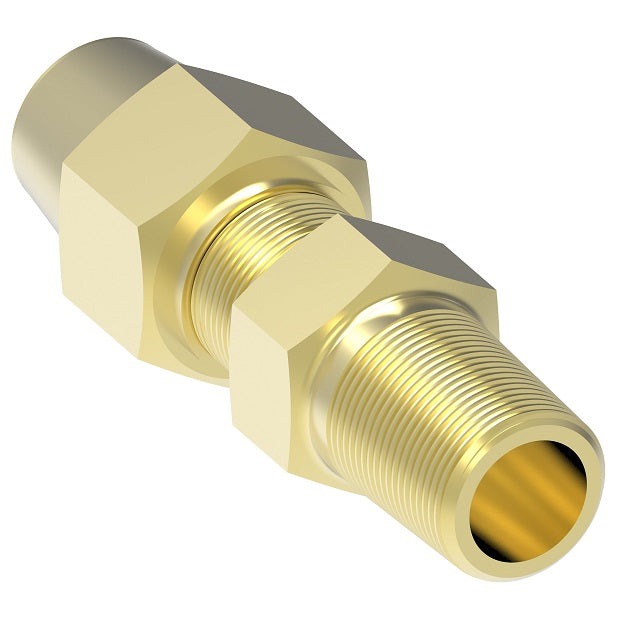

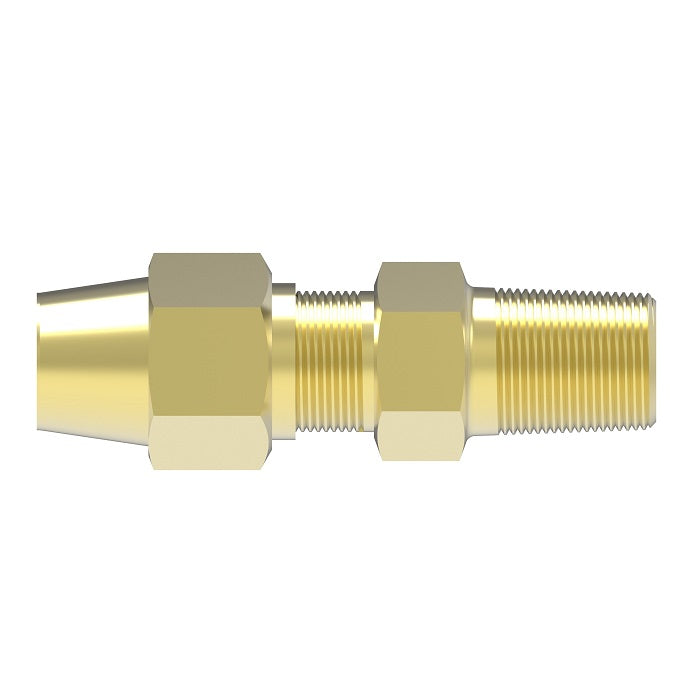

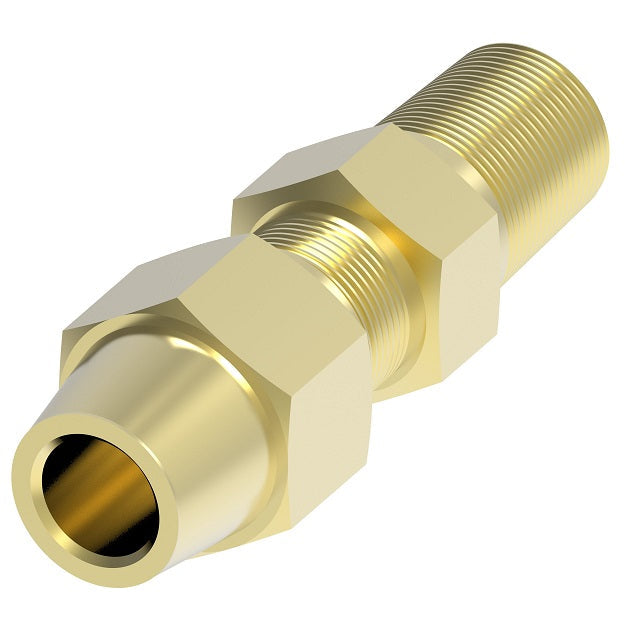

Compression Fitting - Male Connector (with Long Nut)
Compression End x Male NPTF
Straight
Buy More, Save More!
Quantity Price Each
20–39 $5.03
40–79 $4.55
80+ $4.01
Discounts applied in cart/checkout.

Product Data:

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Male NPTF
Material(s):
  • Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060102BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Tube O.D. Male Pipe Thread
168X2 1/8" 1/8"
168X4 1/4" 1/8"
168X4X4 1/4" 1/4"
168X6 3/8" 1/4"
168X6X2 3/8" 1/8"
168X6X6 3/8" 3/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
