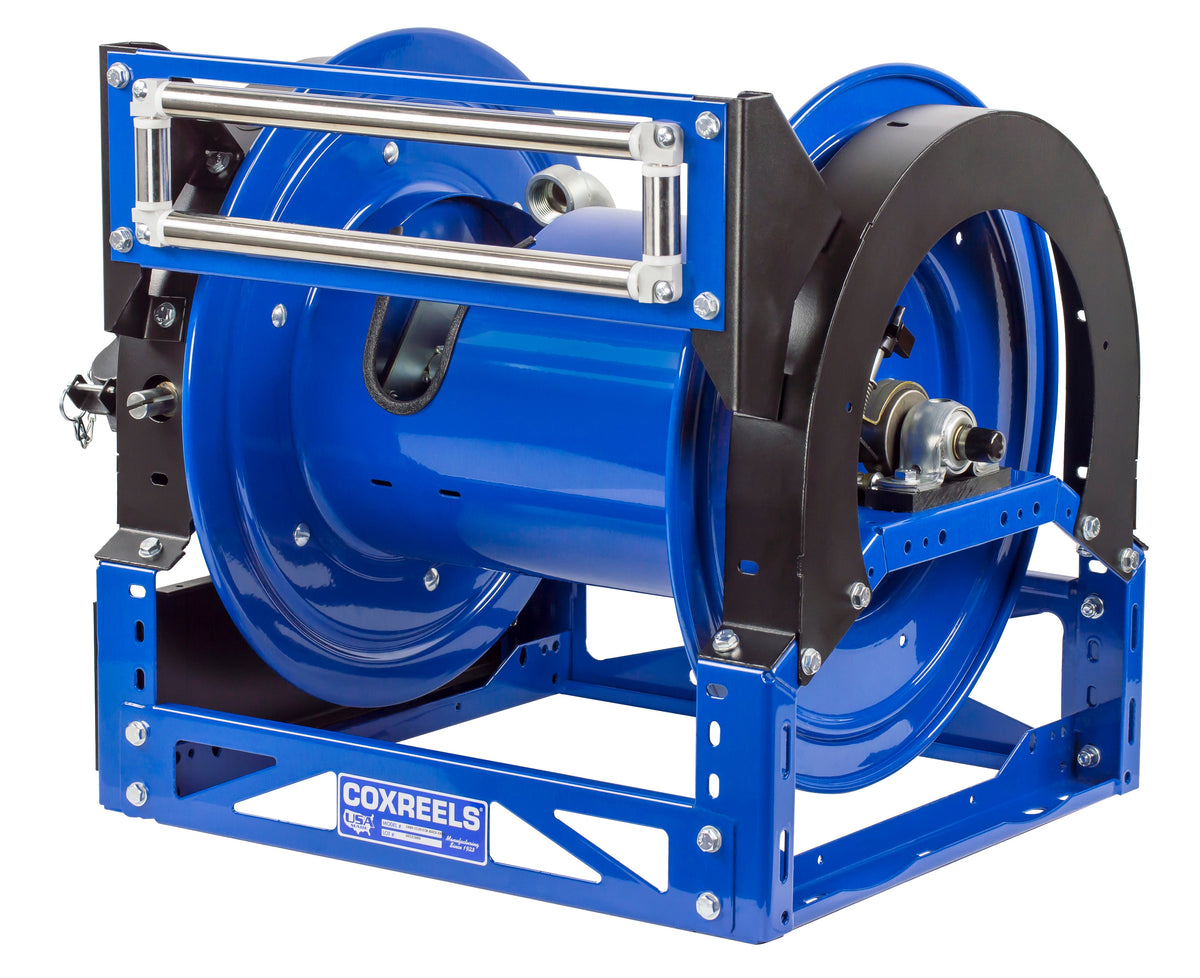

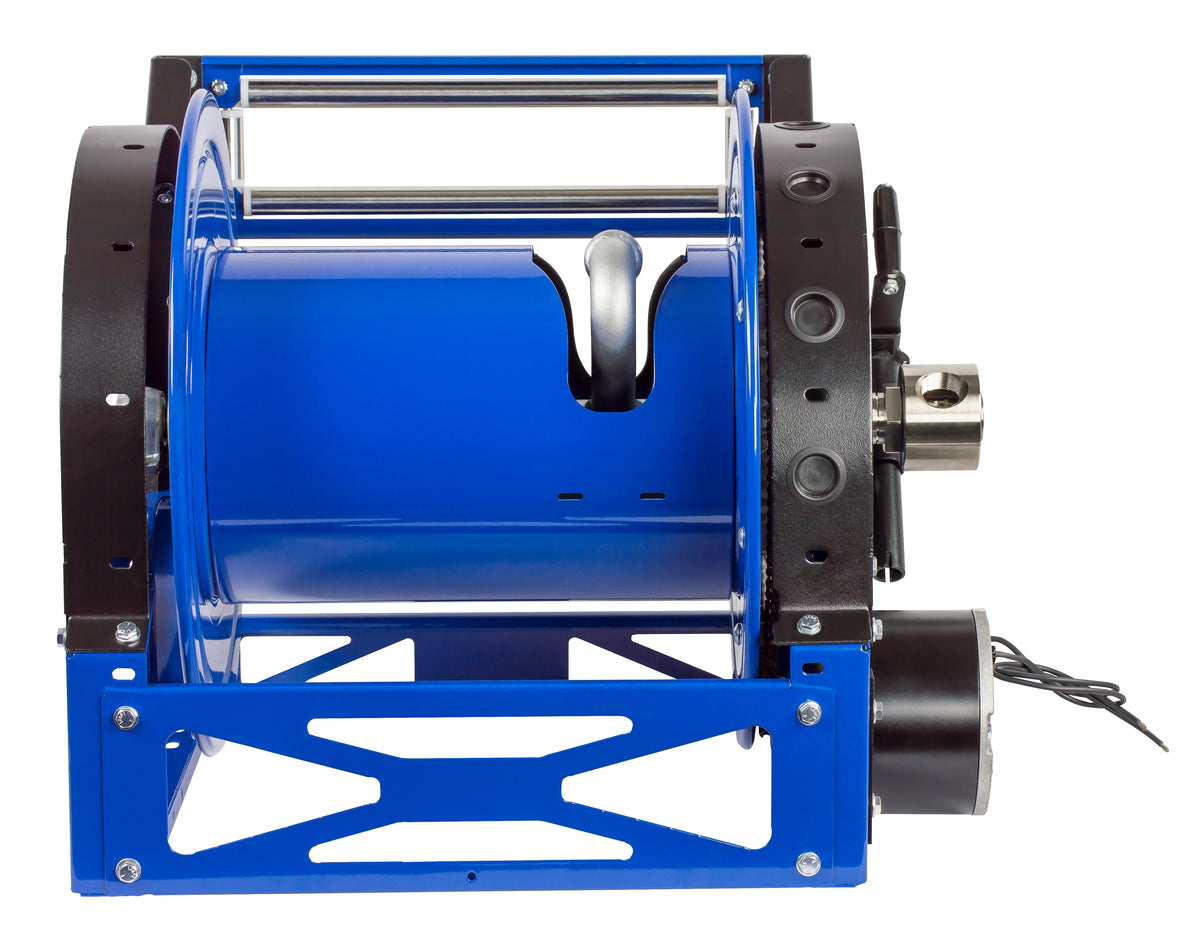

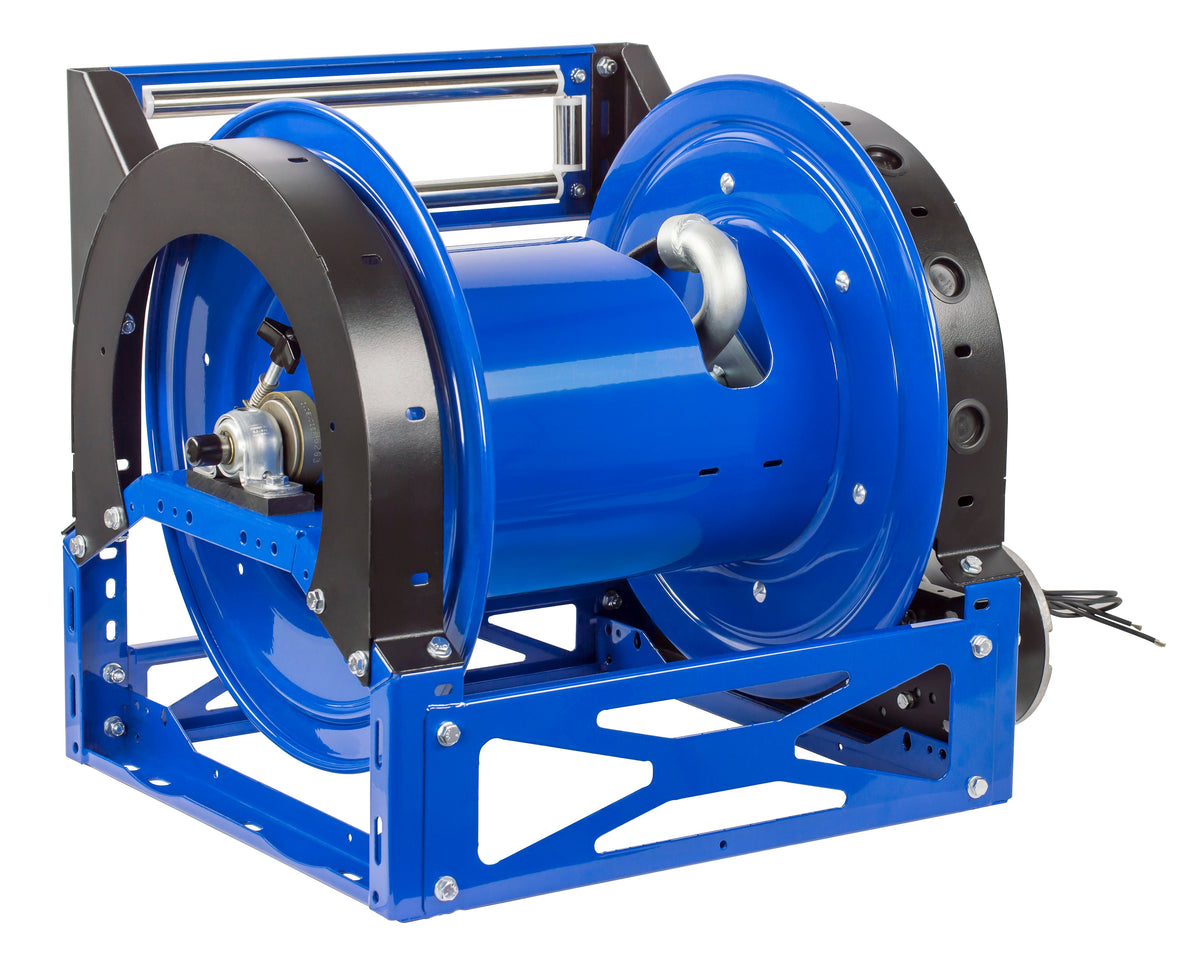

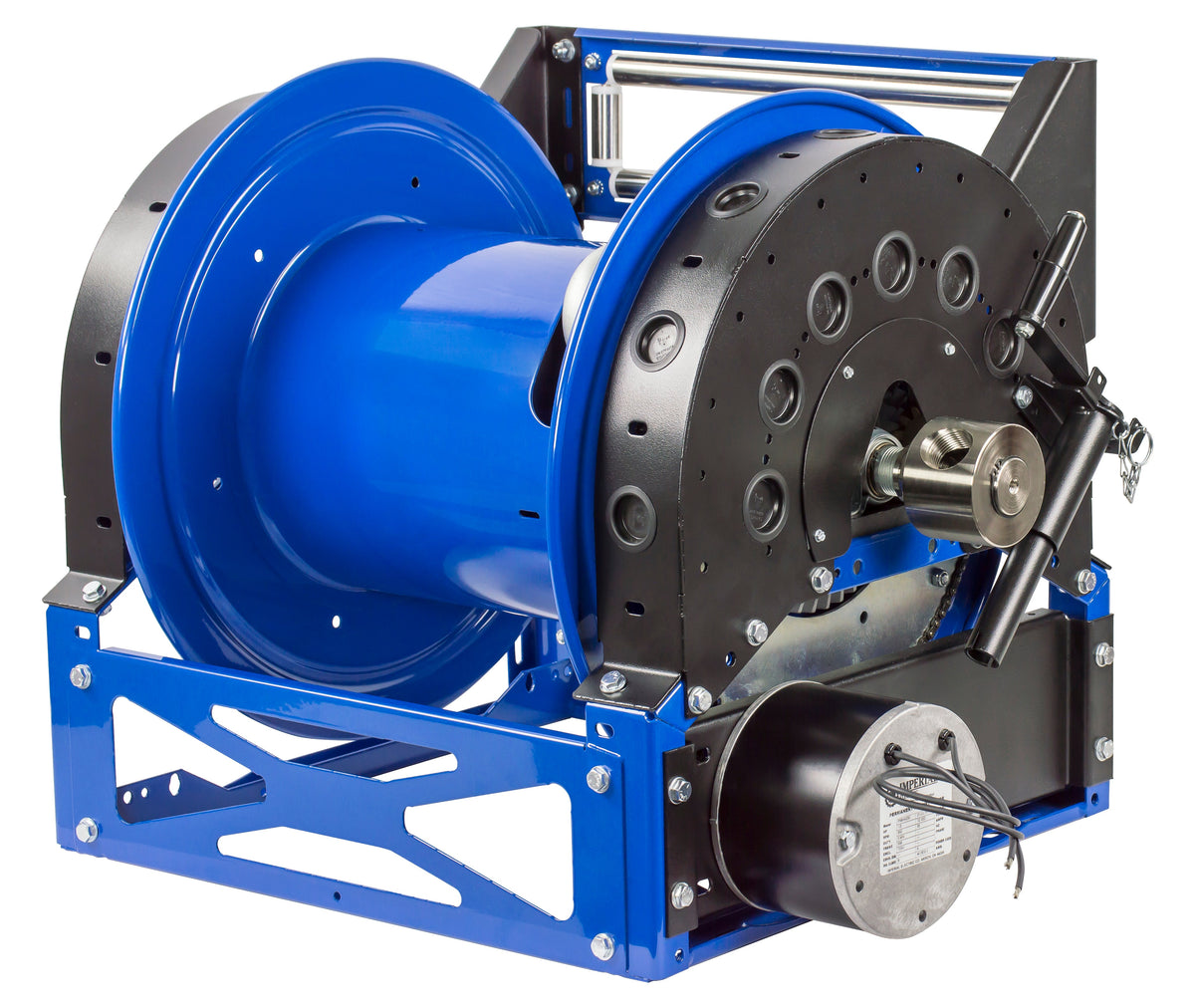

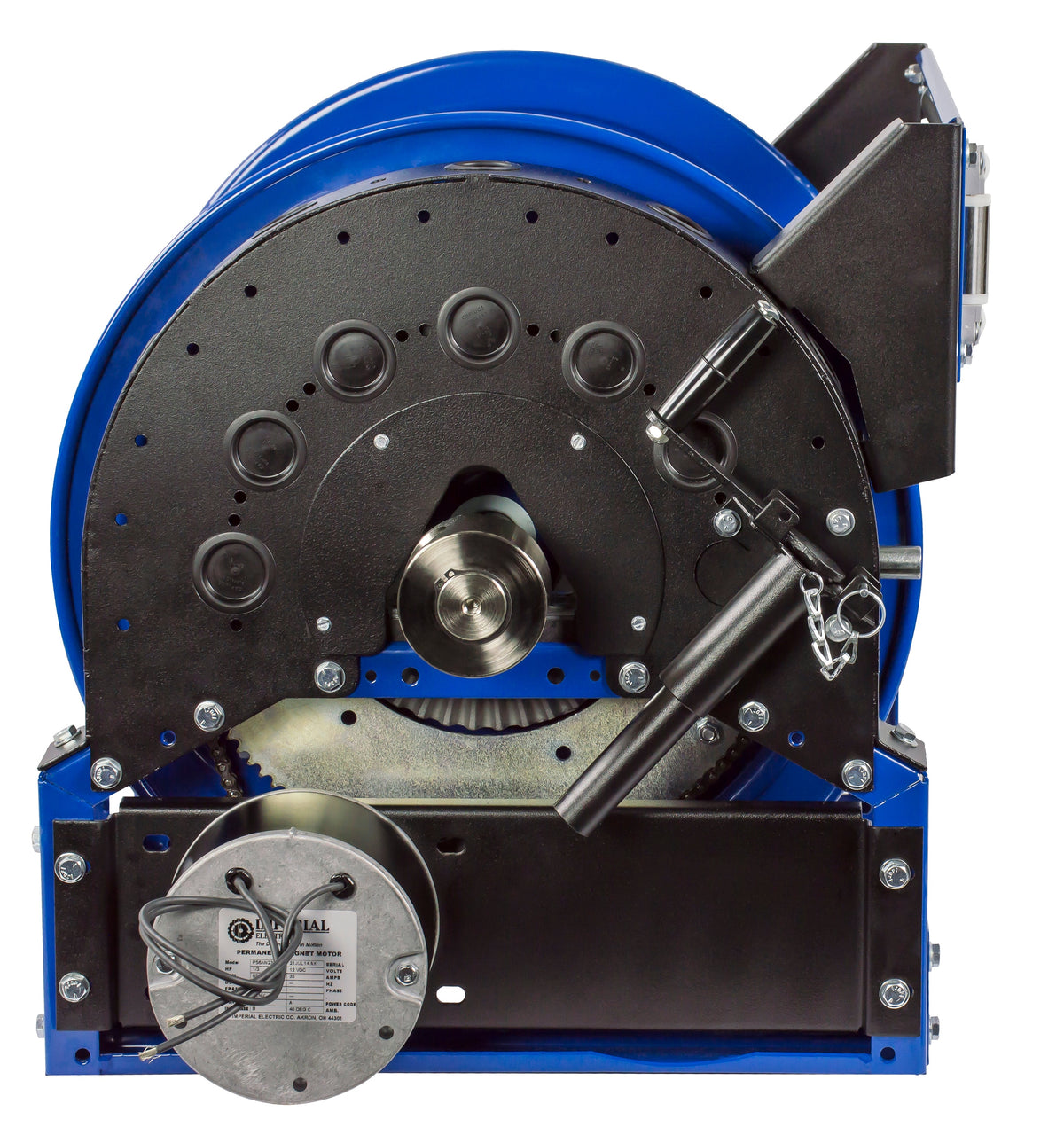

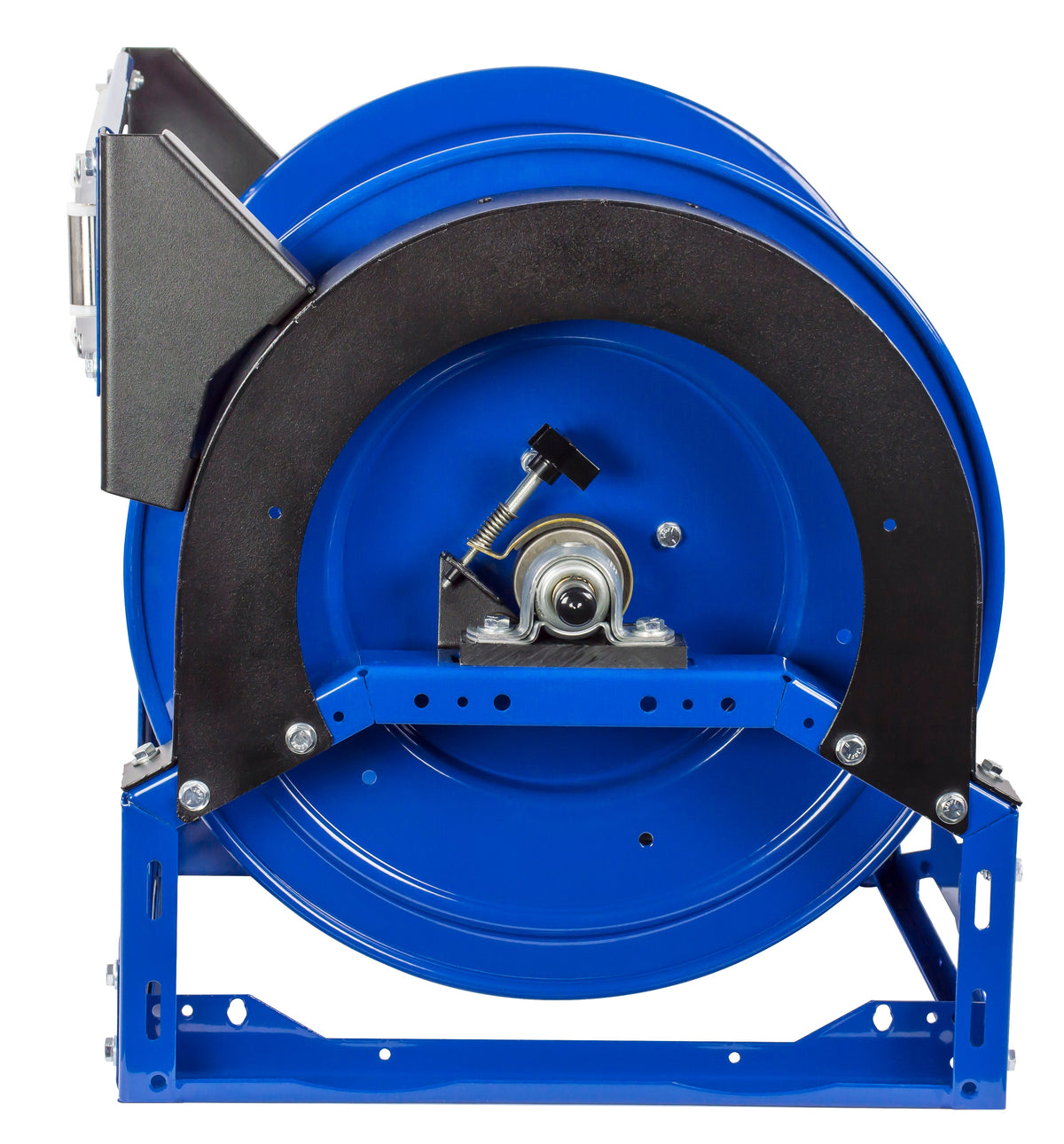

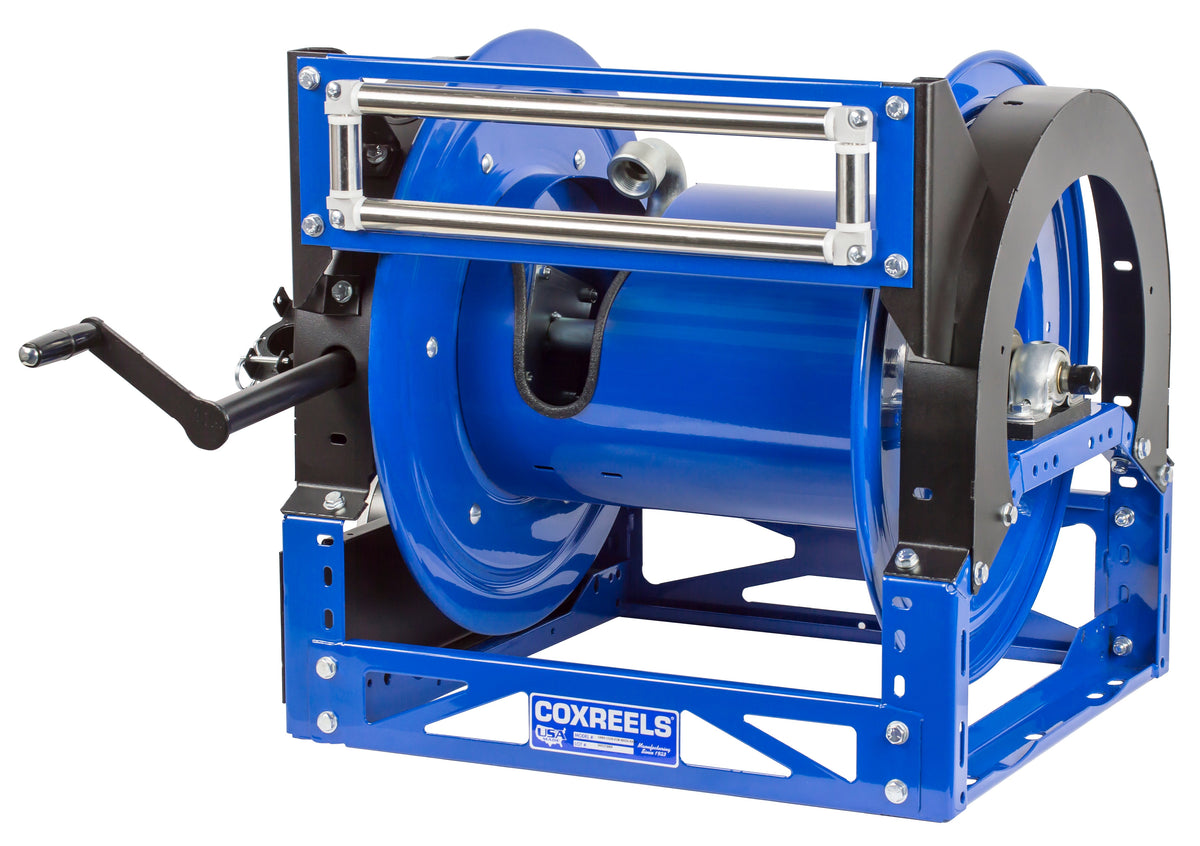

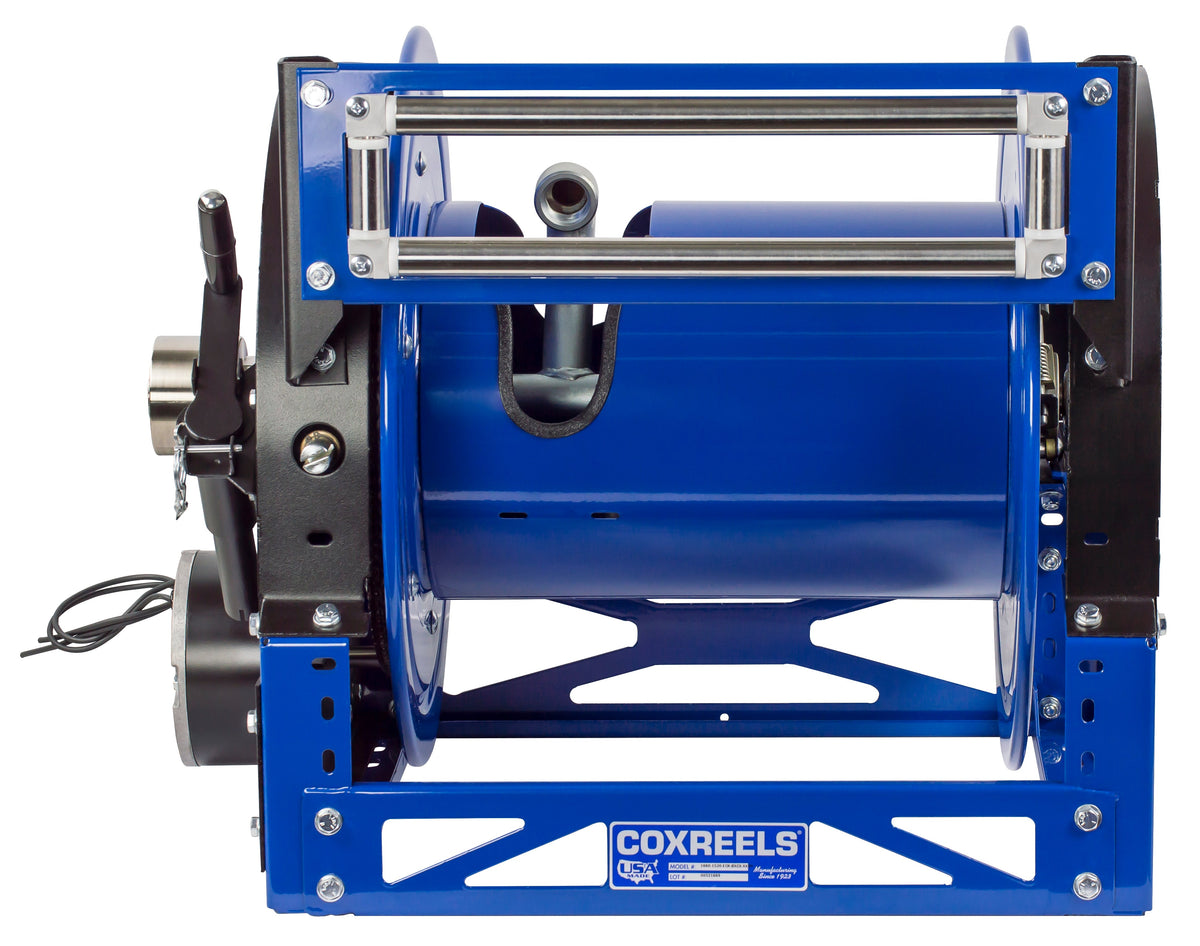

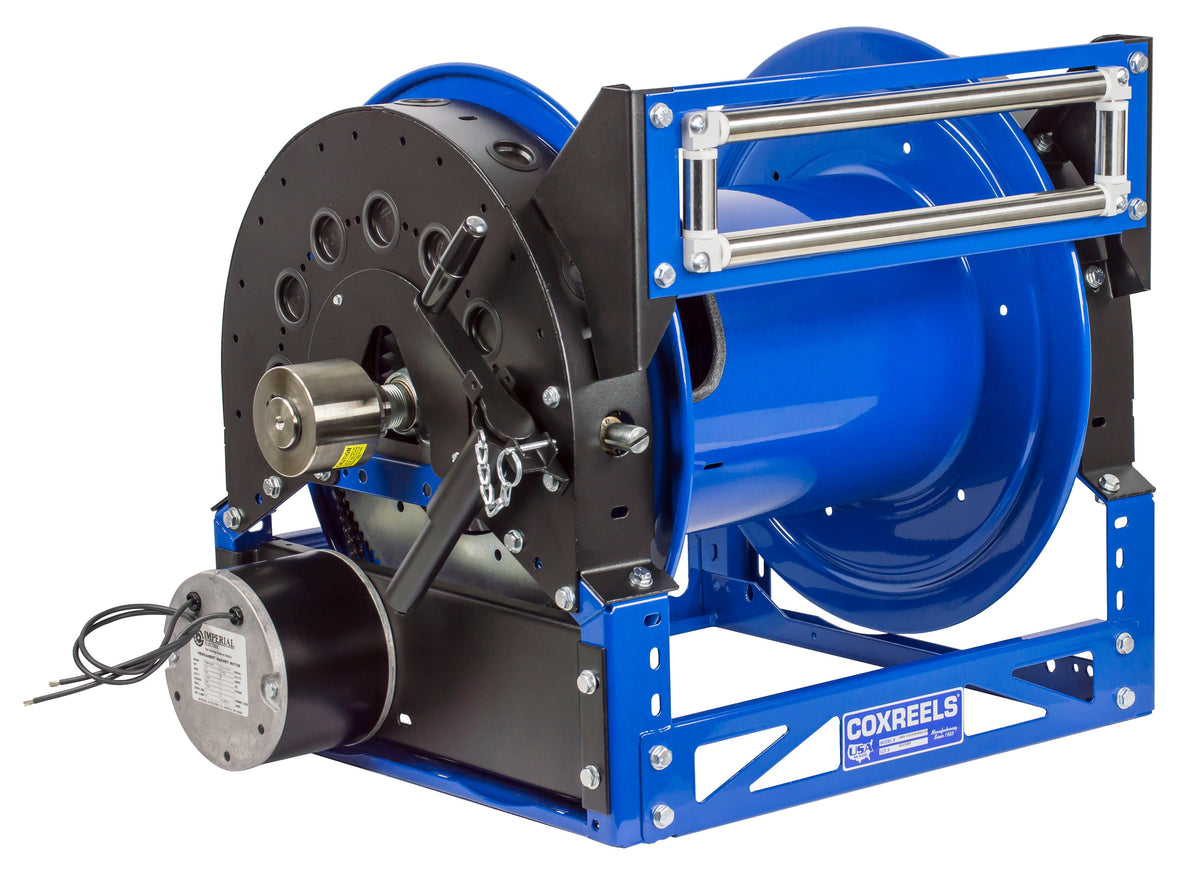

1680-1124 by Coxreels | 1600 Series | 1,500 PSI Hand Crank Hose Reel | 1-1/2" Hose ID | Steel | 50ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels 1600 Series Hand Crank Hose Reels
Steel hybrid-frame hand crank hose reels for water, washdown, pressure washing, fire booster hose and rescue, rated to 4,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Water
- Washdown
- Pressure Washing
- Fire Booster Hose
- Rescue
- High-Flow Watering
- Chemical Fluid Transfer
- Bulk Liquid Handling
2
What are the key specifications?
Construction
Steel, hybrid-frame
Swivel
Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Ø0.5" mounting holes
3
What are the main product features?
- Swivel — Nickel plated steel 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- Hybrid Frame — Sturdy one piece, all CNC robotically welded 12 ga steel "A" frame base, not bolted, for superior reel structure. With the strength of an "A" frame and the versitility of the a Box frame, the hybrid frame offers vertical sides for mounting and many optional features.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| 1660-0820 | 1" | 50 ft | 4,000 | 8" | 20" | 23.875 × 21.75 × 20.25 |
| 1660-0824 | 1" | 75 ft | 4,000 | 8" | 24" | 23.875 × 25.25 × 24 |
| 1660-0924 | 1" | 100 ft | 4,000 | 9.5" | 24" | 23.375 × 25.25 × 24 |
| 1660-1124 | 1" | 100 ft | 3,000 | 11.5" | 24" | 27.375 × 25.25 × 24 |
| 1660-1324 | 1" | 150 ft | 4,000 | 13.5" | 24" | 20.5 × 25.25 × 24 |
| 1660-1324-C | 1" | 150 ft | 4,000 | 13.5" | 24" | 20.5 × 25.25 × 24 |
| 1660-1520 | 1" | 100 ft | 4,000 | 15.5" | 20" | 31.375 × 21.75 × 20.25 |
| 1660-1528 | 1" | 250 ft | 3,000 | 15.5" | 28" | 31.375 × 29.25 × 28 |
| 1660-1528-C | 1" | 250 ft | 4,000 | 15.5" | 28" | 31.375 × 29.25 × 28 |
| 1660-2020 | 1" | 130 ft | 4,000 | 20" | 20" | 35.875 × 21.75 × 20.25 |
| 1660-2024 | 1" | 200 ft | 3,000 | 20" | 24" | 35.375 × 25.25 × 24 |
| 1660-2028 | 1" | 350 ft | 3,000 | 20" | 28" | 35.375 × 29.25 × 28 |
| 1660-2220-C | 1" | 165 ft | 4,000 | 22" | 20" | 37.875 × 21.75 × 20.25 |
| 1660-2224 | 1" | 225 ft | 4,000 | 22" | 24" | 37.875 × 25.25 × 24 |
| 1660-2228-C | 1" | 400 ft | 4,000 | 22" | 28" | 37.875 × 29.25 × 28 |
| 1660-2424 | 1" | 250 ft | 4,000 | 24" | 24" | 39.875 × 25.25 × 24 |
| 1660-2824 | 1" | 300 ft | 4,000 | 28" | 24" | 43.875 × 25.25 × 24 |
| 1660-3320 | 1" | 250 ft | 4,000 | 33" | 20" | 48.875 × 21.75 × 20 |
| 1660-3324 | 1" | 350 ft | 4,000 | 33" | 24" | 48.875 × 25.25 × 24 |
| 1660-3328 | 1" | 625 ft | 4,000 | 33" | 28" | 40 × 29.25 × 28 |
| 1680-0820 | 1-1/2" | 20 ft | 1,500 | 8" | 20" | 20.375 × 21.75 × 20 |
| 1680-0828 | 1-1/2" | 50 ft | 1,500 | 8" | 28" | 20.375 × 29.25 × 28 |
| 1680-0928 | 1-1/2" | 70 ft | 1,500 | 9.5" | 28" | 22.875 × 29.25 × 28 |
| 1680-1120 | 1-1/2" | 35 ft | 1,500 | 11.5" | 20" | 24.875 × 21.75 × 20 |
| 1680-1124 | 1-1/2" | 50 ft | 1,500 | 11.5" | 20" | 24.875 × 25.25 × 24 |
| 1680-1328 | 1-1/2" | 100 ft | 1,500 | 13.5" | 28" | 26.875 × 29.25 × 28 |
| 1680-1328-C | 1-1/2" | 100 ft | 1,500 | 13.5" | 28" | 26.875 × 29.25 × 28 |
| 1680-1520 | 1-1/2" | 50 ft | 1,500 | 15.5" | 20" | 28.875 × 21.75 × 20 |
| 1680-1520-C | 1-1/2" | 50 ft | 1,500 | 15.5" | 20" | 28.875 × 21.75 × 20 |
| 1680-1524-C | 1-1/2" | 85 ft | 1,500 | 15.5" | 24" | 28.875 × 25.25 × 24 |
| 1680-2024 | 1-1/2" | 100 ft | 1,500 | 20" | 24" | 35.375 × 25.25 × 24 |
| 1680-2028 | 1-1/2" | 150 ft | 1,500 | 20" | 28" | 35.375 × 29.25 × 28 |
| 1680-2220-C | 1-1/2" | 70 ft | 1,500 | 22" | 20" | 35.375 × 21.75 × 20 |
| 1680-2424 | 1-1/2" | 140 ft | 1,500 | 24" | 24" | 37.375 × 25.25 × 24 |
| 1680-2428 | 1-1/2" | 200 ft | 1,500 | 24" | 28" | 37.375 × 29.25 × 28 |
| 1680-2828-C | 1-1/2" | 225 ft | 1,500 | 28" | 28" | 41.375 × 29.25 × 28 |
| 1680-3324 | 1-1/2" | 195 ft | 1,500 | 33" | 24" | 46.375 × 25.25 × 24 |
| 1680-3328 | 1-1/2" | 275 ft | 1,500 | 33" | 28" | 46.375 × 29.25 × 28 |
| 1680-3328-C | 1-1/2" | 275 ft | 1,500 | 33" | 28" | 46.375 × 29.25 × 28 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 16933 | 3-way roller bracket, universal roller 3-way | Disc diameter 20" except 1680-1124 |
| 16934 | 3-way roller bracket, universal roller 3-way | Disc diameter 24", plus 1680-1124 |
| 16935 | 3-way roller bracket, universal roller 3-way | Disc diameter 28" |
| 16901 | 4-way roller bracket, top rewind | Disc diameter 20" except 1680-1124 |
| 16902 | 4-way roller bracket, top rewind | Disc diameter 24", plus 1680-1124 |
| 16903 | 4-way roller bracket, top rewind | Disc diameter 28" |
| 16930 | 4-way roller bracket, universal roller 4-way | Disc diameter 20" except 1680-1124 |
| 16931 | 4-way roller bracket, universal roller 4-way | Disc diameter 24", plus 1680-1124 |
| 16932 | 4-way roller bracket, universal roller 4-way | Disc diameter 28" |
| Upgrades and service parts | ||
| 16702 | 3-Way Pin Lock Kit | Every model |
| 16704 | Crank Handle Holster | Every model |
| 16705 | Heavy Duty Band Brake | Every model |
| HSRK-100 | Hose Strain Relief Kit | Max PSI 3,000 |
| HSRK-150 | Hose Strain Relief Kit | Every model except 1660-1124/1528/2024/2028 |
| 17250-2 | Idler Gear (1:2 Ratio) | Every model |
| 17250-3 | Idler Gear (1:3 Ratio) | Every model |
| 17250-4 | Idler Gear (1:4 Ratio) | Every model |
| 16620 | Lower Chain Guards | Capacity 35 ft |
| 16624 | Lower Chain Guards | Every model except 1660-1528/2028; 1680-1120 |
| 16628 | Lower Chain Guards | 1660-1528/2028 |
| 20843 | Spring Loaded Lock Pin | Every model |
| 16400 | Universal Bracket Kit | Every model |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BUXX | Standard plumbing & 90° ball bearing swivel with Aflas |
| -BWXX | Standard plumbing & 90° ball bearing swivel with Viton |
| -BRXX | Stainless steel plumbing & SS 90° ball bearing swivel with Aflas (304SS) |
| -BSXX | Stainless steel plumbing & SS 90° ball bearing swivel with Viton (304SS) |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BXCX / -BXCA / -BXCA / -BXCX | Top payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout hand crank, swivel left, crank right |
| -BXXA | Top payout hand crank, swivel right, crank left |
| -BXAI | Bottom payout hand crank, swivel left, crank right |
| -BXAF | Bottom payout hand crank, swivel right, crank left |
| -BXXX | Top payout bevel crank, swivel left, crank right |
| -BXXA | Top payout bevel crank, swivel right, crank left |
| -BXAI | Bottom payout bevel crank, swivel left, crank right |
| -BXAF | Bottom payout bevel crank, swivel right, crank left |
7
Where can I find product documents?
1660-XX24 Spec Sheet
Dimension drawing, capacities and the part-number key for 1660 models with a 24" disc.
1660-XX28 Spec Sheet
Dimension drawing, capacities and the part-number key for 1660 models with a 28" disc.
1680-XX20 Spec Sheet
Dimension drawing, capacities and the part-number key for 1680 models with a 20" disc.
1680-XX24 Spec Sheet
Dimension drawing, capacities and the part-number key for 1680 models with a 24" disc.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
