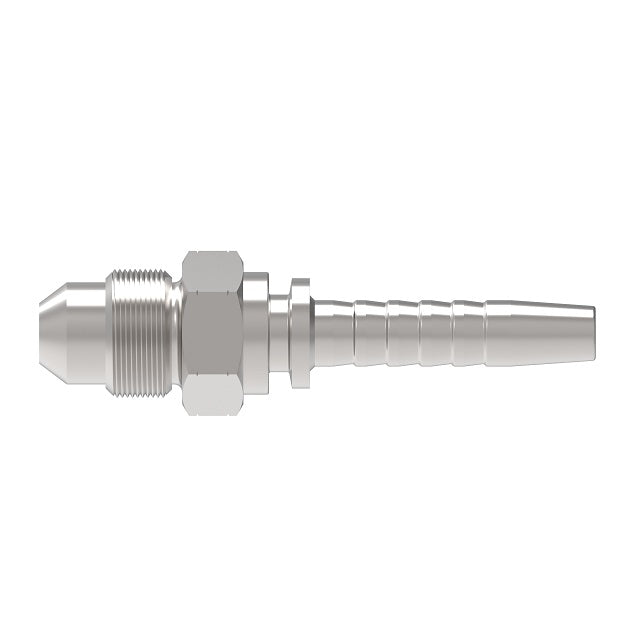

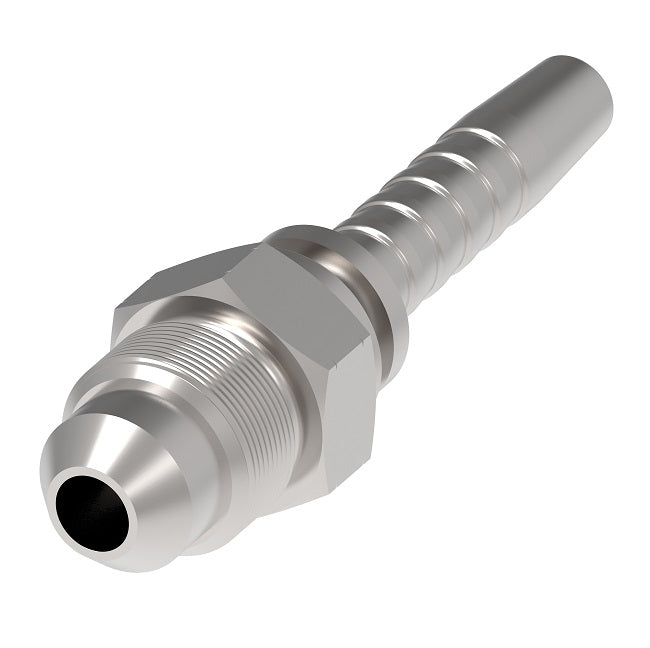

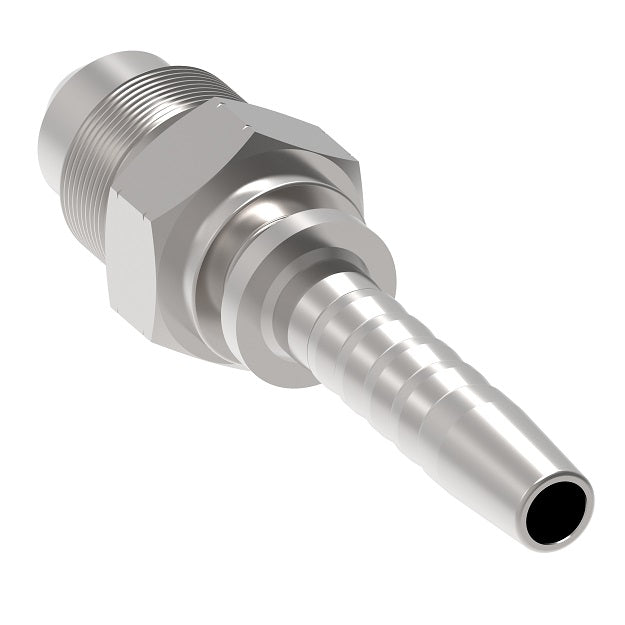

16711-12-10ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -12 Male 37° JIC x -10 Hose Barb | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Features: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | Hex 2 |
| 16711-06-04ZF | -06 | 9/16-18 | 6 | -04 | 2.15" | 1.04" | 0.16" | 17mm |
| 16711-08-06ZF | -08 | 3/4-16 | 10 | -06 | 2.42" | 1.24" | 0.28" | 22mm |
| 16711-08-08ZF | -08 | 3/4-16 | 12 | -08 | 2.50" | 1.26" | 0.39" | 22mm |
| 16711-10-08ZF | -10 | 7/8-14 | 12 | -08 | 2.58" | 1.34" | 0.39" | 24mm |
| 16711-10-10ZF | -10 | 7/8-14 | 16 | -10 | 2.72" | 1.38" | 0.47" | 24mm |
| 16711-12-10ZF | -12 | 11/16-12 | 16 | -10 | 2.89" | 1.56" | 0.47" | 30mm |
| 16711-16-12ZF | -16 | 1-5/16-12 | 20 | -12 | 3.21" | 1.69" | 0.59" | 36mm |
Additional Product Data:
Brand:
Ends Configuration:
Material(s):
Compatible Series:
