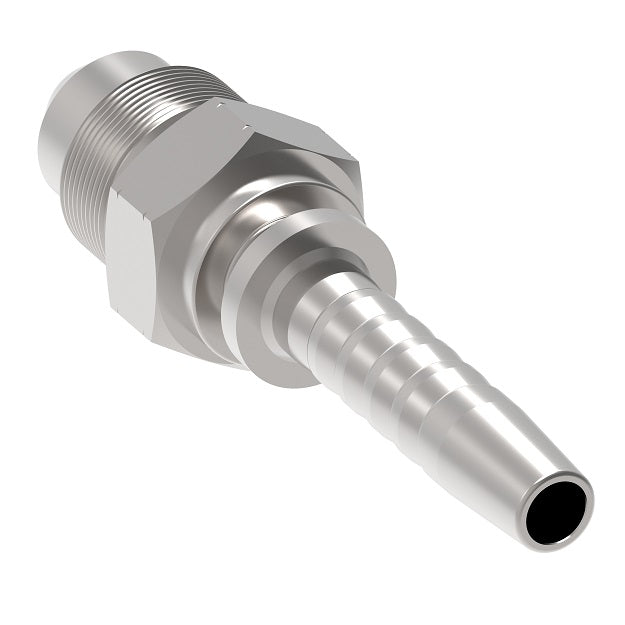

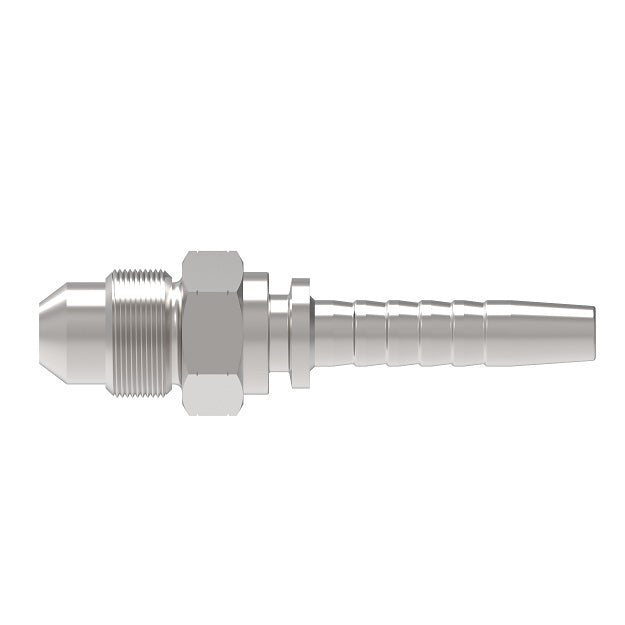

16711-10-08ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel
16711-10-08ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel
16711-10-08ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel

16711-10-08ZF Winner by Danfoss | Male 37° JIC 2-Piece Hose Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel

Sale price$15.96

Winner by Danfoss
Male 37° JIC 2-Piece Hose Crimp Fitting - Male 37° JIC x Hose Barb - Straight
Buy More, Save More!
Quantity Price Each
10–39 $15.00
40–79 $13.57
80+ $11.97
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Winner
Ends Configuration:
  • 3/4in Male JIC
  • 1/2in Hose Barb
Material(s):
  • Steel
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 2
16711-06-04ZF -06 9/16-18 6 -04 2.15" 1.04" 0.16" 17mm
16711-08-06ZF -08 3/4-16 10 -06 2.42" 1.24" 0.28" 22mm
16711-08-08ZF -08 3/4-16 12 -08 2.50" 1.26" 0.39" 22mm
16711-10-08ZF -10 7/8-14 12 -08 2.58" 1.34" 0.39" 24mm
16711-10-10ZF -10 7/8-14 16 -10 2.72" 1.38" 0.47" 24mm
16711-12-10ZF -12 11/16-12 16 -10 2.89" 1.56" 0.47" 30mm
16711-16-12ZF -16 1-5/16-12 20 -12 3.21" 1.69" 0.59" 36mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
