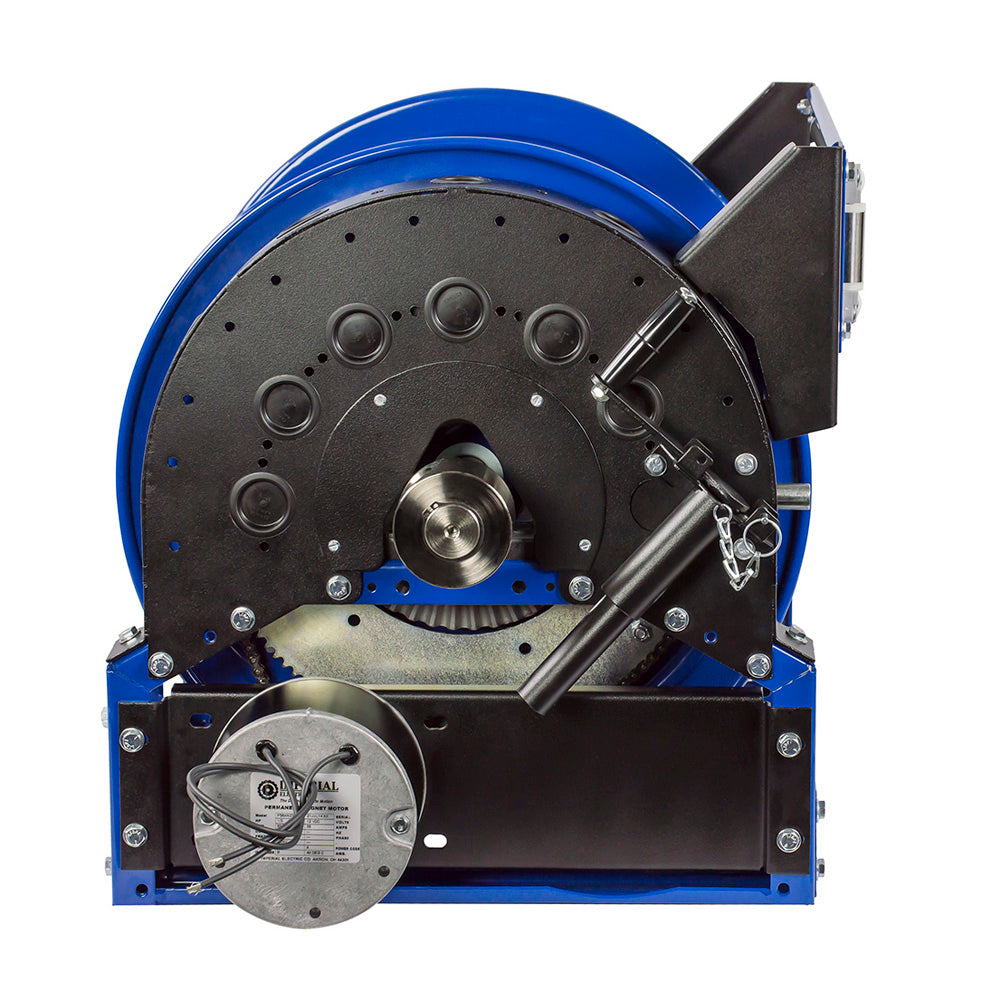

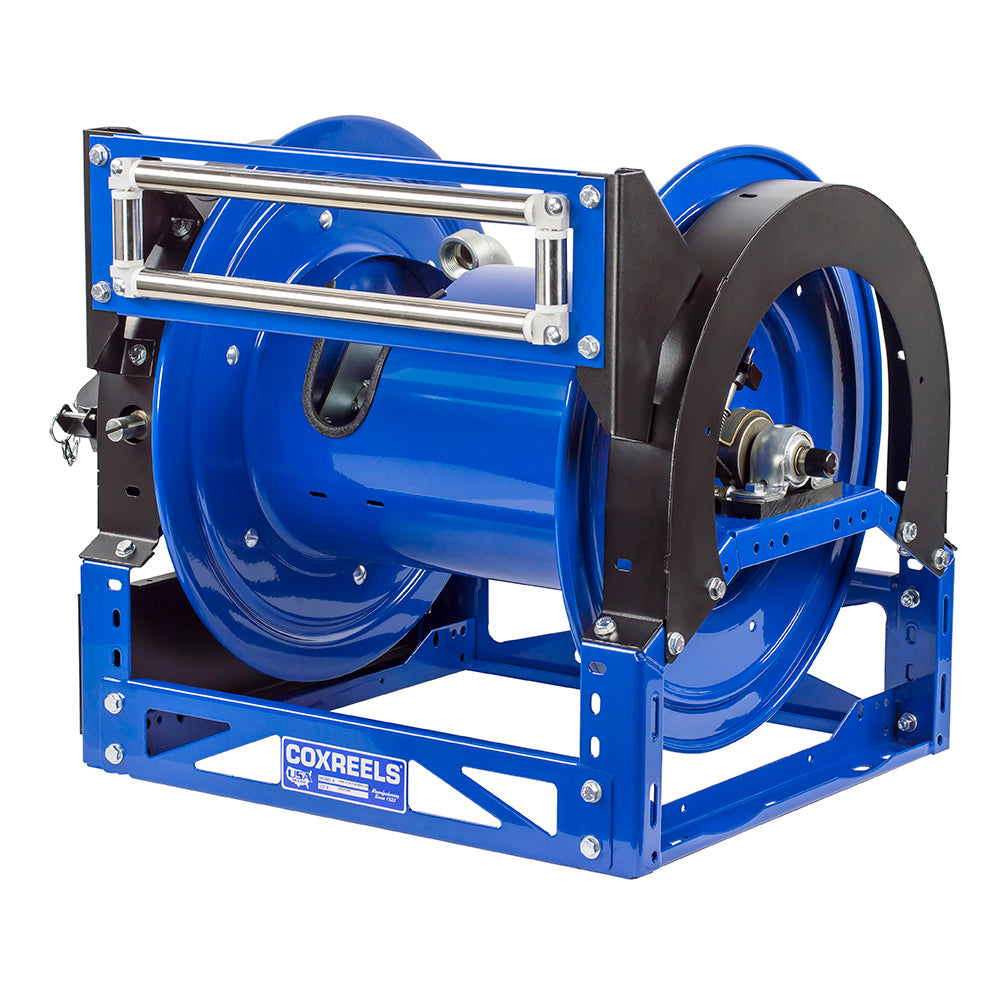

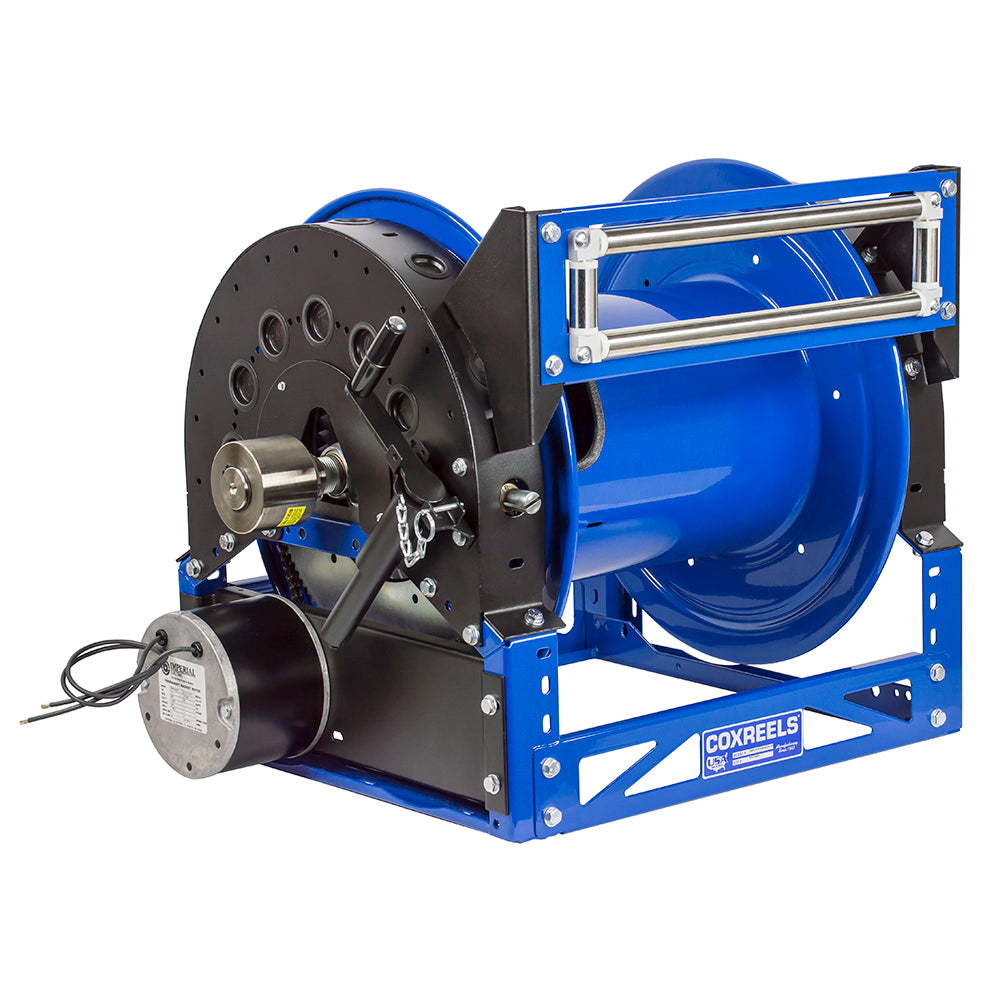

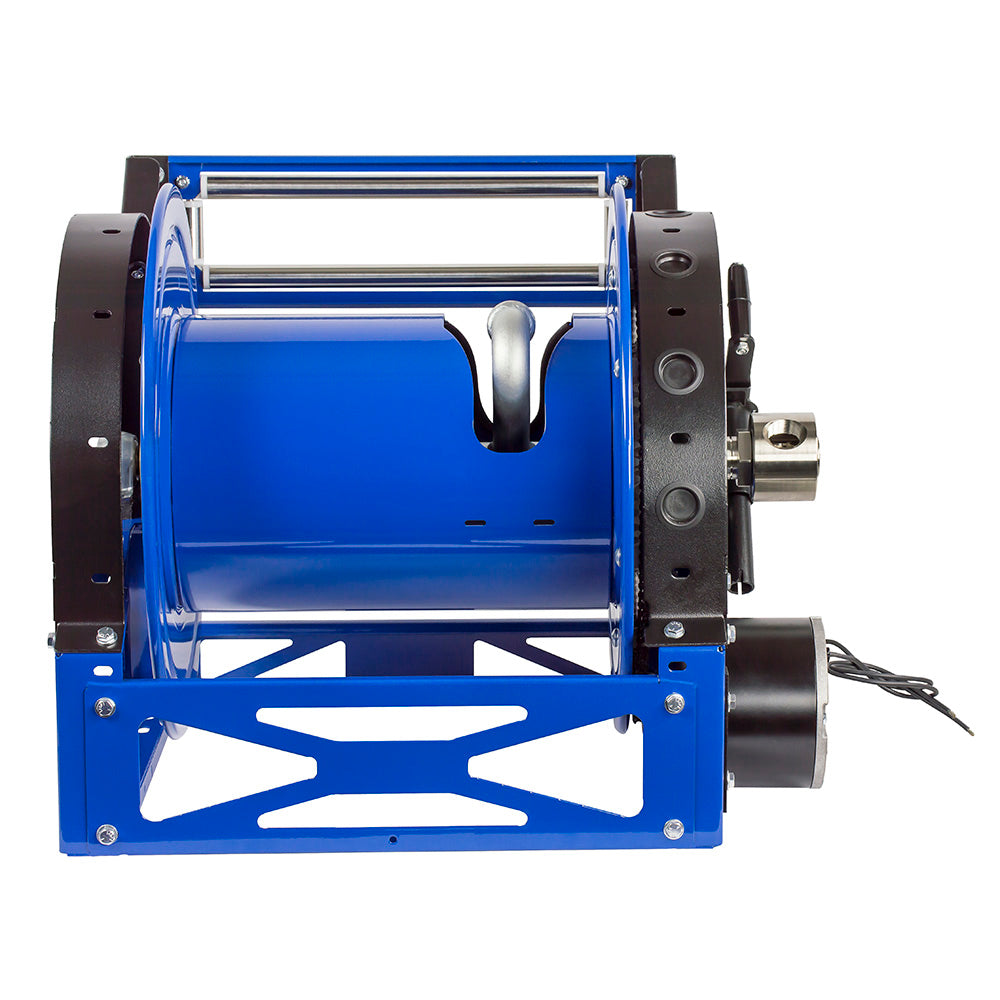

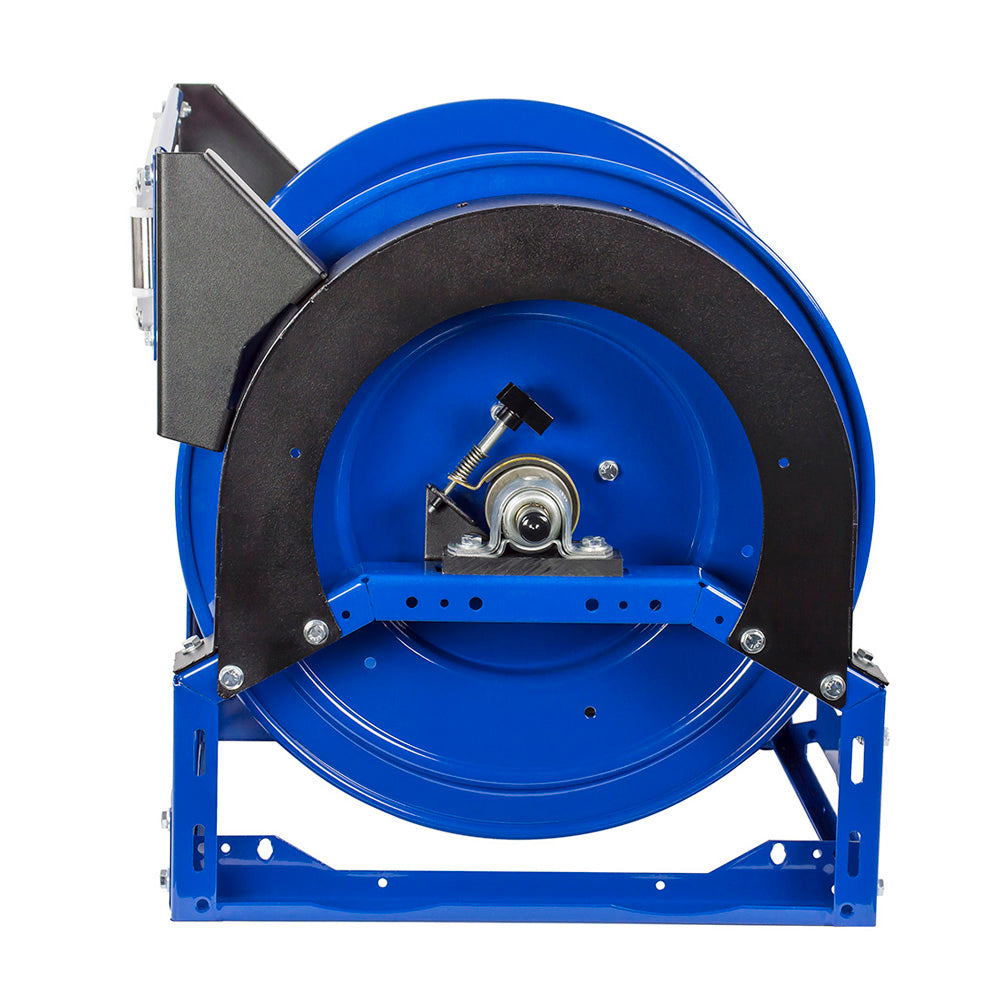

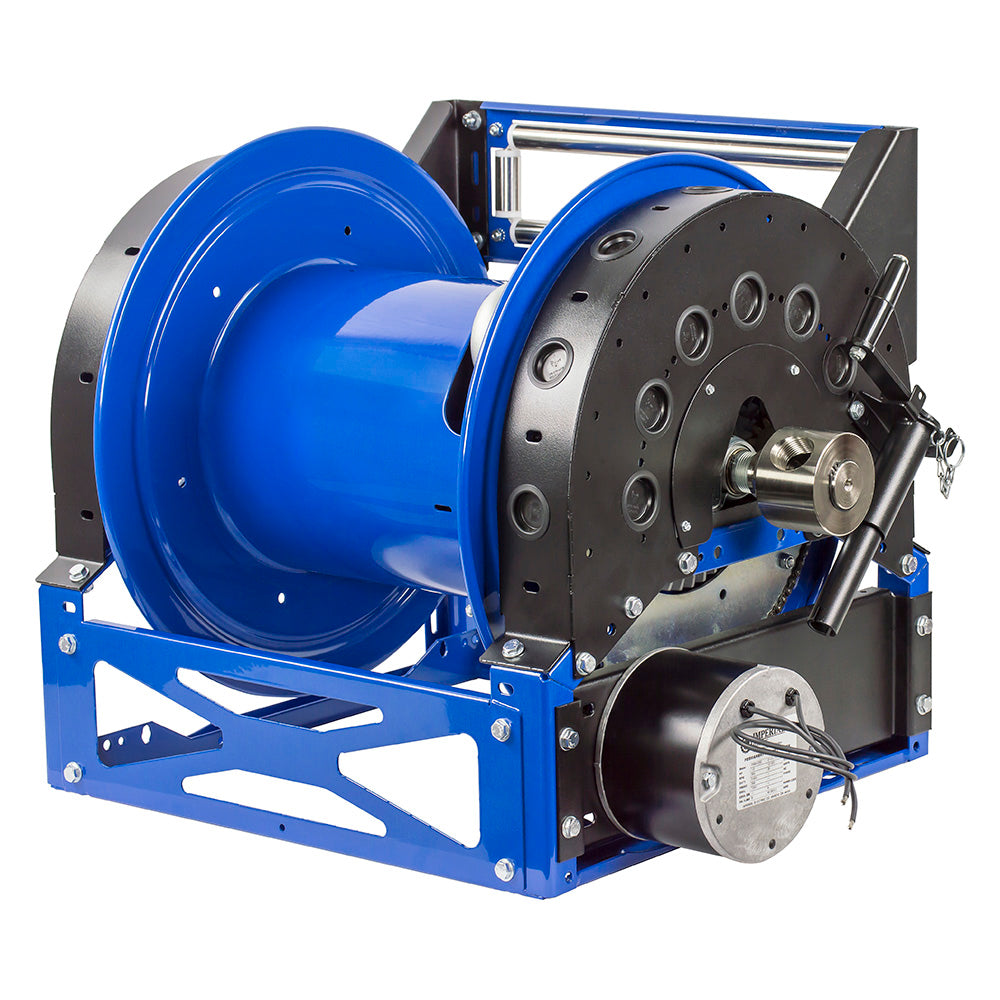

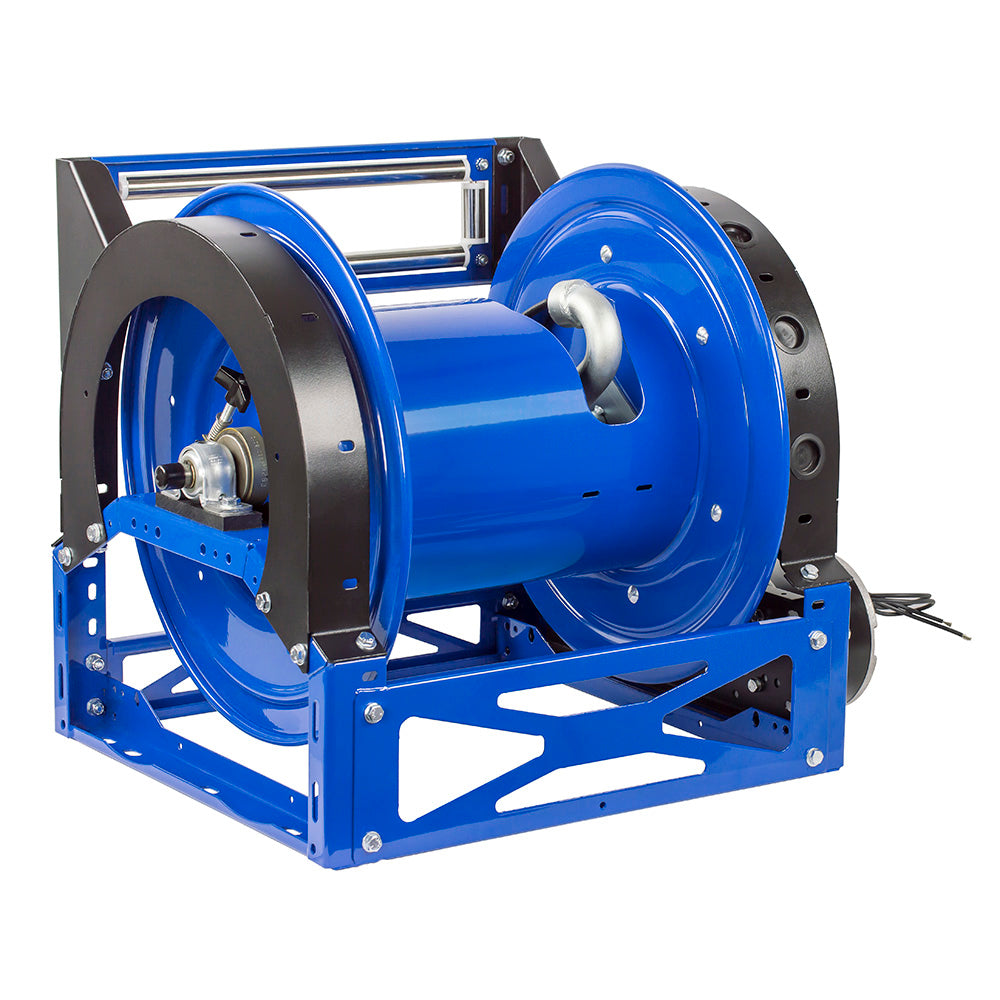

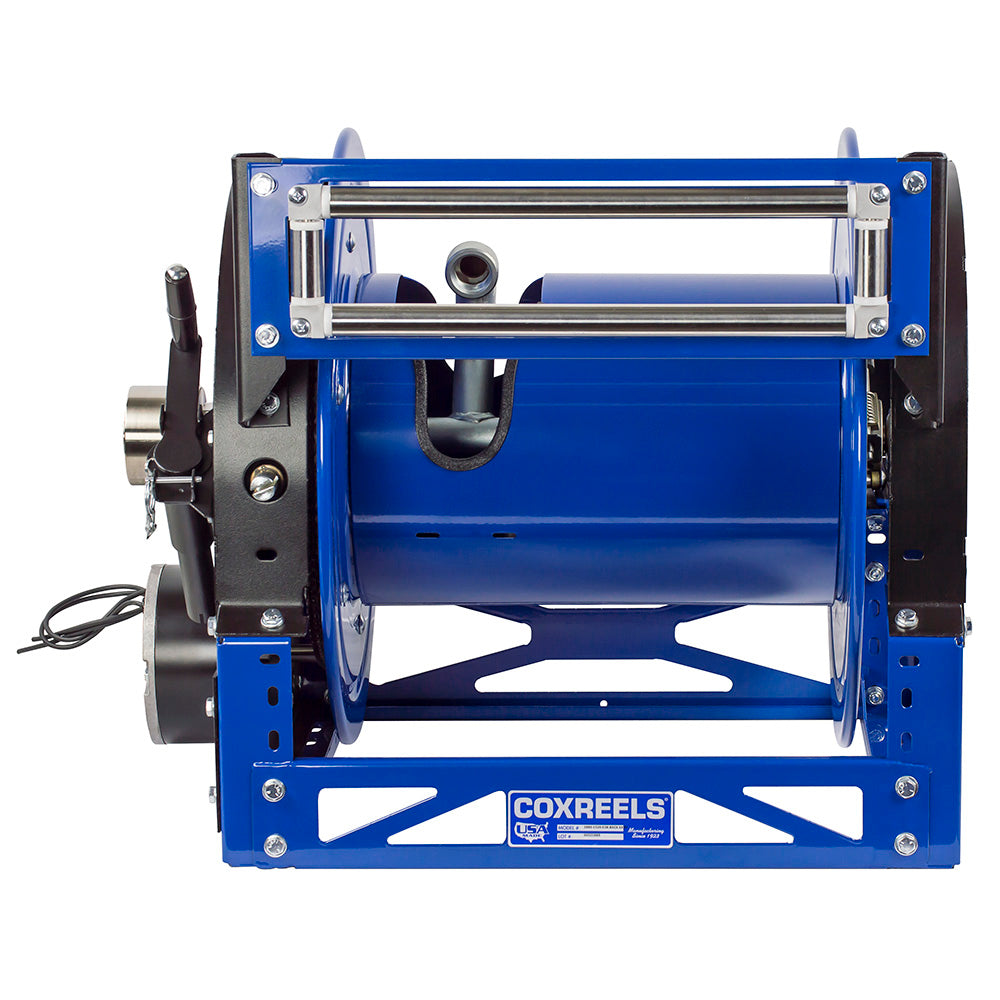

1660-3320-E by Coxreels | 1600 Series | 4,000 PSI Motor Driven Hose Reel | 12V DC 1/3 HP Electric Motor | 1" Hose ID, 1" FNPT Inlet | Steel | 250ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels 1600 Series Motor Driven Hose Reels
Steel hybrid-frame motor driven hose reels for water, washdown, pressure washing, fire booster hose and rescue, rated to 4,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Water
- Washdown
- Pressure Washing
- Fire Booster Hose
- Rescue
- High-Flow Watering
- Chemical Fluid Transfer
- Bulk Liquid Handling
2
What are the key specifications?
Construction
Steel, hybrid-frame
Swivel
Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Ø0.5" mounting holes
3
What are the main product features?
- Swivel — Nickel plated steel 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- Hybrid Frame — Sturdy one piece, all CNC robotically welded 12 ga steel "A" frame base, not bolted, for superior reel structure. With the strength of an "A" frame and the versitility of the a Box frame, the hybrid frame offers vertical sides for mounting and many optional features.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Base Model | Hose I.D. | Capacity | Max PSI | Drum Width | Disc Diameter | Available Motor Suffixes |
|---|---|---|---|---|---|---|
| 1660-0820 | 1" | 50 ft | 4,000 | 8" | 20" | -E -EB -EF |
| 1660-0824 | 1" | 75 ft | 4,000 | 8" | 24" | -E -EA |
| 1660-0828 | 1" | 130 ft | 4,000 | 8" | 28" | -A -E -EA -ED |
| 1660-0924 | 1" | 100 ft | 4,000 | 9.5" | 24" | -A -E -ED |
| 1660-0928 | 1" | 165 ft | 4,000 | 9.5" | 28" | -A |
| 1660-1120 | 1" | 75 ft | 4,000 | 11.5" | 20" | -EA -EF |
| 1660-1124 | 1" | 100 ft | 3,000 | 11.5" | 24" | -E -ED |
| 1660-1128 | 1" | 130 ft | 4,000 | 11.5" | 28" | -EA -ED |
| 1660-1324 | 1" | 150 ft | 4,000 | 13.5" | 24" | -E -AB |
| 1660-1328 | 1" | 225 ft | 4,000 | 13.5" | 28" | -AB -ED |
| 1660-1520 | 1" | 100 ft | 4,000 | 15.5" | 20" | -E -EA -ED |
| 1660-1524 | 1" | 165 ft | 4,000 | 15.5" | 24" | -E |
| 1660-1528 | 1" | 250 ft | 4,000 | 15.5" | 28" | -E |
| 1660-2020 | 1" | 130 ft | 4,000 | 20" | 20" | -E -EA |
| 1660-2024 | 1" | 200 ft | 3,000 | 20" | 24" | -E -ED |
| 1660-2028 | 1" | 350 ft | 4,000 | 20" | 28" | -EA |
| 1660-2220 | 1" | 165 ft | 4,000 | 22" | 20" | -E -EA |
| 1660-2224 | 1" | 225 ft | 4,000 | 22" | 24" | -E |
| 1660-2228 | 1" | 400 ft | 4,000 | 22" | 28" | -E -H -EA -ED |
| 1660-2424 | 1" | 250 ft | 4,000 | 24" | 24" | -EA |
| 1660-2428 | 1" | 450 ft | 4,000 | 24" | 24" | -EA -EJ |
| 1660-2820 | 1" | 200 ft | 4,000 | 28" | 20" | -E -EA -EF |
| 1660-2824 | 1" | 300 ft | 4,000 | 28" | 24" | -E -EA -ED |
| 1660-2828 | 1" | 535 ft | 4,000 | 28" | 28" | -E |
| 1660-3320 | 1" | 250 ft | 4,000 | 33" | 20" | -E -EA |
| 1660-3324 | 1" | 350 ft | 4,000 | 33" | 24" | -E -H -EA -ED |
| 1660-3328 | 1" | 625 ft | 4,000 | 33" | 28" | -E -H -EA -ED |
| 1680-0824 | 1-1/2" | 35 ft | 1,500 | 8" | 24" | -ED |
| 1680-0828 | 1-1/2" | 50 ft | 1,500 | 8" | 28" | -A -E |
| 1680-0928 | 1-1/2" | 70 ft | 1,500 | 9.5" | 28" | -E -ED |
| 1680-1120 | 1-1/2" | 35 ft | 1,500 | 11.5" | 20" | -EA -ED |
| 1680-1124 | 1-1/2" | 50 ft | 1,500 | 11.5" | 20" | -A -E -ED |
| 1680-1128 | 1-1/2" | 85 ft | 1,500 | 11.5" | 28" | -E -EJ |
| 1680-1324 | 1-1/2" | 70 ft | 1,500 | 13.5" | 24" | -EF |
| 1680-1328 | 1-1/2" | 100 ft | 1,500 | 13.5" | 28" | -E -H -EA |
| 1680-1520 | 1-1/2" | 50 ft | 1,500 | 15.5" | 20" | -A -E -EA -EB -ED |
| 1680-1524 | 1-1/2" | 85 ft | 1,500 | 15.5" | 24" | -E -ED |
| 1680-2020 | 1-1/2" | 65 ft | 1,500 | 20" | 20" | -ED |
| 1680-2024 | 1-1/2" | 100 ft | 1,500 | 20" | 24" | -E -AB -EA -ED |
| 1680-2028 | 1-1/2" | 150 ft | 1,500 | 20" | 28" | -E |
| 1680-2220 | 1-1/2" | 70 ft | 1,500 | 22" | 20" | -E |
| 1680-2224 | 1-1/2" | 125 ft | 1,500 | 22" | 24" | -EA -ED |
| 1680-2424 | 1-1/2" | 140 ft | 1,500 | 24" | 24" | -E |
| 1680-2428 | 1-1/2" | 200 ft | 1,500 | 24" | 28" | -EA |
| 1680-2824 | 1-1/2" | 150 ft | 1,500 | 28" | 24" | -EA -ED |
| 1680-3324 | 1-1/2" | 195 ft | 1,500 | 33" | 24" | -E -EA -ED |
| 1680-3328 | 1-1/2" | 275 ft | 1,500 | 33" | 28" | -EA -ED |
Part number = base model + motor suffix (e.g. 1660-1124-A). Suffix key:
| Suffix | Motor |
|---|---|
| -A | Air motor (#4 Gast) |
| -E | 12V DC, 1/3 HP electric motor |
| -H | Hydraulic motor |
| -AB | Air motor (#6 Gast) |
| -EA | 115V AC, 1/2 HP, explosion proof electric motor |
| -EB | 24V DC, 1/2 HP, explosion proof electric motor |
| -ED | 12V DC, 1/2 HP, explosion proof electric motor |
| -EF | 24V DC, 1/3 HP electric motor |
| -EJ | 230V AC, 1/2 HP, explosion proof electric motor |
5
Which accessories are available?
Roller guides — by disc diameter:
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts | ||
| 16703 | 3-Way Brake | Every model |
| 16702 | 3-Way Pin Lock Kit | Every model |
| 16704 | Crank Handle Holster | Every model |
| 16602-122 | Gear Guards (for motor driven only) | Disc diameter 20" |
| 16602-138 | Gear Guards (for motor driven only) | Disc diameter 24" |
| 16602-180 | Gear Guards (for motor driven only) | Disc diameter 28" |
| 16705 | Heavy Duty Band Brake | Every model |
| HSRK-100 | Hose Strain Relief Kit | Disc diameter 24" |
| HSRK-150 | Hose Strain Relief Kit | Disc diameter 20", 28" |
| 17250-2 | Idler Gear (1:2 Ratio) | Every model |
| 17250-3 | Idler Gear (1:3 Ratio) | Every model |
| 17250-4 | Idler Gear (1:4 Ratio) | Every model |
| 16620 | Lower Chain Guards | Disc diameter 20" |
| 16624 | Lower Chain Guards | Disc diameter 24" |
| 16628 | Lower Chain Guards | Disc diameter 28" |
| 20843 | Spring Loaded Lock Pin | Every model |
| 16400 | Universal Bracket Kit | Every model |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | -EA, -EJ models |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | -E, -ED models |
| 20878 | Circuit Breaker | -E, -ED models |
| 15212 | Control Valve for No. 4 Gast Air Motor | -A models |
| 15212-1 | Control Valve for No. 6 Gast Air Motor | -AB models |
| 20882 | Explosion Proof Stationary Push Button Switch | -E models |
| 15210 | General Purpose Reversing Switch | -EA, -EJ models |
| 20876 | Sealed Push Button Switch | -E, -EA, -EB, -ED, -EF, -EJ models |
| 20877 | Solenoid Relay | -E, -ED models |
| 8281 | Switch Box | -E, -ED models |
| 20883 | Vapor Proof Junction Box | -E, -EA, -EB, -ED, -EF, -EJ models |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BUXX | Standard plumbing & 90° ball bearing swivel with Aflas |
| -BWXX | Standard plumbing & 90° ball bearing swivel with Viton |
| -BRXX | Stainless steel plumbing & SS 90° ball bearing swivel with Aflas (304SS) |
| -BSXX | Stainless steel plumbing & SS 90° ball bearing swivel with Viton (304SS) |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BXCX / -BXCD / -BXCA / -BXCB | 1600 Series top payout, on reel: left rear / left front / right rear / right front |
| Swivel and motor/crank position | |
| -BXXX / -BXXD | 1600 Series top payout motorized, swivel left: motor left rear / motor left front |
| -BXXA / -BXXA | 1600 Series top payout motorized, swivel right: motor right rear / motor right front |
| -BXAI / -BXAJ | 1600 Series bottom payout motorized, swivel left: motor left rear / motor left front |
| -BXAF / -BXAG | 1600 Series bottom payout motorized, swivel right: motor right rear / motor right front |
7
Where can I find product documents?
1660-XX24 Spec Sheet
Dimension drawing, capacities and the part-number key for 1660 models with a 24" disc.
1680-XX20 Spec Sheet
Dimension drawing, capacities and the part-number key for 1680 models with a 20" disc.
1680-XX24 Spec Sheet
Dimension drawing, capacities and the part-number key for 1680 models with a 24" disc.
1680-XX28 Spec Sheet
Dimension drawing, capacities and the part-number key for 1680 models with a 28" disc.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
