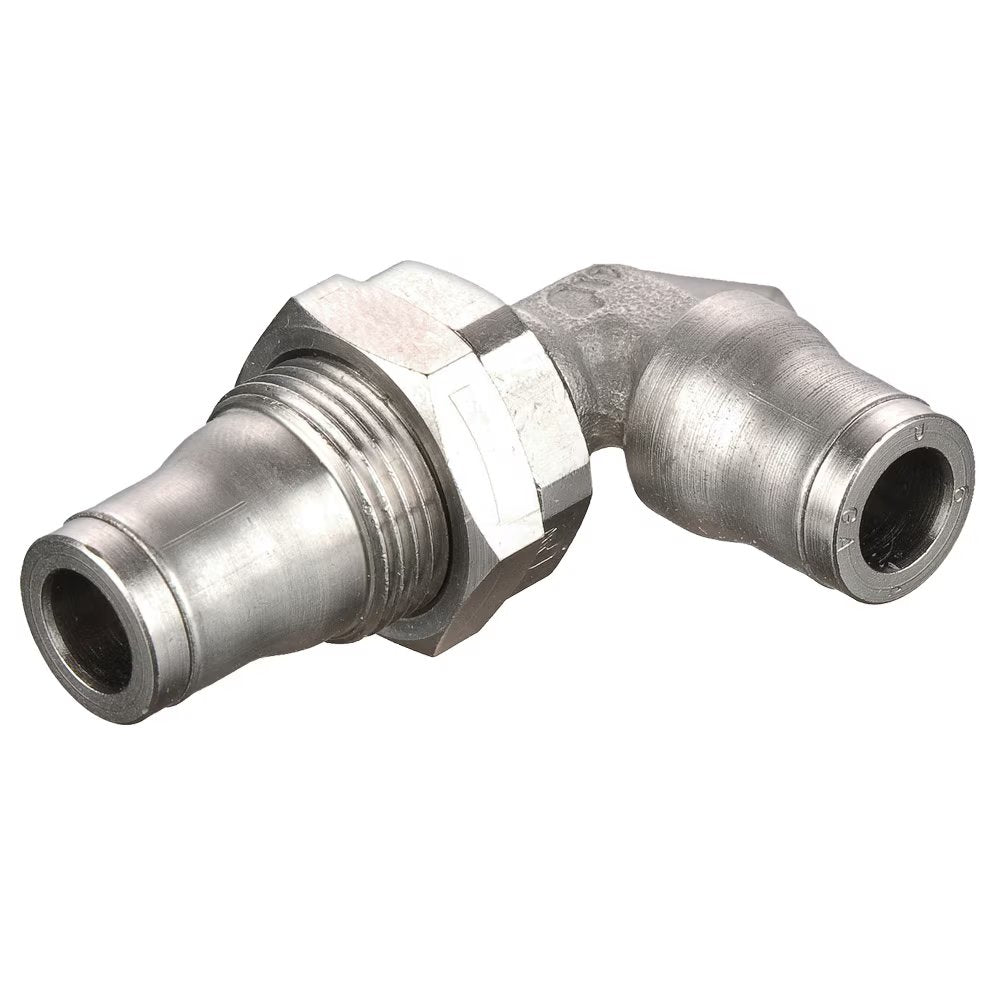

165PLMBH-14M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 14 mm Tube Size | 59.00 mm Length | 27 mm Height | 90° Elbow | Electroless Nickel-Plated Brass | Pack of 5
by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:165PLMBH Bulkhead Elbow Metric Tube
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $206.74 |
| 20–59 | $186.95 |
| 60+ | $164.96 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | F1 | F2 | H | L | T |
| 165PLMBH-4M | 4 mm | 13 mm | 14 mm | 35.00 mm | 18.00 mm | 12.50 mm |
| 165PLMBH-6M | 6 mm | 16 mm | 17 mm | 40.50 mm | 21.50 mm | 15.00 mm |
| 165PLMBH-8M | 8 mm | 18 mm | 19 mm | 44.00 mm | 23.50 mm | 17.00 mm |
| 165PLMBH-10M | 10 mm | 22 mm | 27 mm | 51.00 mm | 29.00 mm | 21.00 mm |
| 165PLMBH-12M | 12 mm | 24 mm | 24 mm | 55.00 mm | 31.00 mm | 23.00 mm |
| 165PLMBH-14M | 14 mm | 27 mm | 27 mm | 59.00 mm | 34.00 mm | 25.00 mm |
