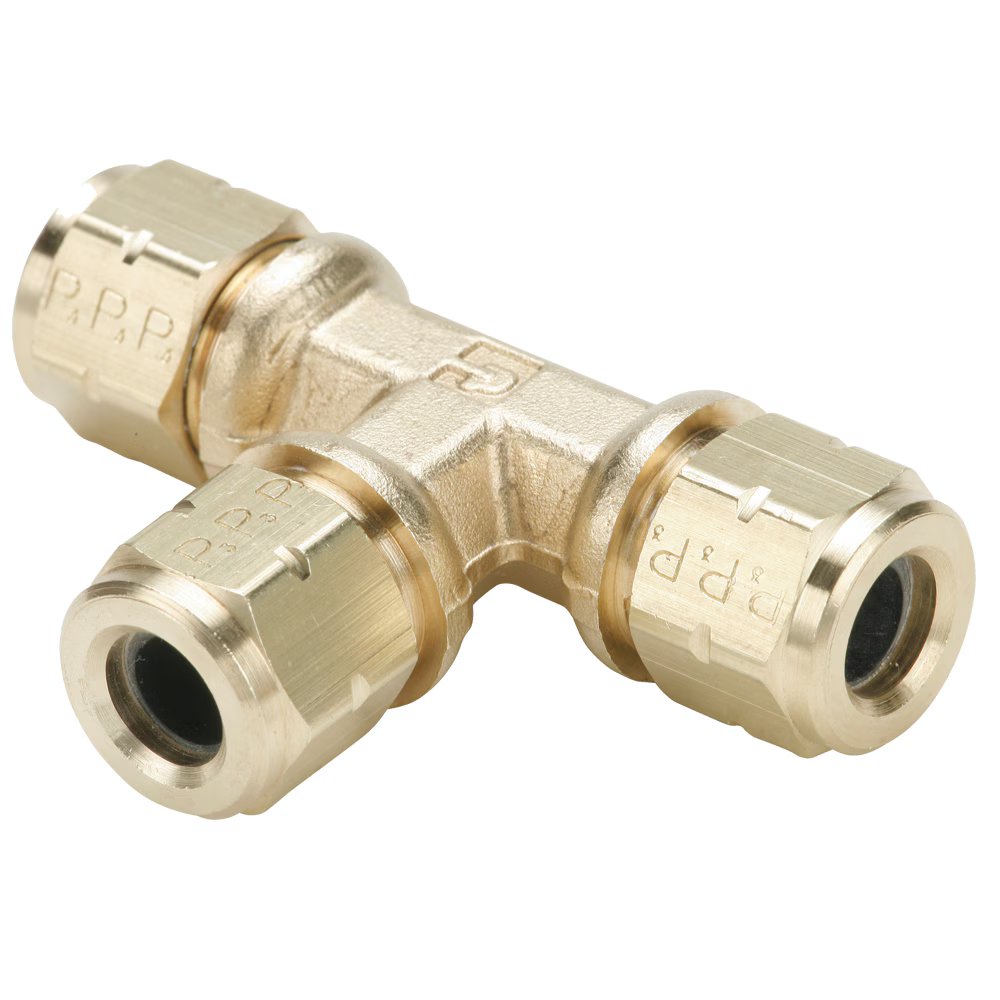

164VL-4 by Parker | Vibra-Lok Fittings | Union | 1/4" Tube Size | 1/2" Body Hex | 2.12" Length | Tee | Brass | Pack of 5

164VL-4 by Parker | Vibra-Lok Fittings | Union | 1/4" Tube Size | 1/2" Body Hex | 2.12" Length | Tee | Brass | Pack of 5

Sale price$144.05

by Parker Hannifin
Vibra-Lok Fittings:Union Tee 164VL

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $135.41
20–59 $122.44
60+ $108.04
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Vibra-Lok
Series:
  • 164VL Series
Shape:

Tee
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Body Hex L M Flow Diameter (D)
164VL-3 3/16" 3/8" .98" .69" .160"
164VL-4 1/4" 1/2" 1.06" .75" .190"
164VL-5 5/16" 15/32" 1.22" .88" .250"
164VL-8 1/2" 13/16" 1.64" 1.16" .406"
