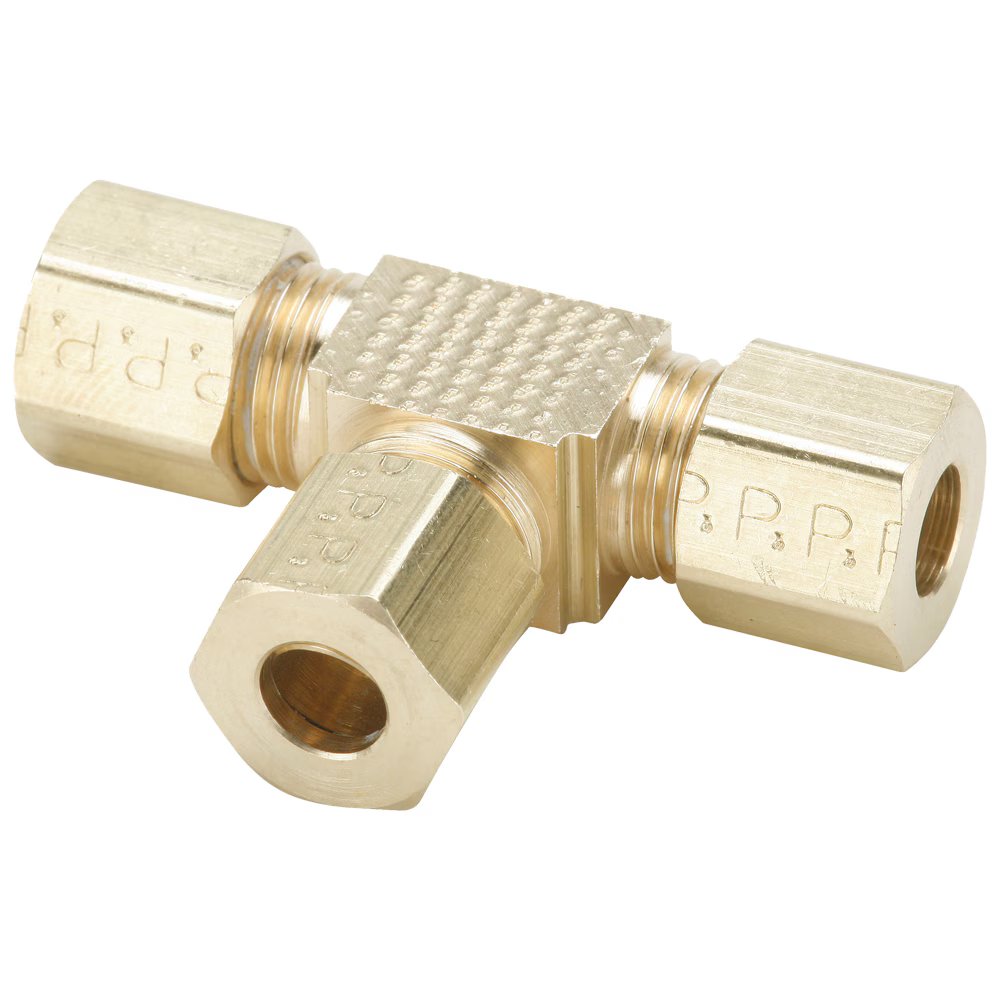

164C-5 by Parker | Compression Fitting | Union | 5/16" Tube Size x 1/2" Thread | 1.96" Length | Tee | Brass | Pack of 10

164C-5 by Parker | Compression Fitting | Union | 5/16" Tube Size x 1/2" Thread | 1.96" Length | Tee | Brass | Pack of 10

Sale price$131.66

by Parker Hannifin
Compression Fittings:Union Tee 164C-264C

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $123.76
20–59 $111.91
60+ $98.75
Discounts applied in cart/checkout.

Product Data:

Series:
  • 164C Series
Shape:

Tee

Ends Configuration:
  • 5/16in Tube Compression
  • 5/16in Tube Compression
  • 5/16in Tube Compression
  • Some Ends Match
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube Size Straight Thread L M Flow Diameter (D)
164C-2 1/8" 5/16"-24 .82" .61" .094"
264C-3 3/16" 3/8"-24 .84" .60" .125"
164C-4 1/4" 7/16"-24 .86" .63" .188"
164C-5 5/16" 1/2"-24 .98" .71" .250"
164C-6 3/8" 9/16"-24 1.03" .74" .312"
164C-8 1/2" 11/16"-20 1.34" .93" .406"
164C-10 5/8" 13/16"-18 1.54" 1.08" .500"
164C-12 3/4" 1"-18 1.65" 1.17" .563"
