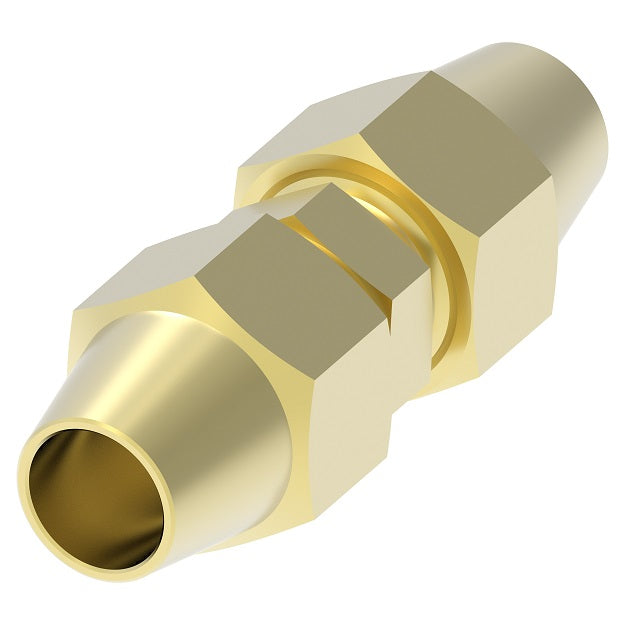

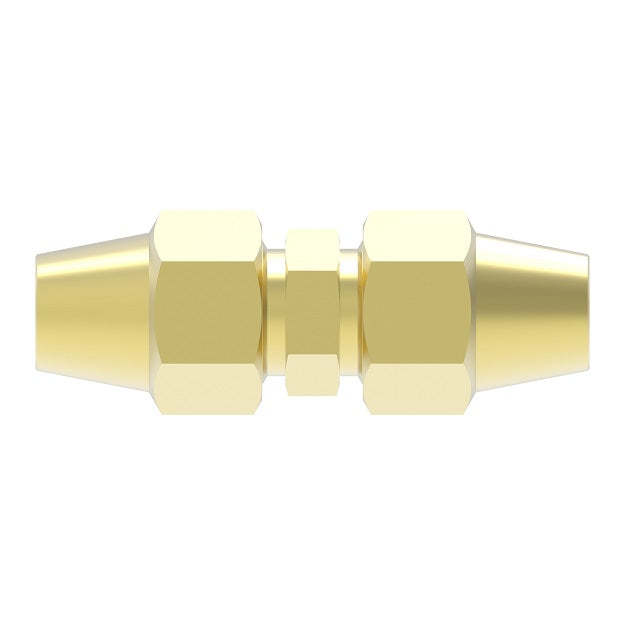

162X6 by Danfoss | Compression Fitting | Union | Long Nut | 3/8" Tube OD | Brass
162X6 by Danfoss | Compression Fitting | Union | Long Nut | 3/8" Tube OD | Brass
162X6 by Danfoss | Compression Fitting | Union | Long Nut | 3/8" Tube OD | Brass

162X6 by Danfoss | Compression Fitting | Union | Long Nut | 3/8" Tube OD | Brass

Sale price$10.97

Aeroquip® by Danfoss
Compression Fitting - Union (with Long Nut)
Compression End x Compression End
Straight
Buy More, Save More!
Quantity Price Each
10–39 $10.31
40–79 $9.32
80+ $8.23
Discounts applied in cart/checkout.

Product Data:

Ends Configuration:
  • 3/8in Tube Compression
  • 3/8in Tube Compression
  • Some Ends Match
Material(s):
  • Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060101BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number 		Tube O.D. Length Hex 1 Hex 2
162X2 1/8" 1.34" 0.312" 0.375"
162X4 1/4" 1.69" 0.438" 0.563"
162X6 3/8" 2.13" 0.563" 0.69"
