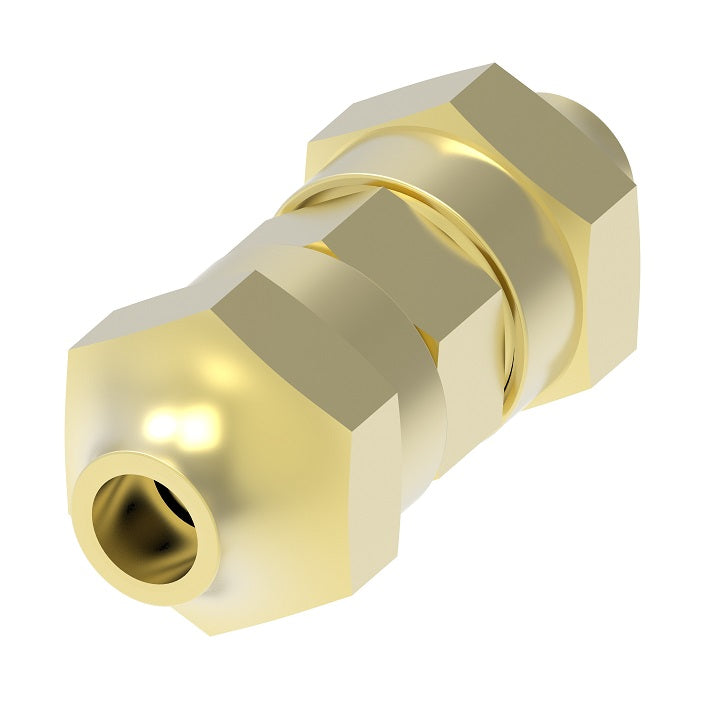

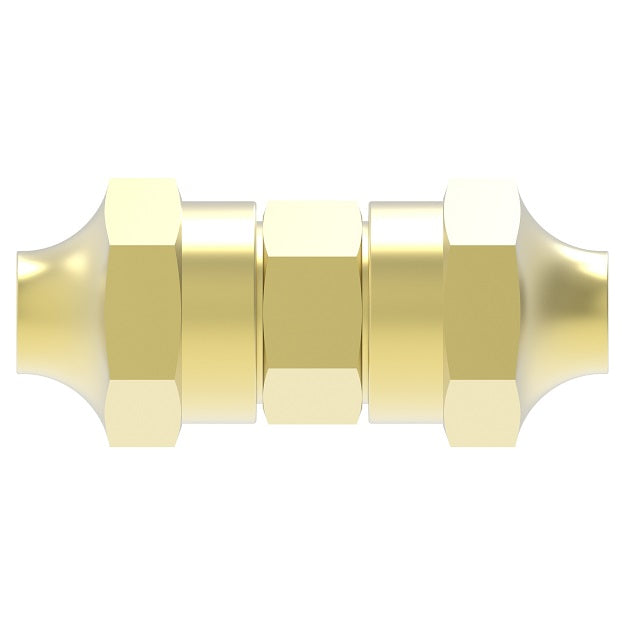

162X2 by Danfoss | Compression Fitting | Union | Long Nut | 1/8" Tube OD | Brass
162X2 by Danfoss | Compression Fitting | Union | Long Nut | 1/8" Tube OD | Brass
162X2 by Danfoss | Compression Fitting | Union | Long Nut | 1/8" Tube OD | Brass

162X2 by Danfoss | Compression Fitting | Union | Long Nut | 1/8" Tube OD | Brass

Sale price$19.36

Aeroquip® by Danfoss
Compression Fitting - Union (with Long Nut)
Compression End x Compression End
Straight
Buy More, Save More!
Quantity Price Each
10–39 $18.20
40–79 $16.46
80+ $14.52
Discounts applied in cart/checkout.

Product Data:

Ends Configuration:
  • 1/8in Tube Compression
  • 1/8in Tube Compression
  • Some Ends Match
Material(s):
  • Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060101BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number 		Tube O.D. Length Hex 1 Hex 2
162X2 1/8" 1.34" 0.312" 0.375"
162X4 1/4" 1.69" 0.438" 0.563"
162X6 3/8" 2.13" 0.563" 0.69"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
