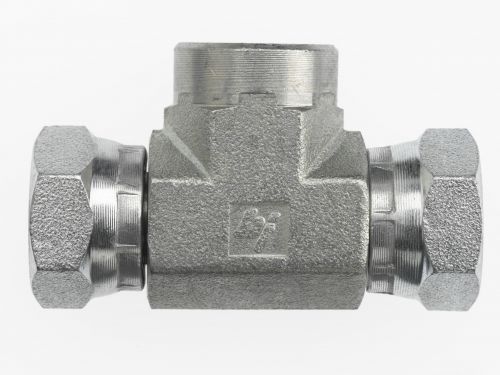

1602-06-04-04-FG by Brennan Inc. | -06 Female Pipe x -04 Female Pipe Swivel x -04 Female Pipe Swivel | Tee | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 1602 - Female Pipe x Female Pipe Swivel x Female Pipe Swivel Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.31 |
| 40–79 | $15.66 |
| 80+ | $13.82 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | A1 NPTF | A2 NPSM | A3 NPSM | A2 Drill | A3 Drill | L Length | M1 Length | M Length | C Hex | Y Flats |
| 1602-02-02-02-FG | Steel | 1/8-27" | 1/8-27" | 1/8-27" | 0.120" | 0.120" | 0.660" | 0.800" | 0.940" | 0.562" | 0.562" |
| 1602-04-04-04-FG | Steel | 1/4-18" | 1/4-18" | 1/4-18" | 0.220" | 0.220" | 0.880" | 0.990" | 1.180" | 0.688" | 0.750" |
| 1602-06-04-04-FG | Steel | 3/8-18" | 1/4-18" | 1/4-18" | 0.220" | 0.220" | 1.020" | 1.060" | 1.250" | 0.875" | 0.875" |
| 1602-06-06-06-FG | Steel | 3/8-18" | 3/8-18" | 3/8-18" | 0.340" | 0.340" | 0.940" | 0.990" | 1.200" | 0.875" | 0.875" |
| 1602-08-06-06-FG | Steel | 1/2-14" | 3/8-18" | 3/8-18" | 0.340" | 0.340" | 1.230" | 1.170" | 1.380" | 1.000" | 1.062" |
| 1602-08-08-08-FG | Steel | - | - | - | - | - | - | - | - | - | - |
| 1602-12-08-08-FG | Steel | 3/4-14" | 1/2-14" | 1/2-14" | 0.460" | 0.460" | 1.360" | 1.470" | 1.750" | 1.250" | 1.312" |
| 1602-12-12-12-FG | Steel | 3/4-14" | 3/4-14" | 3/4-14" | 0.630" | 0.630" | 1.360" | 1.470" | 1.820" | 1.250" | 1.312" |
| 1602-16-16-16-FG | Steel | 1-11-1/2" | 1-11-1/2" | 1-11-1/2" | 0.800" | 0.800" | 1.620" | 1.730" | 2.080" | 1.500" | 1.625" |
| 1602-20-20-20-FG | Steel | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1.020" | 1.020" | 1.700" | 1.830" | 2.250" | 1.875" | 1.875" |
