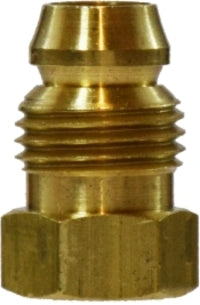

16010 by Midland | Double Compression Fitting | Break-Away Nut | 1/4" Tube OD | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Double Compression Threaded Sleeve Fitting - Break-Away Nut - Brass
1-Piece Fiting
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.48 |
| 40–79 | $2.24 |
| 80+ | $1.98 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
Specifications and Approvals:
| Applications: | For use on oil, air, water and grease lubrication systems. | Used With: | Use with aluminum and copper tubing or plastic tubing with internal tube support. Not recommended for steel tubing. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | N/A |
| Vibration: | N/A | Temperature Range: | N/A |
| Lead Free: | These are NOT Lead Free | Tolerance: | N/A |
- Easy to assemble, no flaring, two piece construction.
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" |
|---|---|---|---|---|---|
| Thread Size - B | 5/16-24 | 3/8-24 | 7/16-24 | 1/2-20 | 9/16-20 |
| Working Pressure | 500 PSI | 500 PSI | 500 PSI | 250 PSI | 250 PSI |
| Crossover Series: | ||||
|---|---|---|---|---|
| 181SP | 181-BA | 21604 | 99LB | 81LB |
 |
||||
|---|---|---|---|---|
| Part Number | Size | A | Hex | Approx. Weight (Lbs.) |
| 16009 |
1/8" | 0.66" | 0.31" | 0.02 |
| 16090 (16-090) |
3/16" | 0.57" | 0.37" | 0.02 |
| 16010 (16-010) |
1/4" | 0.62" | 0.43" | 0.02 |
| 16011 |
5/16" | 0.77" | 0.50" | 0.04 |
| 16012 |
3/8" | 0.84" | 0.56" | 0.04 |
| 16013 |
1/2" | 0.92" | 0.69" | 0.05 |
Dimension data can change without notice.
