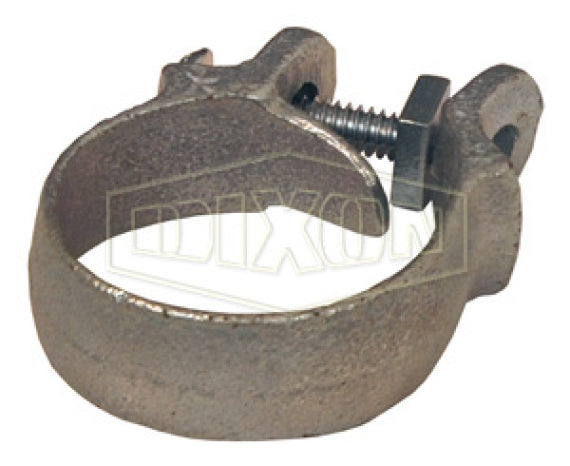

16 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 2-24/64" to 2-32/64" | Plated Iron
Dixon

16 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 2-24/64" to 2-32/64" | Plated Iron

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Note:
  • Measure hose O.D. accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
Plated Iron
Part Number		 Hose O.D. Range Torque
in ft. lbs.
from to
2 56/64" 1" 6
4 1-4/64" 1-12/64" 6
6 1-16/64" 1-24/64" 6
10 1-42/64" 1-48/64" 6
11 1-48/64" 1-56/64" 6
15 2-16/64" 2-26/64" 12
16 2-24/64" 2-32/64" 12
25 4-8/64" 4-20/64" 21
X27 4-40/64" 4-56/64" 21

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
