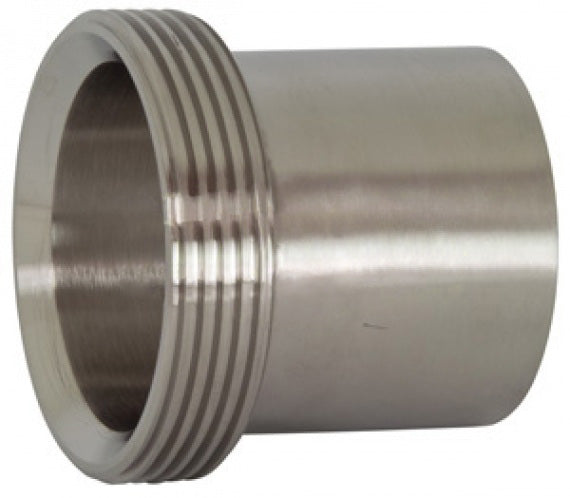

15WL-R300 Dixon Valve Light Wall Tank Threaded Bevel Seat Ferrule - 3" Tube OD - 316L Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Dimensions |
||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| 15WL-G100 | 15WL-R100 | 1" | 2.00" | 1.00" | 0.87" | 1.18" | 1.46" |
| 15WL-G150 | 15WL-R150 | 1-1/2" | 2.25" | 1.50" | 1.37" | 1.72" | 1.98" |
| 15WL-G200 | - | 2" | 2.50" | 2.00" | 1.87" | 2.23" | 2.53" |
| 15WL-G250 | 15WL-R250 | 2-1/2" | 2.75" | 2.50" | 2.37" | 2.74" | 3.06" |
| 15WL-G300 | 15WL-R300 | 3" | 3.00" | 3.00" | 2.87" | 3.31" | 3.58" |
| 15WL-G400 | - | 4" | 4.00" | 4.00" | 3.83" | 4.25" | 4.70" |
