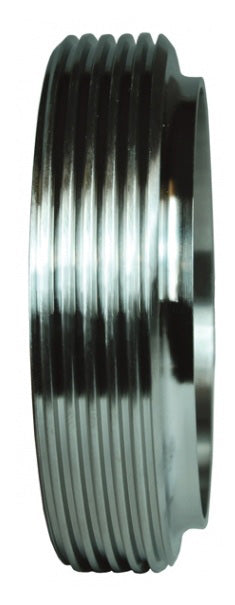

15TRFJP-G250 Dixon Valve John Perry Threaded Short Weld Ferrule - 2-1/2" Tube OD - 304 Stainless Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Features: | |||
|---|---|---|---|
|
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Dimensions |
|||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| 15TRFJP-G100 | 15TRFJP-R100 | 1" | 0.69" | 1.46" | 0.87" | 1.00" |
| 15TRFJP-G150 | 15TRFJP-R150 | 1-1/2" | 0.72" | 1.98" | 1.37" | 1.50" |
| 15TRFJP-G200 | 15TRFJP-R200 | 2" | 0.72" | 2.53" | 1.87" | 2.00" |
| 15TRFJP-G250 | 15TRFJP-R250 | 2-1/2" | 0.84" | 3.06" | 2.37" | 2.50" |
| 15TRFJP-G300 | 15TRFJP-R300 | 3" | 0.94" | 3.58" | 2.87" | 3.00" |
| 15TRFJP-G400 | 15TRFJP-R400 | 4" | 1.22" | 4.70" | 3.83" | 4.00" |
Additional Product Data:
Shape:
No Orientation
Material(s):
