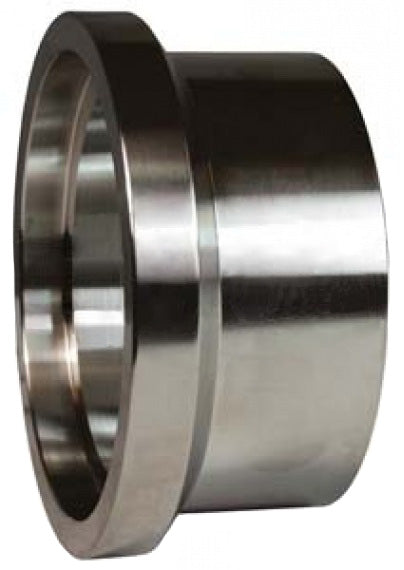

15WHI-G250 Dixon Valve Female I-Line Heavy Wall Tank Weld Ferrule - 2-1/2" Tube OD - 304 Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Dimensions |
||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| 15WHI-G100 | - | 1" | 1.99" | 1.27" | 1.50" | 0.87" | 1.25" |
| 15WHI-G150 | 15WHI-R150 | 1-1/2" | 2.00" | 1.76" | 1.63" | 1.37" | 1.69" |
| 15WHI-G200 | 15WHI-R200 | 2" | 2.64" | 2.26" | 1.75" | 1.87" | 2.25" |
| 15WHI-G250 | - | 2-1/2" | 3.31" | 2.76" | 1.75" | 2.37" | 2.75" |
| 15WHI-G300 | 15WHI-R300 | 3" | 3.87" | 3.32" | 1.81" | 2.87" | 3.31" |
| - | 15WHI-R600 | 6" | - | - | - | - | - |
