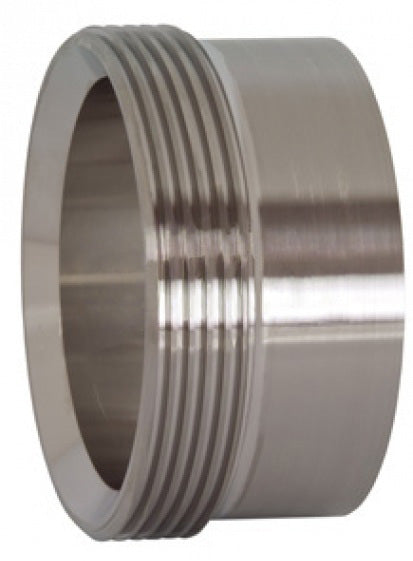

15W-G400 Dixon Valve Heavy Wall Tank Threaded Bevel Seat Ferrule - 4" Tube OD - 304 Stainless Steel
Dixon Sanitary Fittings Heavy Wall Tank Threaded Bevel Seat Ferrule
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $69.13 |
| 40–79 | $62.51 |
| 80+ | $55.16 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Dimensions |
||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| 15W-G100 | 15W-R100 | 1" | 1.50" | 1.16" | 0.87" | 1.27" | 1.46" |
| 15W-G150 | 15W-R150 | 1-1/2" | 1.63" | 1.68" | 1.37" | 1.70" | 1.98" |
| 15W-G200 | 15W-R200 | 2" | 1.75" | 2.19" | 1.87" | 2.23" | 2.53" |
| 15W-G250 | 15W-R250 | 2-1/2" | 1.75" | 2.71" | 2.37" | 2.74" | 3.06" |
| 15W-G300 | 15W-R300 | 3" | 1.81" | 3.22" | 2.87" | 3.31" | 3.58" |
| 15W-G400 | 15W-R400 | 4" | 2.13" | 4.26" | 3.83" | 4.25" | 4.70" |
