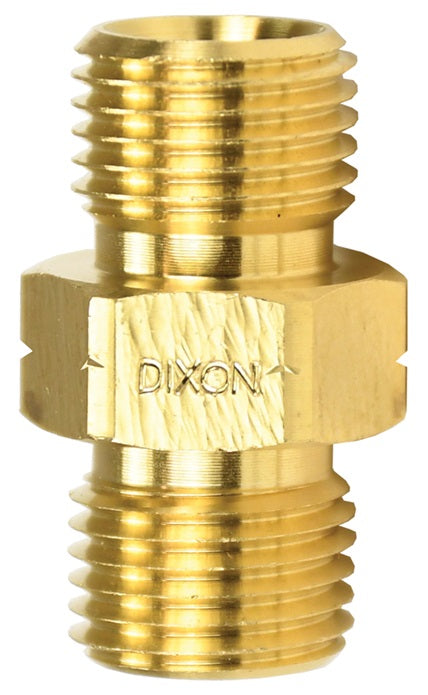

1580909C by Dixon Valve | Welding Oxy-Acetylene Connecting Spud | Left-Hand Thread x Left-Hand Thread | 9/16" Male UNF x 9 /16 Male UNF | Brass

1580909C by Dixon Valve | Welding Oxy-Acetylene Connecting Spud | Left-Hand Thread x Left-Hand Thread | 9/16" Male UNF x 9 /16 Male UNF | Brass

Sale price$10.28
Buy more, save moreDiscounts applied in cart/checkout.
Use:
  • It is recommended that hose assemblies be fabricated using hose clamps or crimped ferrules in conjunction with hose barbs.
Compatible Hoses:
  • All Grade R and Grade RM single or twin-line oxygen (green) acetylene (red) industrial welding hoses.
  • Parker 7110 and 7126 or equivalent.
Approvals:
  • Meets Compressed Gas Association (CGA) connection Nos.
Specifications:
  • 200 PSI (1400 kPa) 72°F (22°C) maximum working pressure with 4:1 safety factor for fittings, but a 15 PSI maximum must be observed on the acetylene side.
  • Operating temperatures: -40°F to 160°F (-40°F to 71°C) at 150 PSI maximum.
Material:
  • Brass: Alloy 360.
Safety Notes:
  • Use 1" long crimp ferrules only for optimum hose engagement.
  • Use only acetylene as a fuel gas.
  • Use only a proper striker for ignition.
  • A thread sealant is recommended for tapered pipe thread connections with 156 and 158-Series adapters.
Part
Number		 Previous
Part Number		 CGA
Number		 Description Male UNF Thread Hex
1580909C OA52 023 Left-Hand Thread x Left-Hand Thread 9/16"-18 11/16"
1560909C OA50 022 Right-Hand Thread x Right-Hand Thread 9/16"-18 11/16"

Additional Product Data:

Series:
  • 158 Series
Shape:

Straight

Material(s):
  • Brass
