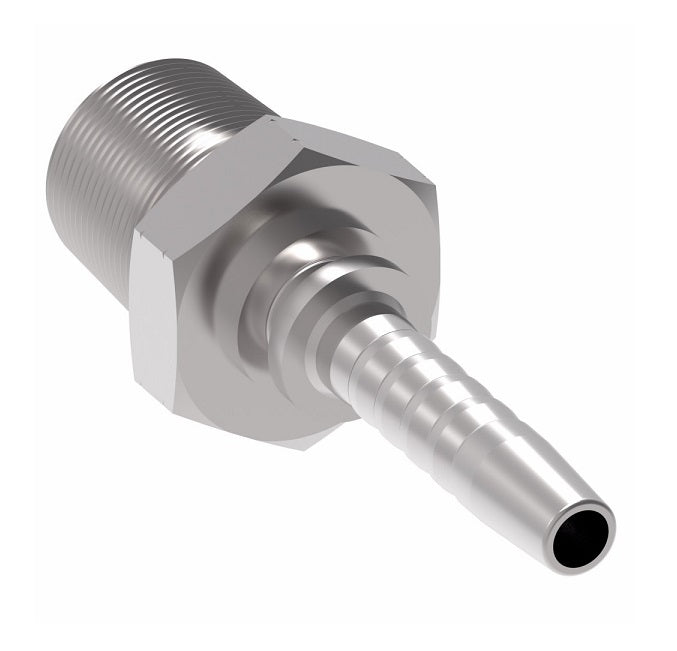

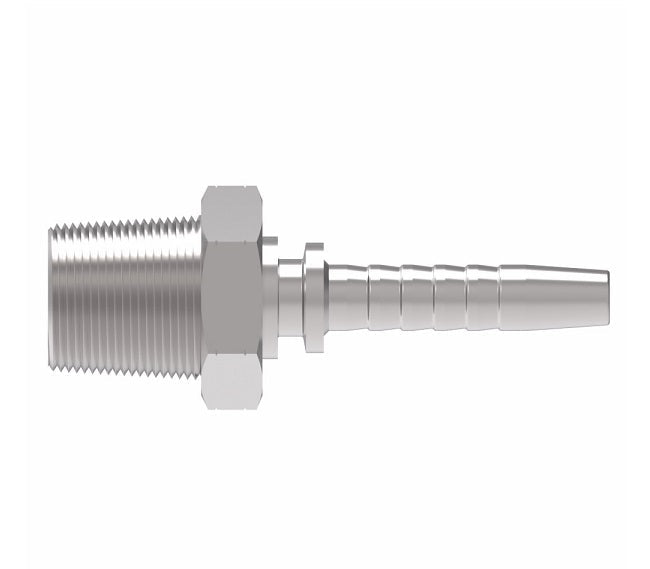

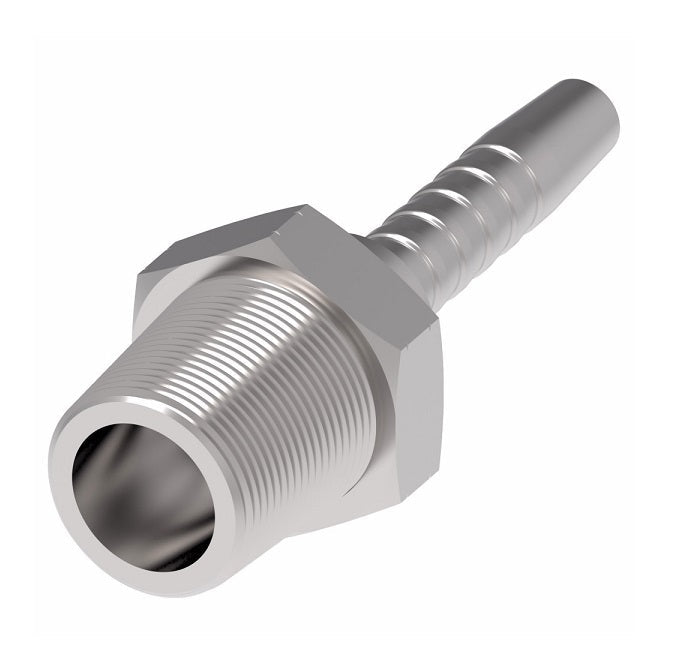

15611-F04-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -04 Male NPTF x -06 Hose Barb | Steel
Minimum Order Quantity: 5 Units
Winner by Danfoss
Male NPTF Rigid 2-Piece Hose Crimp Fitting - Male NPTF x Hose Barb - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.03 |
| 40–79 | $5.46 |
| 80+ | $4.82 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | Hex 2 |
| 15611-F02-04ZF | -02 | 1/8x27 | 6 | -04 | 1.99" | 0.89" | 0.16" | 12mm |
| 15611-F04-04ZF | -04 | 1/4x18 | 6 | -04 | 2.20" | 1.10" | 0.16" | 17mm |
| 15611-F04-06ZF | -04 | 1/4x18 | 10 | -06 | 2.26" | 1.08" | 0.28" | 17mm |
| 15611-F06-06ZF | -06 | 3/8x18 | 10 | -06 | 2.32" | 1.14" | 0.28" | 19mm |
| 15611-F08-06ZF | -08 | 1/2x14 | 10 | -06 | 2.52" | 1.34" | 0.28" | 22mm |
| 15611-F08-08ZF | -08 | 1/2x14 | 12 | -08 | 2.60" | 1.36" | 0.39" | 22mm |
| 15611-F12-12ZF | -12 | 3/4x14 | 20 | -12 | 3.03" | 1.52" | 0.59" | 27mm |
| 15611-F16-16ZF | -16 | 1x11.5 | 25 | -16 | 3.68" | 1.83" | 0.83" | 36mm |
