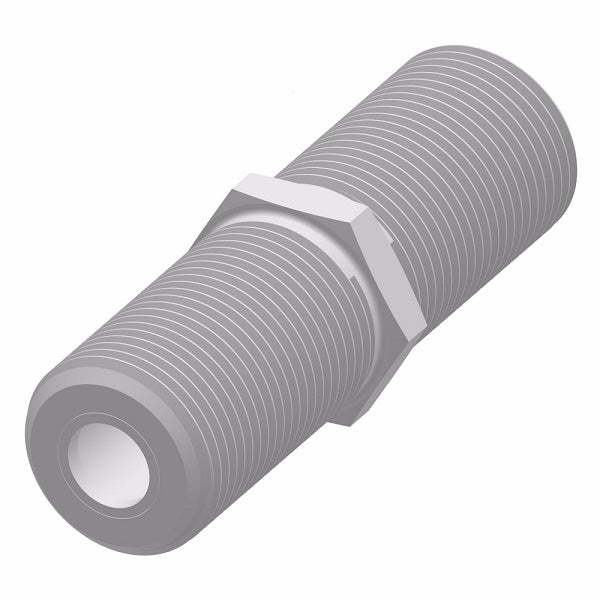

1531X2 by Danfoss | KYNAR® Check Valve | 1/8" Male NPTF x 1/8" Male NPTF | KYNAR®
1531X2 by Danfoss | KYNAR® Check Valve | 1/8" Male NPTF x 1/8" Male NPTF | KYNAR®
1531X2 by Danfoss | KYNAR® Check Valve | 1/8" Male NPTF x 1/8" Male NPTF | KYNAR®

1531X2 by Danfoss | KYNAR® Check Valve | 1/8" Male NPTF x 1/8" Male NPTF | KYNAR®

Sale price$19.96
Buy more, save moreDiscounts applied in cart/checkout.
Features/Benefits:
  • Zero Leakage
  • Cracking Pressure 1 to 2.5 PSI
Materials:
  • KYNAR® (Polyvinylidene Fluoride)
  • Viton® O-Ring
  • Stainless Ball & Spring
Maximum Operating Temperatures:
  • 180°F @ 220 PSI
Compatible Tubing:
  • For use with PT200, PT240, and TP160 plastic tubing.
  • Tube inserts are recommended for optimal performance with PT200 tubing.

* Operating temperatures of Eaton connectors are regulated by ambient and fluid temperatures, type of fluid being carried, tubing type and conditions of mechanical abuse. Pressures in excess of above specifications in all connector sizes should be tested by the customer in the particular application.
KYNAR®
Part Number		 Male NPTF L J Hex C
1531X2 1/8" 1.00" 0.09" 7/16"
1531X4 1/4" 1.41" 0.19" 5/8"
1531X6 3/8" 1.50" 0.25" 13/16"
1531X8 1/2" 1.81" 0.34" 15/16"

** KYNAR is a registered trademark of Elf Atochem North America, Inc.

Viton is a registered trademark of DuPont Dow Elastomers

Additional Product Data:

Brand:
  • KYNAR
Shape:

Straight

Ends Configuration:
  • 1/8in Male NPTF
  • 1/8in Male NPTF
  • Some Ends Match

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
