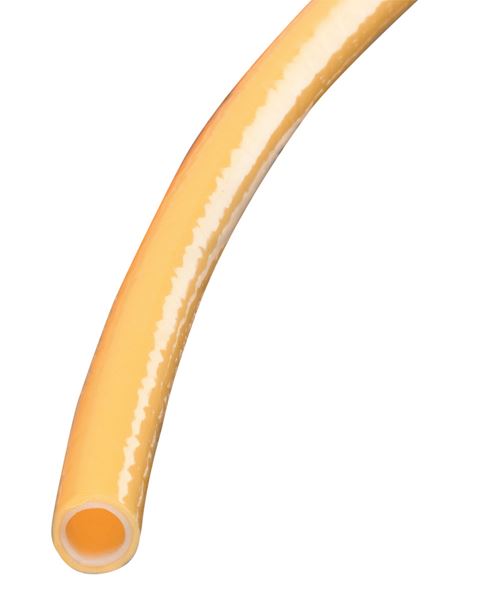

151YE-10X250 Kuri-Tec ENDURE™ by Kuriyama | 151 Series (Type B) | Reinforced DOT Air Brake Tubing | 5/8" OD | 0.441" ID | Yellow | 250ft Length

151YE-10X250 Kuri-Tec ENDURE™ by Kuriyama | 151 Series (Type B) | Reinforced DOT Air Brake Tubing | 5/8" OD | 0.441" ID | Yellow | 250ft Length

Sale price$546.96

Package Quantity: 250 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Auxiliary air systems
Trailer air brake systems
Truck, bus and commercial vehicle air brake systems
Tube: Specially designed polyester compounds
Service Temperature Range: -40°F (-40°C) to +200°F (+93°C)
Specifications: Meets and exceeds DOT FMVSS 106.
Meets and exceeds performance requirements of SAE J844.
Other Features:
  • Superior Flexibility - Highly engineered polyester material exhibits improved flexibility versus traditional nylon tubing.
  • Excellent Resistance - Excellent resistance to abrasion, gasoline, diesel fuel, road salt and deicing compounds.
  • Industry Leading Impact Strength and Vibration Cracking Resistance - Engineered formulation retains its flexibility and resists impact cracking in both high heat and sub-zero cold weather conditions; providing longer service life than traditional nylon tubing.
  • Exceeds Industry Performance Standards - Far surpasses traditional nylon tubing for heat aging and heated oil aging, while retaining its superior performance and flexibility over lower temperatures than traditional nylon tubing.
  • Easy Installation - Greater flexibility allows for easier installation reducing time, effort and installer fatigue.
  • Weather Resistant - Heat and light stabilized for superior UV resistance and long service life. Resists the cracking that can result from damaging UV light.
151BK Series | Black
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151BK-06X100 - 151BK-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151BK-08X100 - 151BK-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151BK-10X100 151BK-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151BK-12X100 151BK-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151BL Series | Blue
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151BL-06X100 - 151BL-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151BL-08X100 - 151BL-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151BL-10X100 151BL-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151BL-12X100 151BL-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151GR Series | Green
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151GR-06X100 - 151GR-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151GR-08X100 - 151GR-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151GR-10X100 151GR-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151GR-12X100 151GR-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151OR Series | Orange
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151OR-06X100 - 151OR-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151OR-08X100 - 151OR-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151OR-10X100 151OR-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151OR-12X100 151OR-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151RD Series | Red
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151RD-06X100 - 151RD-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151RD-08X100 - 151RD-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151RD-10X100 151RD-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151RD-12X100 151RD-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"
151YE Series | Yellow
Part Number
100ft		 Part Number
250ft		 Part Number
500ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
151YE-06X100 - 151YE-06X500 3/8" 0.251" 0.062" 1,400 PSI 1.5"
151YE-08X100 - 151YE-08X500 1/2" 0.376" 0.062" 950 PSI 2.50"
151YE-10X100 151YE-10X250 - 5/8" 0.441" 0.094" 900 PSI 3.0"
151YE-12X100 151YE-12X250 - 3/4" 0.566" 0.094" 850 PSI 3.5"

Additional Product Data:

Brand:
  • ENDURE
  • Kuri-Tec
Series:
  • 151 Series
Color(s):
  • Yellow

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
