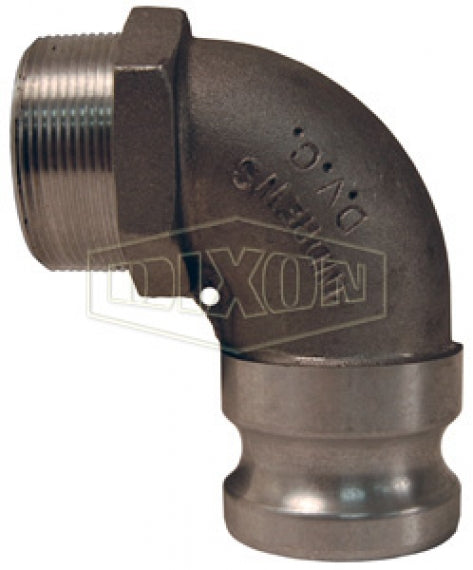

150F-90AL by Dixon Valve | Cam & Groove Adapter | 90° Elbow | Type F | 1-1/2" Adapter x 1-1/2" Male NPT | Aluminum

150F-90AL by Dixon Valve | Cam & Groove Adapter | 90° Elbow | Type F | 1-1/2" Adapter x 1-1/2" Male NPT | Aluminum

Sale price$58.52

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type F | Adapter x Male NPT

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
10–39 $55.01
40–79 $49.74
80+ $43.89
Discounts applied in cart/checkout.

Product Data:

MAWP:

250

Shape:

90 Degree

Cam & Groove Type:

Type F
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
150F-90AL - 1-1/2" 250 PSI
200F90AL 200F-90SS* 2" 250 PSI
- 300F-90SS* 3" 125 PSI

* Parts are produced as a welded fabrication.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
