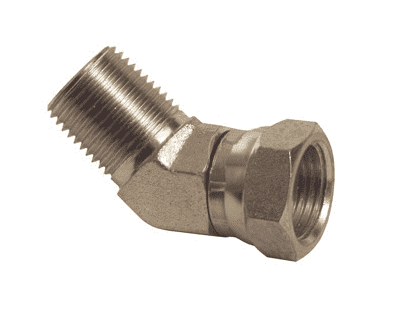

1503-8-8 Dixon Valve Zinc Plated Steel 45 deg. 1/2"-14 Male NPTF x 1/2"-14 Female NPSM Swivel Nut

1503-8-8 Dixon Valve Zinc Plated Steel 45 deg. 1/2"-14 Male NPTF x 1/2"-14 Female NPSM Swivel Nut

Sale price$12.46

NPT Fittings - 45 deg. Male NPTF x Female NPSM Swivel Nut - Zinc Plated Steel
Buy More, Save More!
Quantity Price Each
10–39 $11.71
40–79 $10.59
80+ $9.35
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1/2in Male NPTF
  • 1/2in Female NPSM
Material(s):
  • Zink-Plated Steel
Features:
  • Designed to prevent hose stress due to twisting during assembly.
  • Compact design provides ease of assembly in confining areas.
  • Female NPSM swivel seals on a 30 deg. seat.
  • Male NPTF must have a 30 deg. chamfer to seal.
Part Number Male NPTF Female NPSM Swivel Working Pressure Weight (Lbs.)
1503-4-4 1/4"-18 1/4"-18 4500 PSI 0.0900
1503-6-6 3/8"-18 3/8"-18 4000 PSI 0.1500
1503-8-8 1/2"-14 1/2"-14 3000 PSI 0.3350
1503-12-12 3/4"-14 3/4"-14 2500 PSI 0.3505
1503-16-16 1"-11-1/2 1"-11-1/2 2000 PSI 0.5115

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
