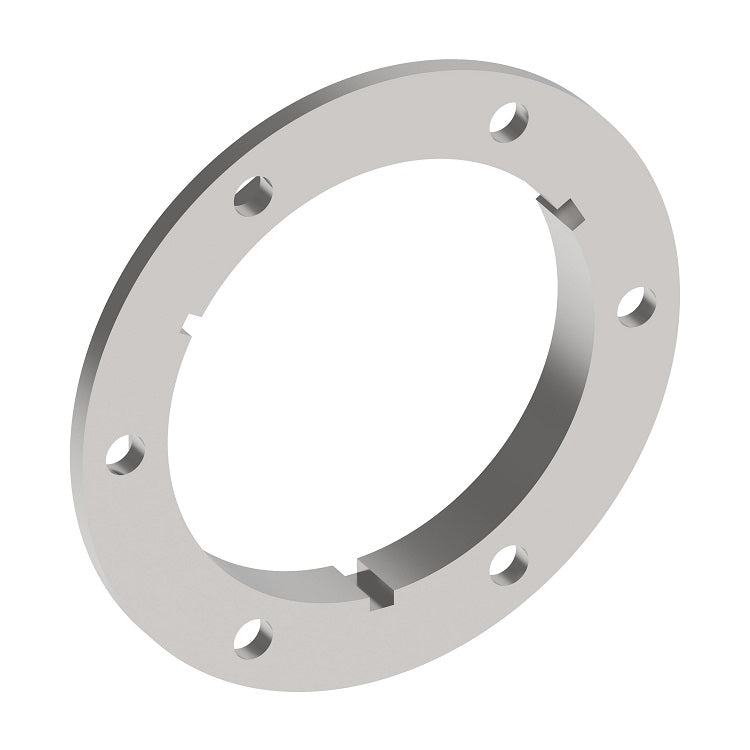

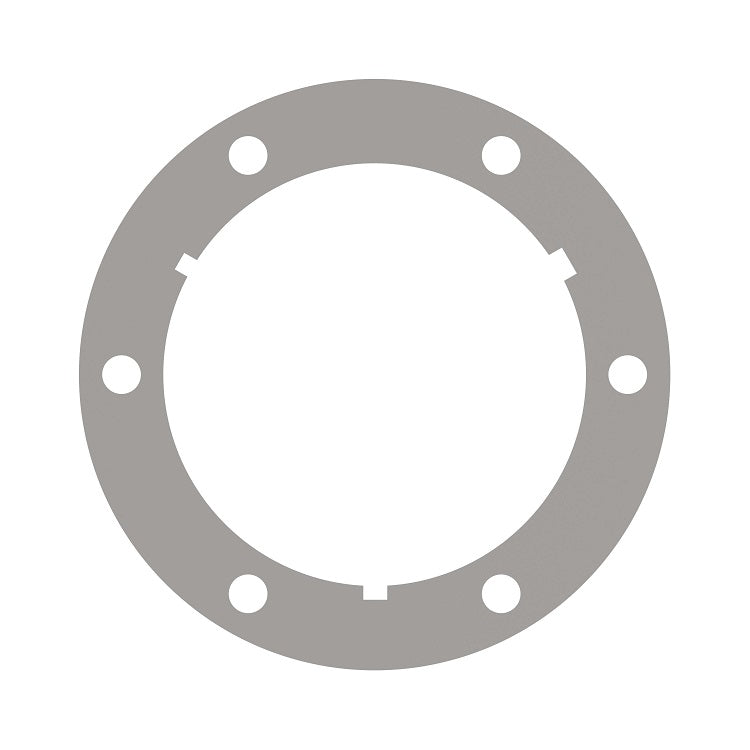

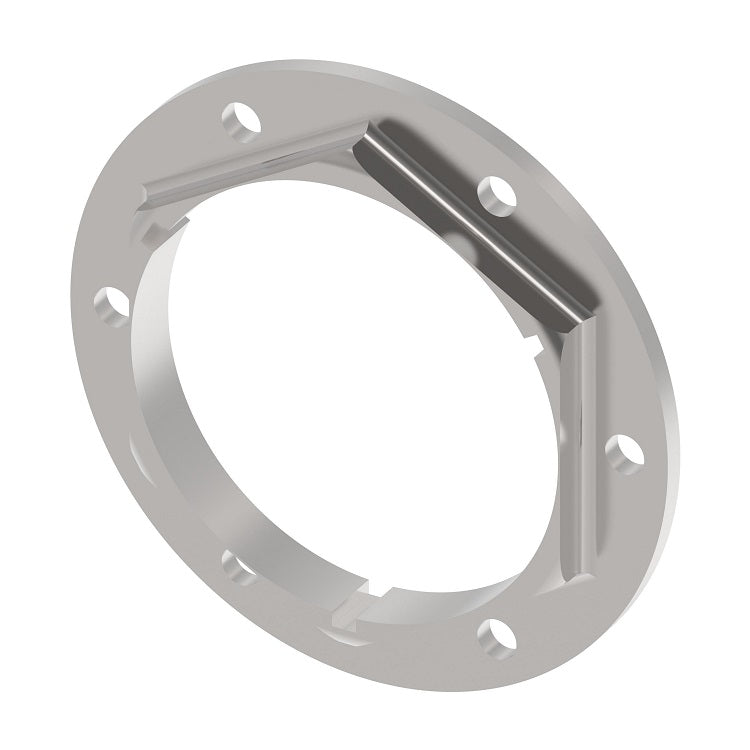

150-22-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 6-Bolt Flange Assembly | 1" Body Size | Steel
Minimum Order Quantity: 5 Units
Hansen® by Danfoss
5100 Series | Thread to Connect | 6-Bolt Flange Assembly
Fluid Transfer and Hydraulic Quick Disconnect Coupling
Danfoss Hansen 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.83 |
| 40–79 | $2.56 |
| 80+ | $2.26 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Material(s):
| Applications & Markets: |
|
|---|---|
| Materials: |
|
 |
|||
|---|---|---|---|
| Part Number | Body Size | Dimensions | |
| A* | B | ||
| 150-22-5 | 1/4" | 0.201" (5.11mm) |
1.44" (33.6mm) |
| 150-22-8 | 3/8" & 1/2" | 0.201" (5.11mm) |
1.69" (42.9mm) |
| 150-22-12 | 5/8" & 3/4" | 0.201" (5.11mm) |
2.12" (53.8mm) |
| 150-22-16 | 1" | 0.201" (5.11mm) |
2.38" (60.5mm) |
| 150-22-20 | 1-1/4" | 0.201" (5.11mm) |
2.62" (66.5mm) |
* 6 Bolt Flange-holes equally spaced.
