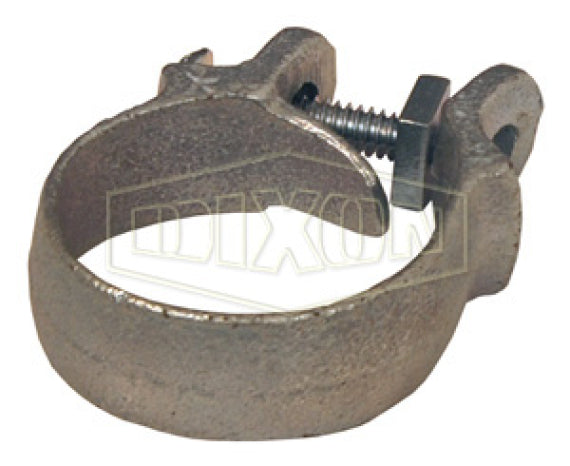

15 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 2-16/64" to 12-26/64" | Plated Iron

15 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 2-16/64" to 12-26/64" | Plated Iron

Sale price$35.87

Dixon Valve
Single Bolt Clamps
Buy More, Save More!
Quantity Price Each
10–39 $33.72
40–79 $30.49
80+ $26.90
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Plated Iron
Minimum Clamp I.D.:

2.25"

Maximum Clamp I.D.:

2.40625"
Note:
  • Measure hose O.D. accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
Plated Iron
Part Number		 Hose O.D. Range Torque
in ft. lbs.
from to
2 56/64" 1" 6
4 1-4/64" 1-12/64" 6
6 1-16/64" 1-24/64" 6
10 1-42/64" 1-48/64" 6
11 1-48/64" 1-56/64" 6
15 2-16/64" 2-26/64" 12
16 2-24/64" 2-32/64" 12
25 4-8/64" 4-20/64" 21
X27 4-40/64" 4-56/64" 21

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
