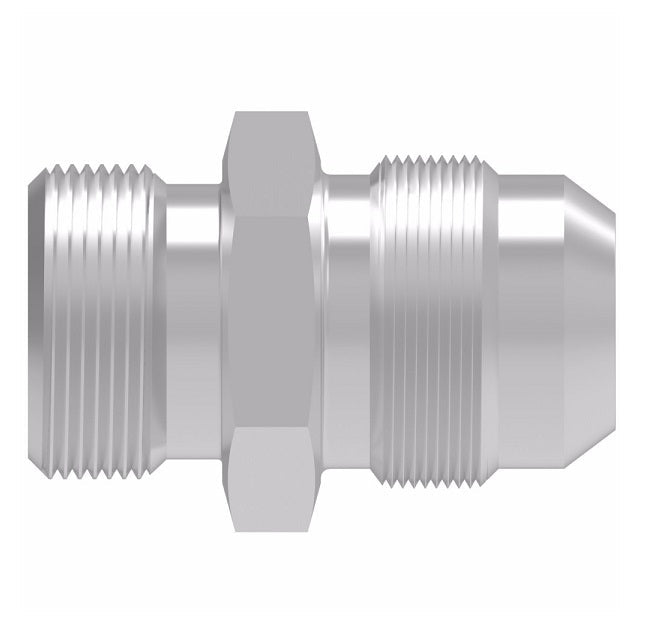

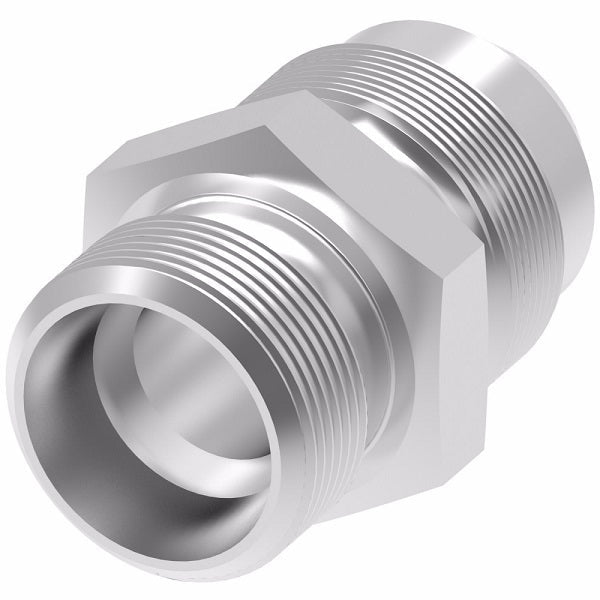

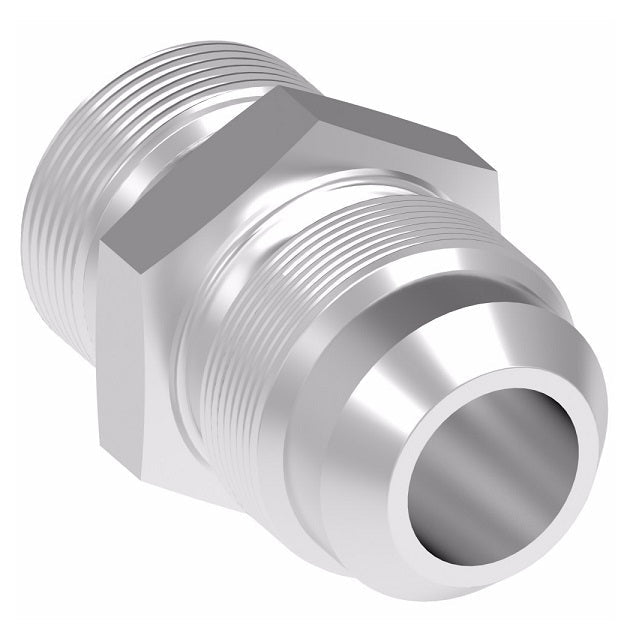

15.147-14-10 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M22 Male Metric x -10 Male 37° JIC Flare | Steel
15.147-14-10 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M22 Male Metric x -10 Male 37° JIC Flare | Steel
15.147-14-10 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M22 Male Metric x -10 Male 37° JIC Flare | Steel

15.147-14-10 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Straight Adapter | M22 Male Metric x -10 Male 37° JIC Flare | Steel

Sale price$23.61

Aeroquip® by Danfoss
Metric 24° (DIN 3901/3902 s.Rh)/37° JIC Flare Adapter
Male Metric x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $22.19
40–79 $20.07
80+ $17.71
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 22mm Male Metric
  • 5/8in Male JIC
Material(s):
  • Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A RØ
15.147-6-6 0.38" M14 x 1.5 9/16-18 1.30" 0.24"
15.147-10-8 0.50" M18 x 1.5 3/4-16 1.40" 0.39"
15.147-14-10 0.63" M22 x 1.5 7/8-14 1.59" 0.55"
15.147-16-12 0.75" M24 x 1.5 1-1/16-12 1.77" 0.63"
15.147-20-16 1.00" M30 x 2.0 1-5/16-12 1.89" 0.79"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
