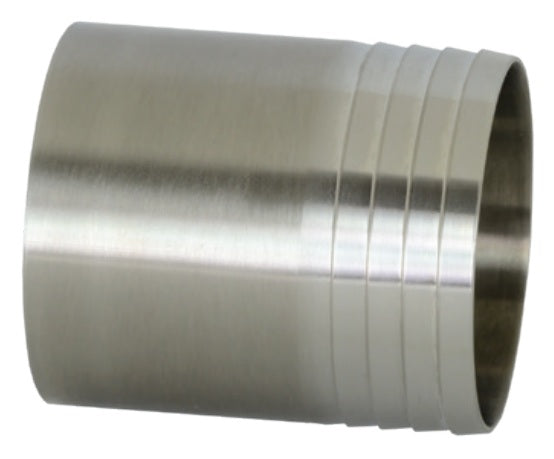

14WHR-R400 Dixon Valve Weld Hose Adapter - 4" Tube OD - Polished 316L Stainless Steel
Dixon Sanitary Fittings Weld Hose Adapter
3A sanitary finish ID and OD
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $38.61 |
| 40–79 | $34.91 |
| 80+ | $30.80 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Material: | |||
|---|---|---|---|
|
| Part Number | Size | Wall Thickness | Dimensions |
||
|---|---|---|---|---|---|
| A | B | C | |||
| 14WHR-R50 | 1/2" | 0.065" | 1.50" | 0.37" | 0.50" |
| 14WHR-R75 | 3/4" | 0.065" | 1.50" | 0.62" | 0.75" |
| 14WHR-R100 | 1" | 0.065" | 1.69" | 0.87" | 1.00" |
| 14WHR-R150 | 1-1/2" | 0.065" | 1.69" | 1.37" | 1.50" |
| 14WHR-R200 | 2" | 0.065" | 2.31" | 1.87" | 2.00" |
| 14WHR-R250 | 2-1/2" | 0.065" | 2.00" | 2.37" | 2.50" |
| 14WHR-R300 | 3" | 0.065" | 3.09" | 2.87" | 3.00" |
| 14WHR-R400 | 4" | 0.083" | 3.41" | 3.83" | 4.00" |
