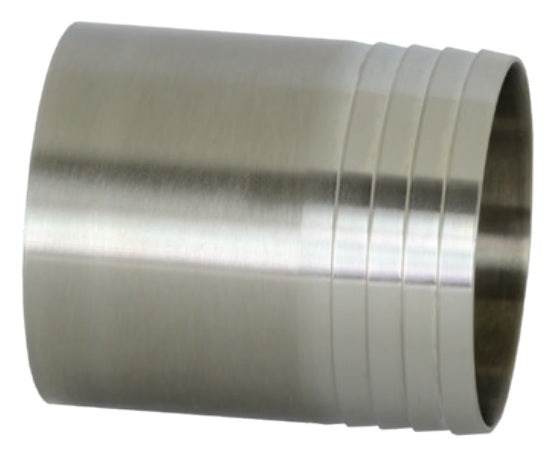

14WHR-R250 Dixon Valve Weld Hose Adapter - 2-1/2" Tube OD - Polished 316L Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Material: | |||
|---|---|---|---|
|
| Part Number | Size | Wall Thickness | Dimensions |
||
|---|---|---|---|---|---|
| A | B | C | |||
| 14WHR-R50 | 1/2" | 0.065" | 1.50" | 0.37" | 0.50" |
| 14WHR-R75 | 3/4" | 0.065" | 1.50" | 0.62" | 0.75" |
| 14WHR-R100 | 1" | 0.065" | 1.69" | 0.87" | 1.00" |
| 14WHR-R150 | 1-1/2" | 0.065" | 1.69" | 1.37" | 1.50" |
| 14WHR-R200 | 2" | 0.065" | 2.31" | 1.87" | 2.00" |
| 14WHR-R250 | 2-1/2" | 0.065" | 2.00" | 2.37" | 2.50" |
| 14WHR-R300 | 3" | 0.065" | 3.09" | 2.87" | 3.00" |
| 14WHR-R400 | 4" | 0.083" | 3.41" | 3.83" | 4.00" |
