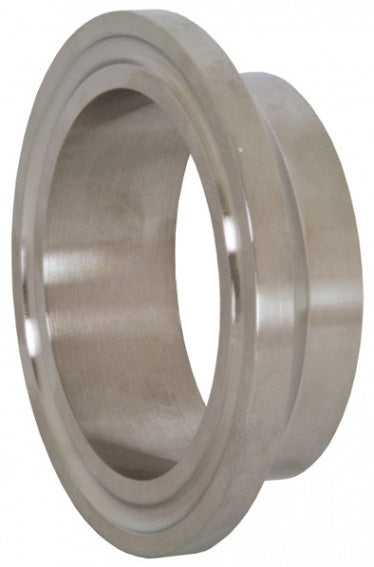

14WQ-R300 Dixon Valve 316L Stainless Steel Sanitary Q-line Weld Ferrule - 3" Tube OD
Dixon Sanitary Fittings Sanitary Q-line Ferrule - Q-line Weld Ferrule
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $92.25 |
| 20–59 | $83.42 |
| 60+ | $73.61 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Dimensions |
||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| 14WQ-G100 | 14WQ-R100 | 1" | 1.98" | 1.00" | 0.87" | 0.53" | 1.44" |
| 14WQ-G150 | 14WQ-R150 | 1-1/2" | 1.98" | 1.50" | 1.37" | 0.56" | 1.72" |
| 14WQ-G200 | 14WQ-R200 | 2" | 2.64" | 2.00" | 1.87" | 0.81" | 2.25" |
| 14WQ-G250 | 14WQ-R250 | 2-1/2" | 3.31" | 2.50" | 2.37" | 0.94" | 2.84" |
| 14WQ-G300 | 14WQ-R300 | 3" | 3.87" | 3.00" | 2.87" | 0.94" | 3.38" |
| 14WQ-G400 | 14WQ-R400 | 4" | 4.87" | 4.00" | 3.83" | 1.00" | 4.38" |
