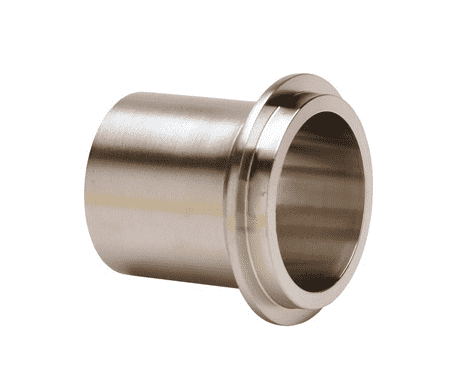

14WLI-G150 Dixon Valve 304 Stainless Steel Sanitary Male I-line Long Weld Ferrule - 1-1/2" Tube OD
Dixon Sanitary Fittings Sanitary I-Line Ferrule - Male I-line Long Weld Ferrule - 304 Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $36.18 |
| 40–79 | $32.72 |
| 80+ | $28.87 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| Features: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Dimensions
|
Weight (Lbs.) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| 14WLI-G100 | 1" | 1.760" | 1.000" | 0.870" | 1.250" | 1.990" | 0.2500 |
| 14WLI-G150 | 1-1/2" | 2.040" | 1.500" | 1.370" | 1.740" | 1.990" | 0.2600 |
| 14WLI-G200 | 2" | 2.320" | 2.000" | 1.870" | 2.240" | 2.640" | 0.4350 |
| 14WLI-G250 | 2-1/2" | 2.500" | 2.500" | 2.370" | 2.740" | 3.310" | 0.7000 |
| 14WLI-G300 | 3" | 2.690" | 3.000" | 2.870" | 3.300" | 3.870" | 1.0300 |
| 14WLI-G400 | 4" | 3.010" | 4.000" | 3.830" | 4.300" | 4.870" | 1.4700 |
| 14WLI-G600 | 4" | 2.880" | 6.000" | 5.780" | 6.830" | 7.500" | 4.0000 |
