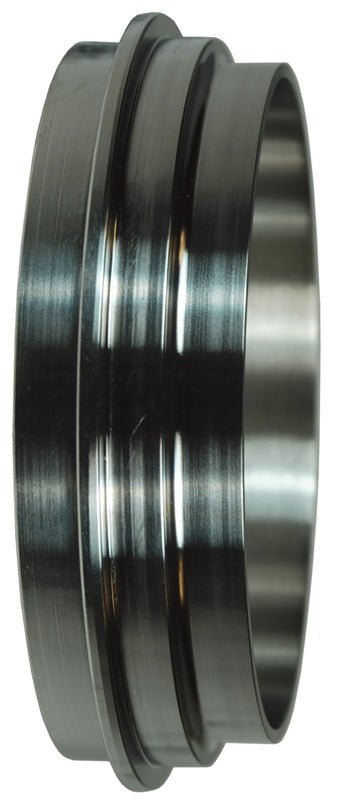

14PRFJP-R300 Dixon Valve John Perry Short Plain Weld Ferrule - 3" Tube OD - 316L Stainless Steel
Dixon Sanitary Fittings John Perry Short Plain Weld Ferrule
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $97.88 |
| 20–59 | $88.51 |
| 60+ | $78.10 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| Construction: | |||
|---|---|---|---|
|
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Size | Wall Thickness | Dimensions |
|||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| 14PRFJP-G150 | - | 1-1/2" | 0.065 | 1.37" | 1.85" | 0.72" | 1.50" |
| 14PRFJP-G200 | 14PRFJP-R200 | 2" | 0.065" | 1.87" | 2.38" | 0.72" | 2.00" |
| 14PRFJP-G250 | - | 2-1/2" | 0.065" | 2.37" | 2.91" | 0.84" | 2.50" |
| 14PRFJP-G300 | 14PRFJP-R300 | 3" | 0.065" | 2.87" | 3.44" | 0.91" | 3.00" |
| - | 14PRFJP-R400 | 4" | 0.083" | 3.83" | 4.51" | 1.22" | 4.00" |
