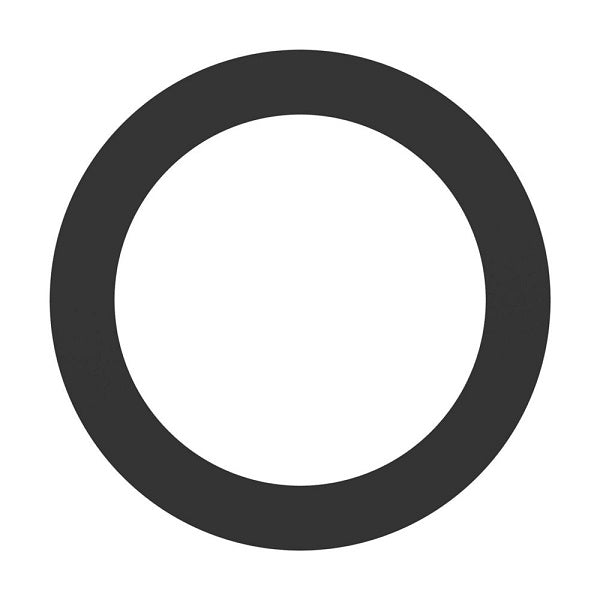

1485X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Gauge Ring | 3/8" Tube OD

1485X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Gauge Ring | 3/8" Tube OD

Minimum Order Quantity: 5 Units

Sale price$2.67

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Gauge Ring
Buy More, Save More!
Quantity Price Each
20–39 $2.51
40–79 $2.27
80+ $2.00
Discounts applied in cart/checkout.

Product Data:

Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Tube O.D. L
1485X4 1/4" .085/.105
1485X6 3/8" .125/.145
1485X8 1/2" .100/.120
1485X10 5/8" .115/.135
1485X12 3/4" .180/.200

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
