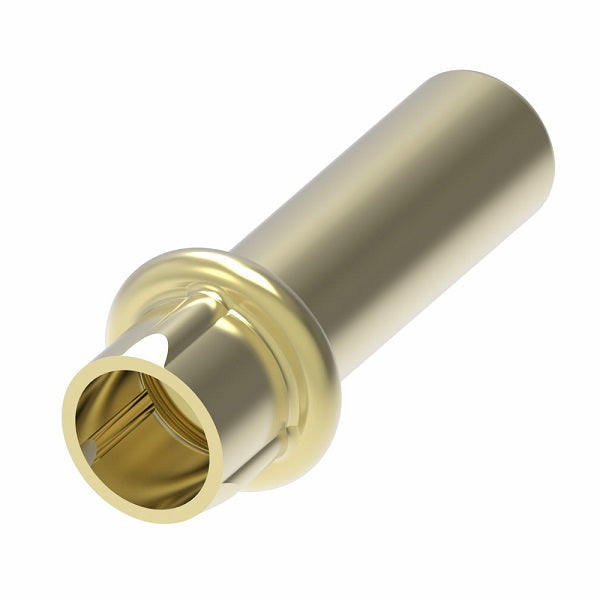

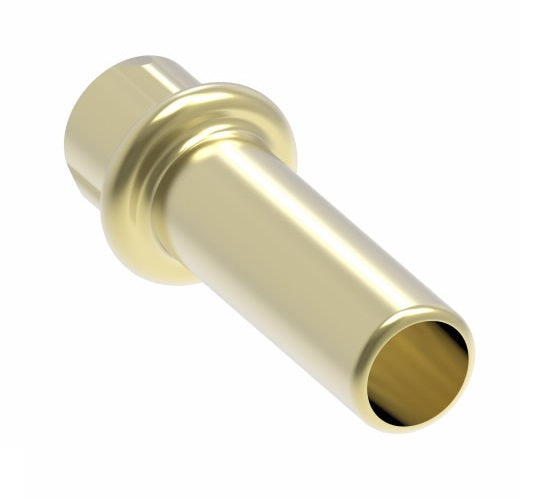

1484X8 by Danfoss | Air Brake Adapter for Nylon Tubing | Insert | 1/2" Tube OD | Brass
1484X8 by Danfoss | Air Brake Adapter for Nylon Tubing | Insert | 1/2" Tube OD | Brass
1484X8 by Danfoss | Air Brake Adapter for Nylon Tubing | Insert | 1/2" Tube OD | Brass

1484X8 by Danfoss | Air Brake Adapter for Nylon Tubing | Insert | 1/2" Tube OD | Brass

Minimum Order Quantity: 10 Units

Sale price$1.27

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Insert
Buy More, Save More!
Quantity Price Each
20–39 $1.19
40–79 $1.08
80+ $0.95
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Brass
Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Tube O.D. A B C D
1484X4 1/4" 0.64" 0.46" 0.163" 0.133"
1484X6 3/8" 0.76" 0.58" 0.245" 0.215"
1484X8 1/2" 0.94" 0.76" 0.370" 0.340"
1484X10 5/8" 1.06" 0.84" 0.434" 0.398"
1484X12 3/4" 1.21" 1.00" 0.559" 0.523"
