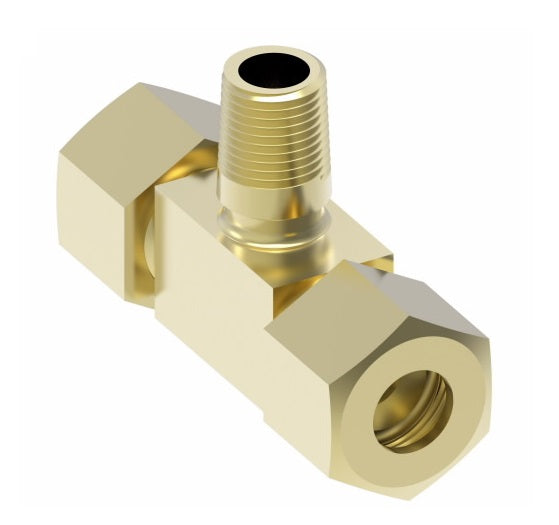

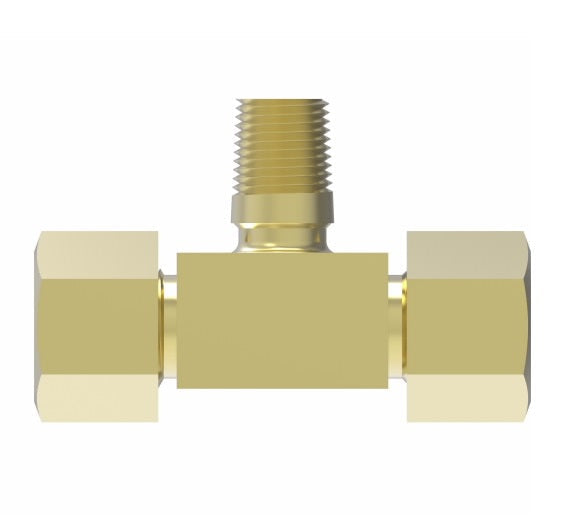

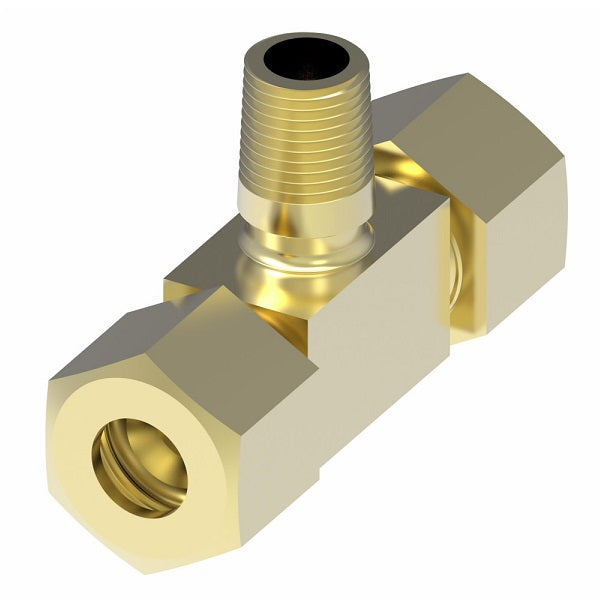

1472X6Z by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector Branch Tee (with Sealant) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male Pipe | Brass
1472X6Z by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector Branch Tee (with Sealant) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male Pipe | Brass
1472X6Z by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector Branch Tee (with Sealant) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male Pipe | Brass

1472X6Z by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector Branch Tee (with Sealant) | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male Pipe | Brass

Sale price$21.98

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Male Branch Tee
Buy More, Save More!
Quantity Price Each
10–39 $20.66
40–79 $18.68
80+ $16.49
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Material(s):
  • Brass
Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100425BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male Pipe Branch D1 M M1 M2
1472X4 - 1/4" 1/8" 0.188" 0.63" 0.63" 0.67"
1472X6X4X4 - 3/8" x 1/4" 1/4" 0.312" 0.82" 0.69" 0.93"
1472X6 1472X6Z 3/8" 1/4" 0.312" 0.82" 0.82" 0.93"
1472X6X6X6 - 3/8" 3/8" 0.406" 0.85" 0.85" 0.92"
1472X8X6X6 - 1/2" x 3/8" 3/8" 0.406" 0.94" 0.85" 1.00"
1472X8X8X4 1472X8X8X4Z 1/2" 1/4" 0.312" 0.94" 0.94" 1.00"
1472X8 - 1/2" 3/8" 0.406" 0.94" 0.94" 1.00"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
