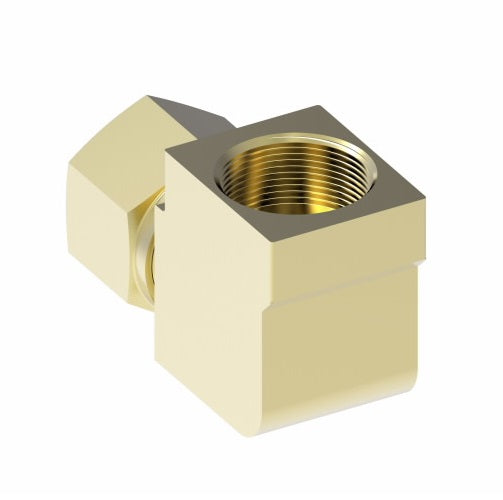

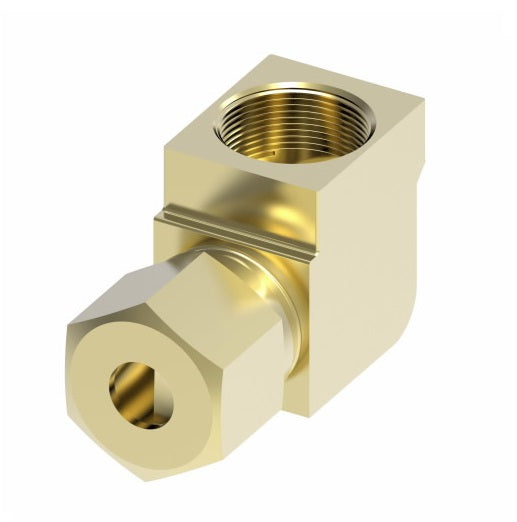

1470X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector 90° Elbow | 1/4" Tube OD x 1/8" Female Pipe | Brass
1470X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector 90° Elbow | 1/4" Tube OD x 1/8" Female Pipe | Brass
1470X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector 90° Elbow | 1/4" Tube OD x 1/8" Female Pipe | Brass

1470X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector 90° Elbow | 1/4" Tube OD x 1/8" Female Pipe | Brass

Sale price$22.03
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100203BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Tube O.D. Female Pipe
Thread		 M N
1470X4 1/4" 1/8" 0.72" 0.54"

Additional Product Data:

Shape:

90 Degree

Material(s):
  • Brass
Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series
