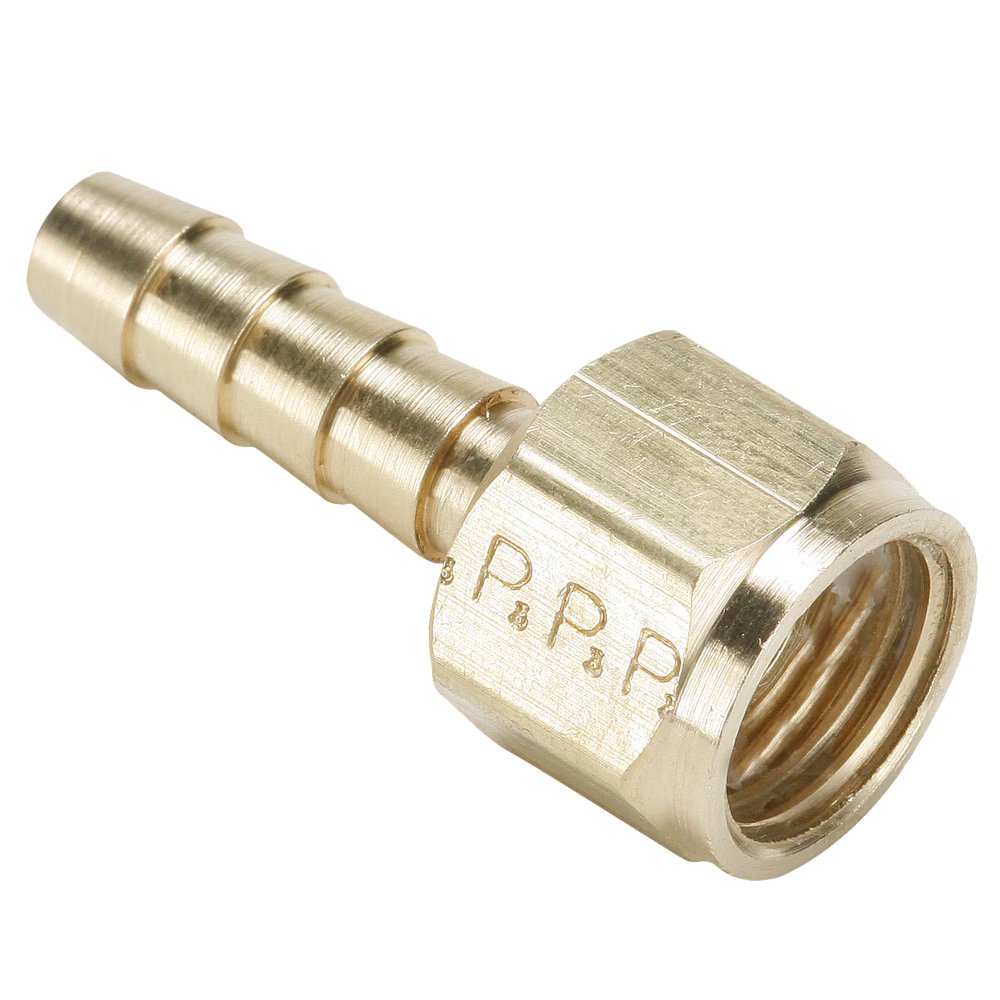

146HBLFSV-4-4 by Parker | Hose Barb Fittings | 1/4" Hose Barb x 7/16" 45° Swivel Female Flare | 9/16" Hex | 1.55" Length | Straight | Brass | Pack of 25

146HBLFSV-4-4 by Parker | Hose Barb Fittings | 1/4" Hose Barb x 7/16" 45° Swivel Female Flare | 9/16" Hex | 1.55" Length | Straight | Brass | Pack of 25

Sale price$95.03

Package Quantity: 25 Units

In stock
Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • All brass construction
  • Fluorocarbon O-rings
  • NPTF, SAE straight thread, metric thread ends
  • Reusable
  • Clamp required
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -40° to +160° F (-40° to +71.1° C)
Pressure Range: Up to 150 PSI (10.3 bar)
Part Number ID Hose Size Straight Thread Hex (C) L M OD Flow Diameter (D)
146HBLFSV-4-4 1/4" 7/16"-20 9/16" 1.55" .97" .290" .187"
146HBLFSV-4-6 1/4" 5/8"-18 3/4" 1.72" .97" .290" .187"
146HBLFSV-6-6 3/8" 5/8"-18 3/4" 1.72" .97" .415" .281"

Additional Product Data:

Series:
  • 146HBLFSV Series
Shape:

Straight

Ends Configuration:
  • 1/4in Hose Barb

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
