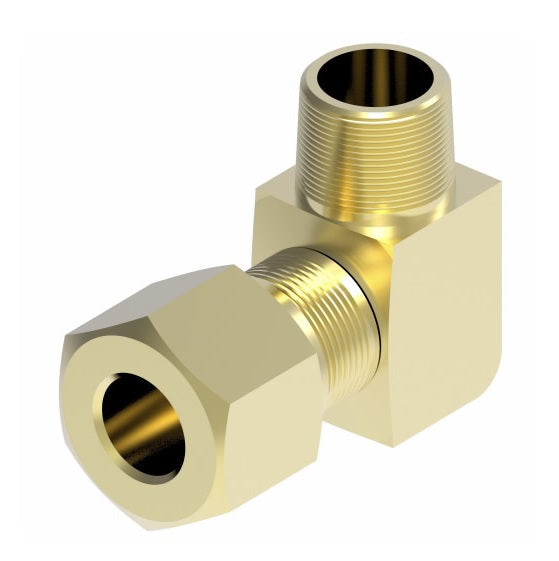

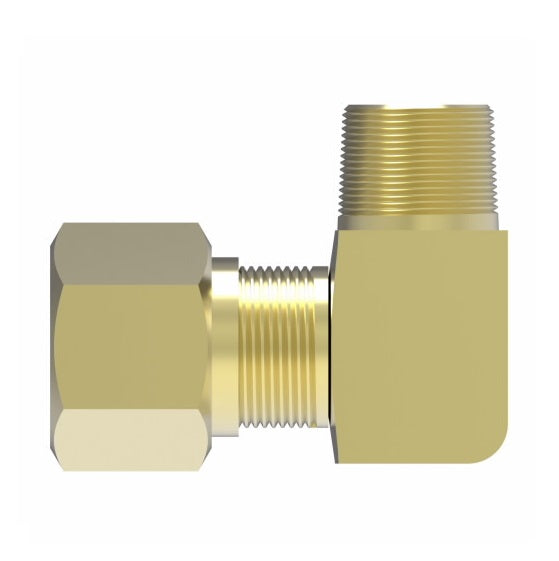

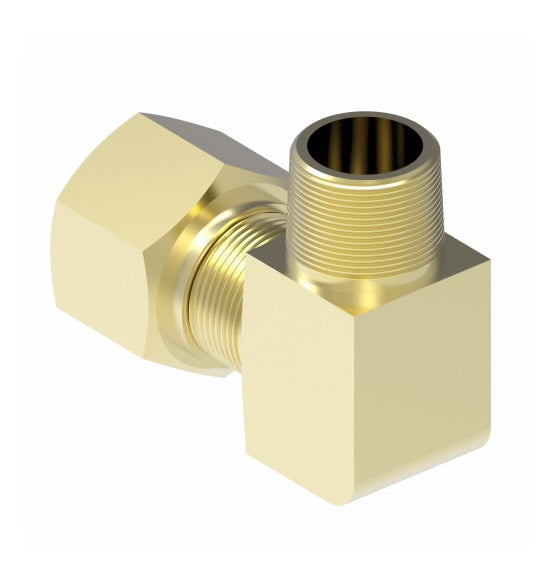

1469X8L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 1/2" Tube OD x 3/8" Male Pipe | Brass
1469X8L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 1/2" Tube OD x 3/8" Male Pipe | Brass
1469X8L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 1/2" Tube OD x 3/8" Male Pipe | Brass

1469X8L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 1/2" Tube OD x 3/8" Male Pipe | Brass

Sale price$40.84

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Male Connector Long

Buy More, Save More!
Quantity Price Each
10–39 $38.39
40–79 $34.71
80+ $30.63
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Material(s):
  • Brass
Special Properties:
  • Long
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100202BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male Pipe
Thread		 D1 M N
1469X6L 1469X6LZ 3/8" 1/4" 0.312" 0.80" 1.44"
1469X8L 1469X8LZ 1/2" 3/8" 0.406" 0.94" 1.38"
