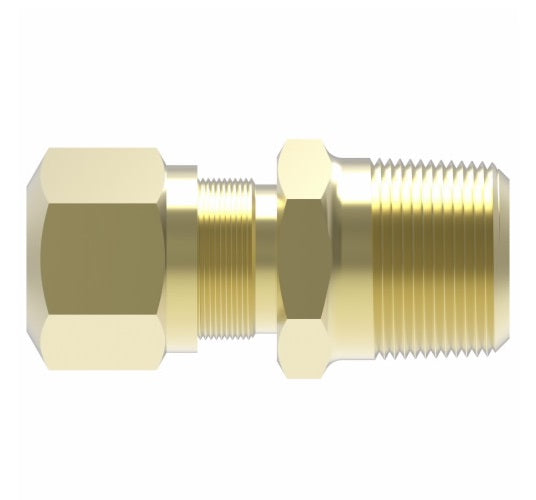

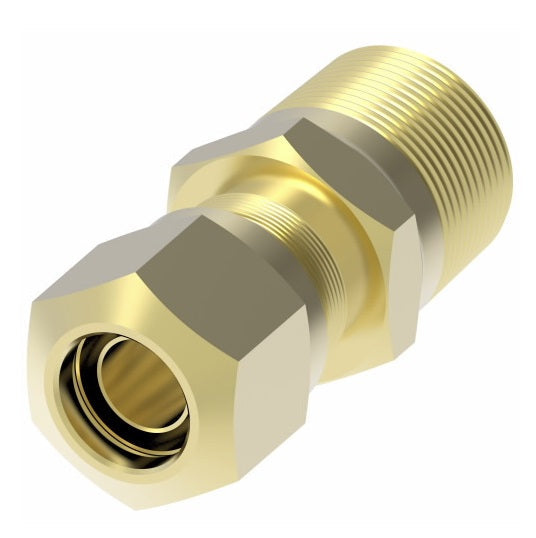

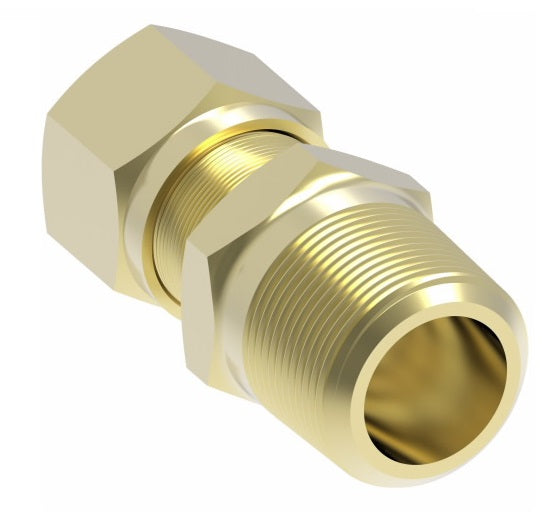

1468X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector | 1/4" Tube OD x 1/8" Male Pipe | Brass
Minimum Order Quantity: 5 units
Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Male Connector
Product Data:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
| Tube O.D. | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
| Thread Size | 7/16-24 | 17/32-24 | 11/16-20 | 13/16-18 | 1-18 |
 |
||||||
|---|---|---|---|---|---|---|
| Brass Part Number |
Brass with Sealant Part Number |
Tube O.D. | Male Pipe Thread |
Hex C |
D1 | L |
| 1468X4X1 | - | 1/4" | 1/16" | 7/16" | 0.125" | 0.90" |
| 1468X4 | 1468X4Z | 1/4" | 1/8" | 7/16" | 0.188" | 0.88" |
| 1468X4X4 | 1468X4X4Z | 1/4" | 1/4" | 9/16" | 0.188" | 1.09" |
| 1468X4X6 | 1468X4X6Z | 1/4" | 3/8" | 11/16" | 0.188" | 1.12" |
| 1468X6X2 | 1468X6X2Z | 3/8" | 1/8" | 9/16" | 0.188" | 1.02" |
| 1468X6 | 1468X6Z | 3/8" | 1/4" | 9/16" | 0.312" | 1.20" |
| 1468X6X6 | 1468X6X6Z | 3/8" | 3/8" | 11/16" | 0.312" | 1.23" |
| 1468X6X8 | - | 3/8" | 1/2" | 7/8" | 0.312" | 1.42" |
| 1468X8X4 | 1468X8X4Z | 1/2" | 1/4" | 11/16" | 0.312" | 1.32" |
| 1468X8 | - | 1/2" | 3/8" | 11/16" | 0.406" | 1.32" |
| 1468X8X8 | 1468X8X8Z | 1/2" | 1/2" | 7/8" | 0.406" | 1.51" |
| 1468X8X12 | 1468X8X12Z | 1/2" | 3/4" | 1-1/16" | 0.406" | 1.57" |
| 1468X10X6 | 1468X10X6Z | 5/8" | 3/8" | 13/16" | 0.406" | 1.38" |
| 1468X10 | 1468X10Z | 5/8" | 1/2" | 7/8" | 0.531" | 1.57" |
| 1468X10X12 | - | 5/8" | 3/4" | 1-1/16" | 0.750" | 1.63" |
| 1468X12 | - | 3/4" | 1/2" | 1" | 0.531" | 1.67" |
| 1468X12X12 | 1468X12X12Z | 3/4" | 3/4" | 1-1/16" | 0.660" | 1.70" |
