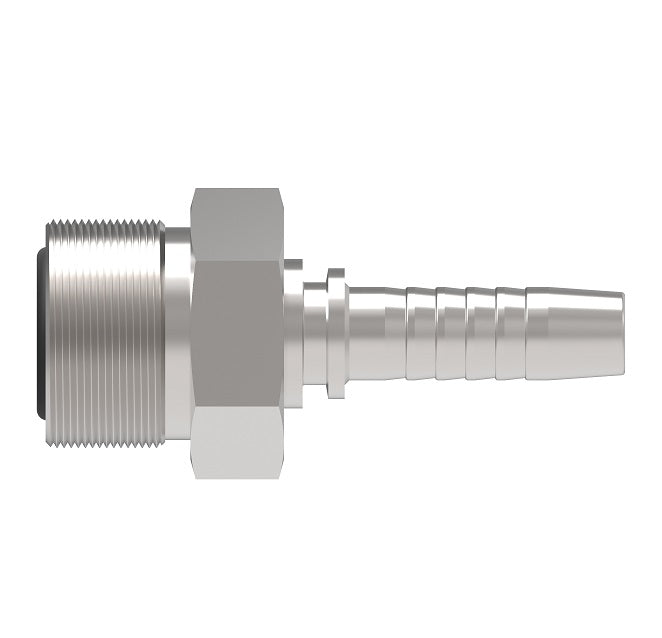

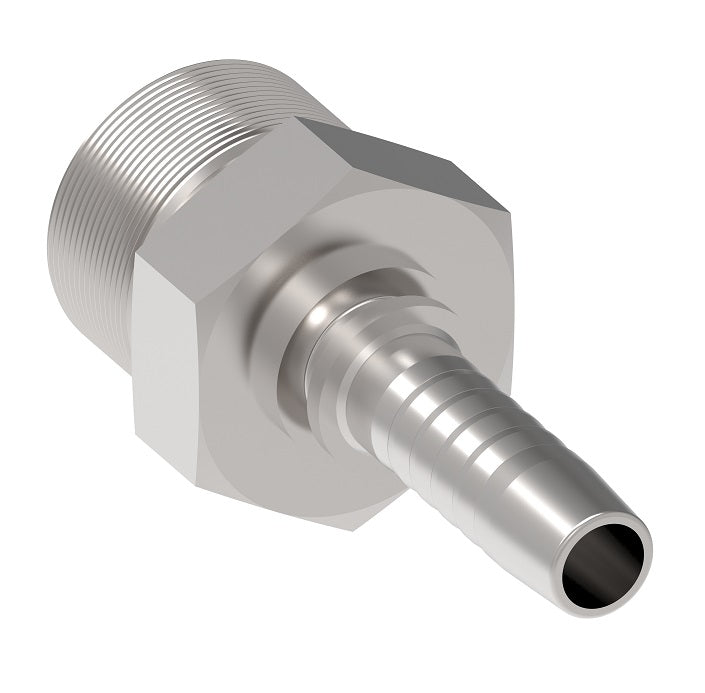

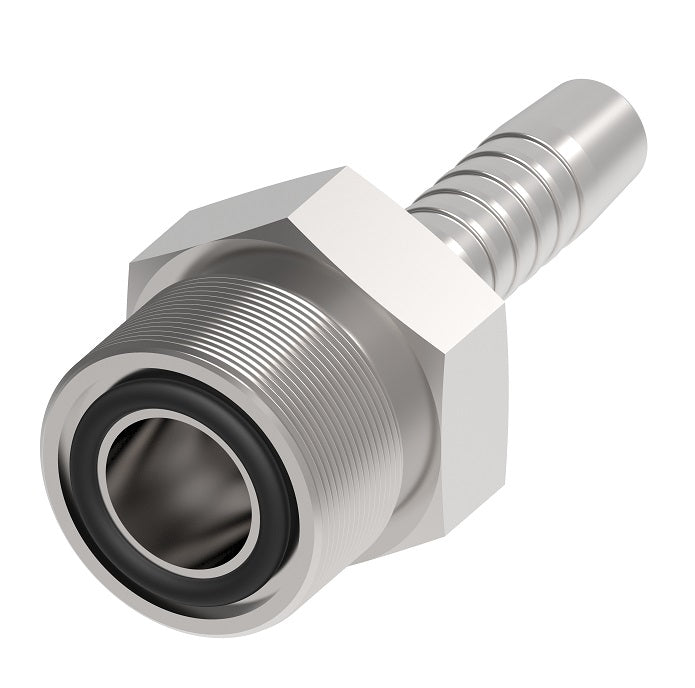

14211-12-12ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -12 Hose Barb | Steel
14211-12-12ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -12 Hose Barb | Steel
14211-12-12ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -12 Hose Barb | Steel

14211-12-12ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -12 Hose Barb | Steel

Sale price$26.39
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 2
14211-06-04ZF -06 11/16-16 6 -04 2.05" 0.94" 0.15" 19mm
14211-06-06ZF -06 11/16-16 10 -06 2.16" 0.94" 0.26" 19mm
14211-08-06ZF -08 13/16-16 10 -06 2.26" 1.08" 0.28" 22mm
14211-08-08ZF -08 13/16-16 12 -08 2.36" 1.12" 0.38" 22mm
14211-10-08ZF -10 1-14 12 -08 2.52" 1.28" 0.39" 27mm
14211-12-10ZF -12 1-3/16-12 16 -10 2.76" 1.42" 0.47" 32mm
14211-12-12ZF -12 1-3/16-12 20 -12 2.95" 1.44" 0.59" 32mm
14211-16-12ZF -16 1-7/16-12 20 -12 2.97" 1.46" 0.59" 38mm

Additional Product Data:

Brand:
  • Winner
Ends Configuration:
  • 3/4in Male O-Ring Face Seal
  • 3/4in Hose Barb
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
