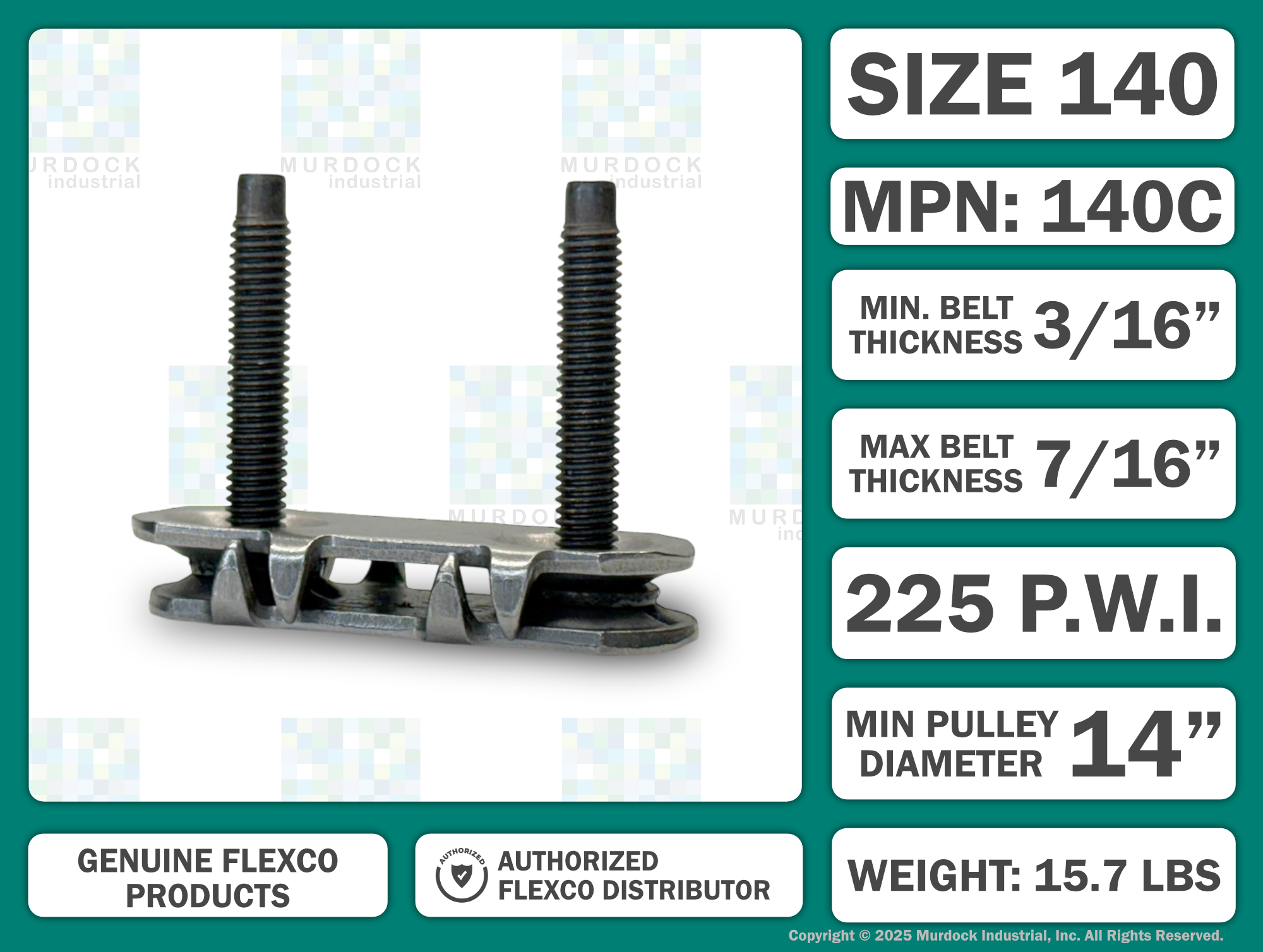

140C Steel Flexco Bolt Fasteners - 20012 - Bucket of 100
140C by Flexco | #20012 | Bolt Fasteners | Steel | Bucket of 100
Flexco

140C by Flexco | #20012 | Bolt Fasteners | Steel | Bucket of 100

Sale price$329.29
Flexco Bolt Solid Plate Fasteners
FREE SHIPPING DOMESTICALLY!

Package Quantity: 100 EA

In stock

Product Data:

Material(s):
  • Steel
Applicable Belt Thickness:
  • 3/16in to 7/16in
Applications:
  • Sand
  • Gravel
  • Crushed Stone
  • Grain
  • Coal
  • Cement
  • Salt
Overview:

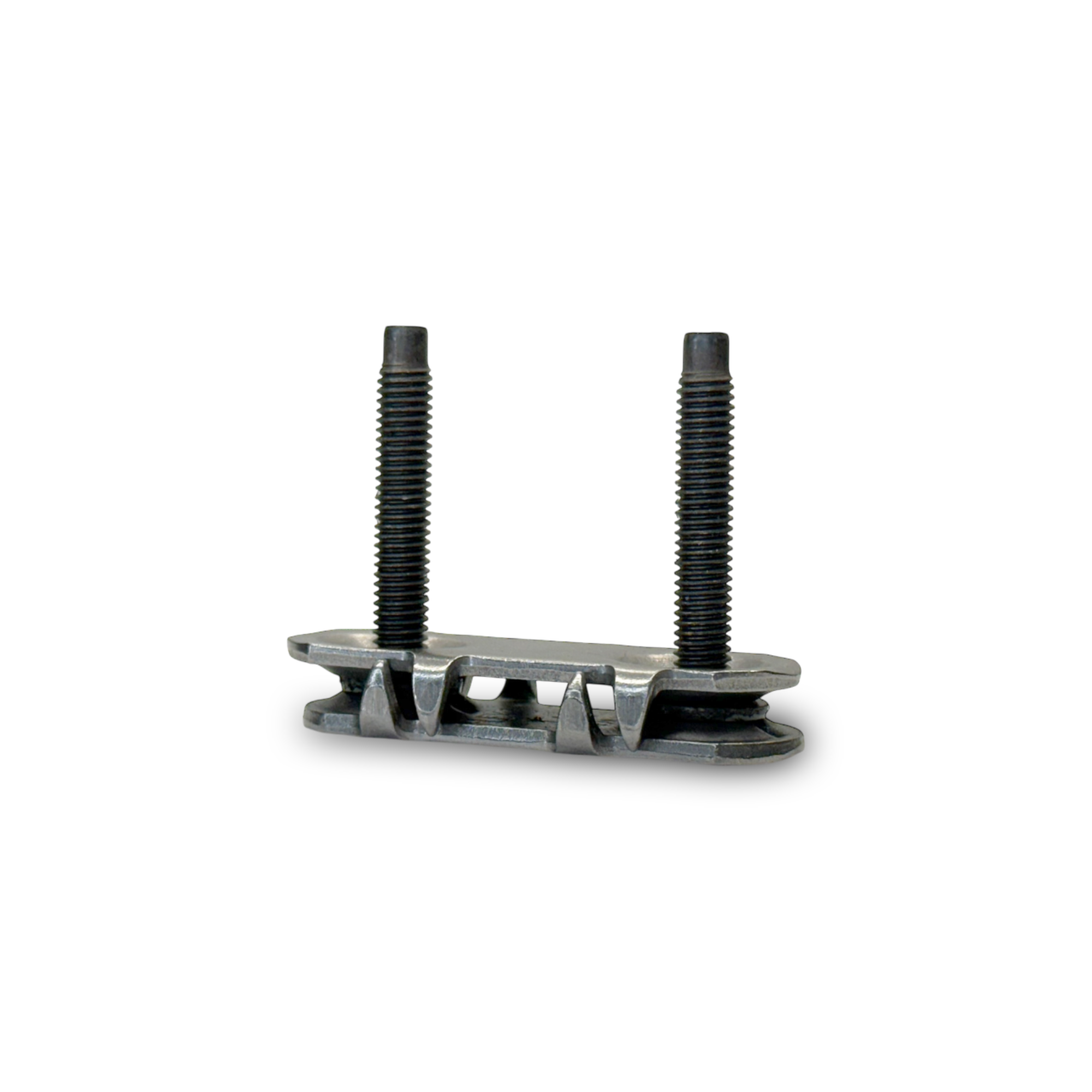

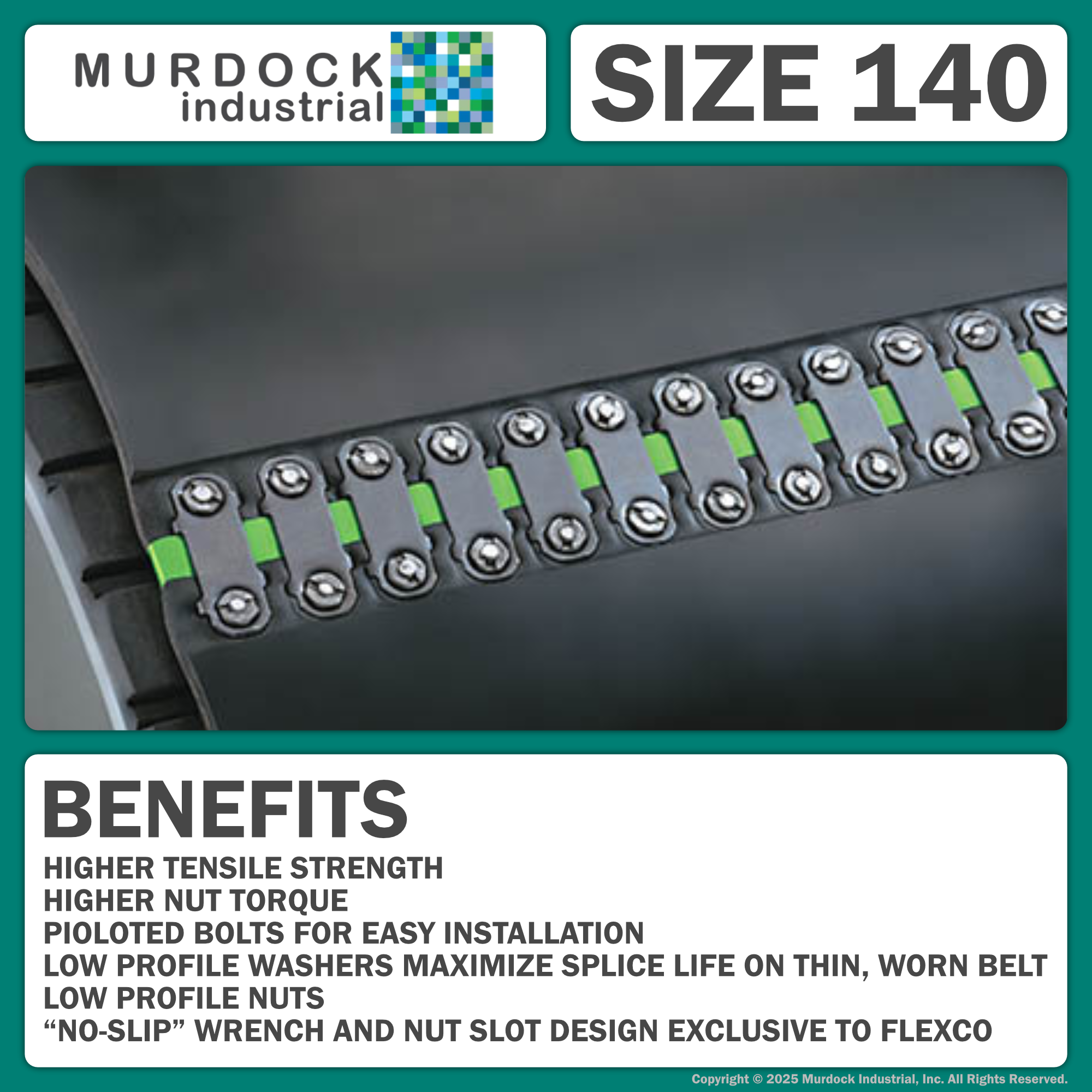

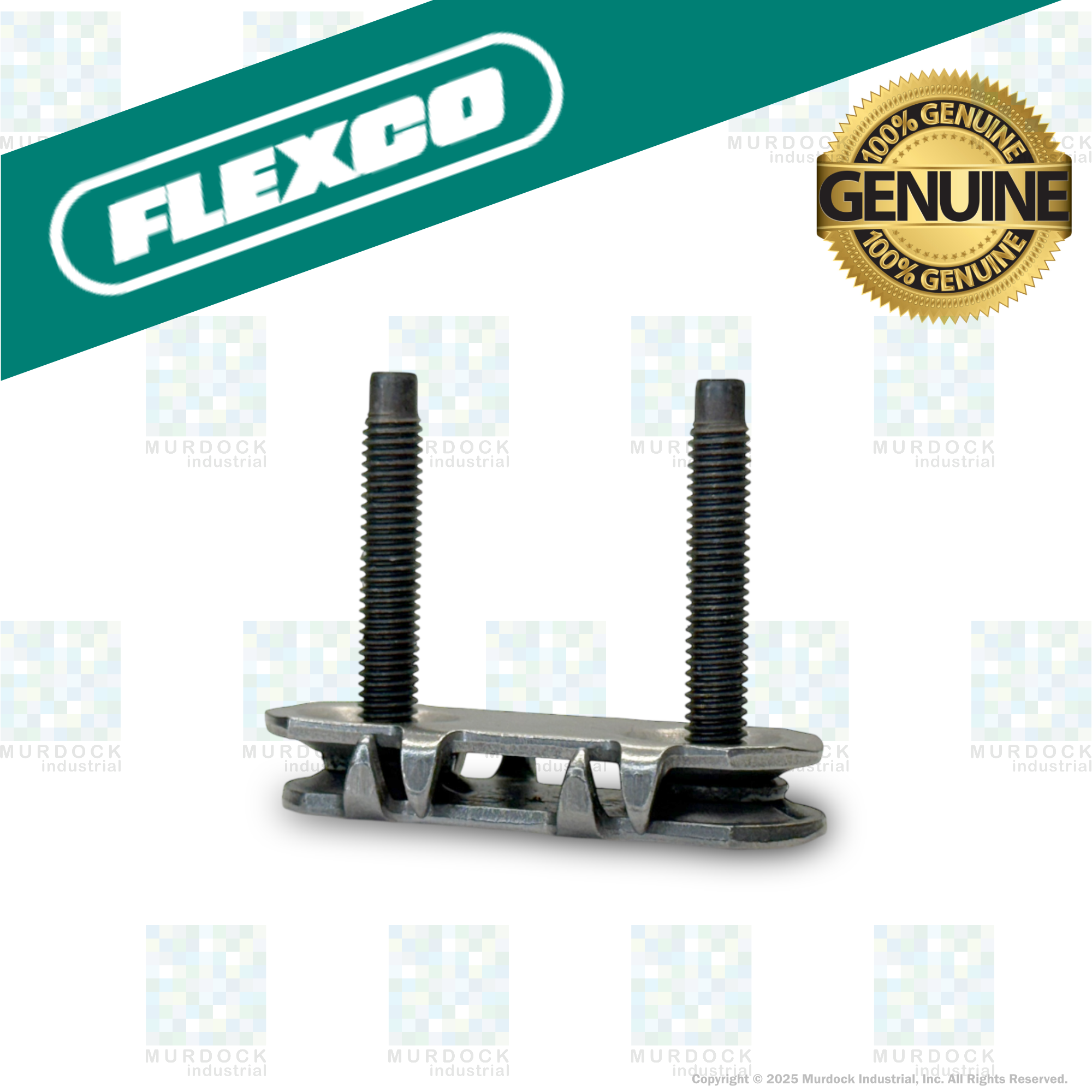

  • High strength is the result of superior design and plate compression on both the top and bottom sides of the belt. High tensile strength bolts compress top and bottom plates to distribute splice tension evenly across the entire width of each fastener plate. For added strength and pullout resistance, specially formed teeth penetrate deep into the belt carcass - without damaging carcass fibers.

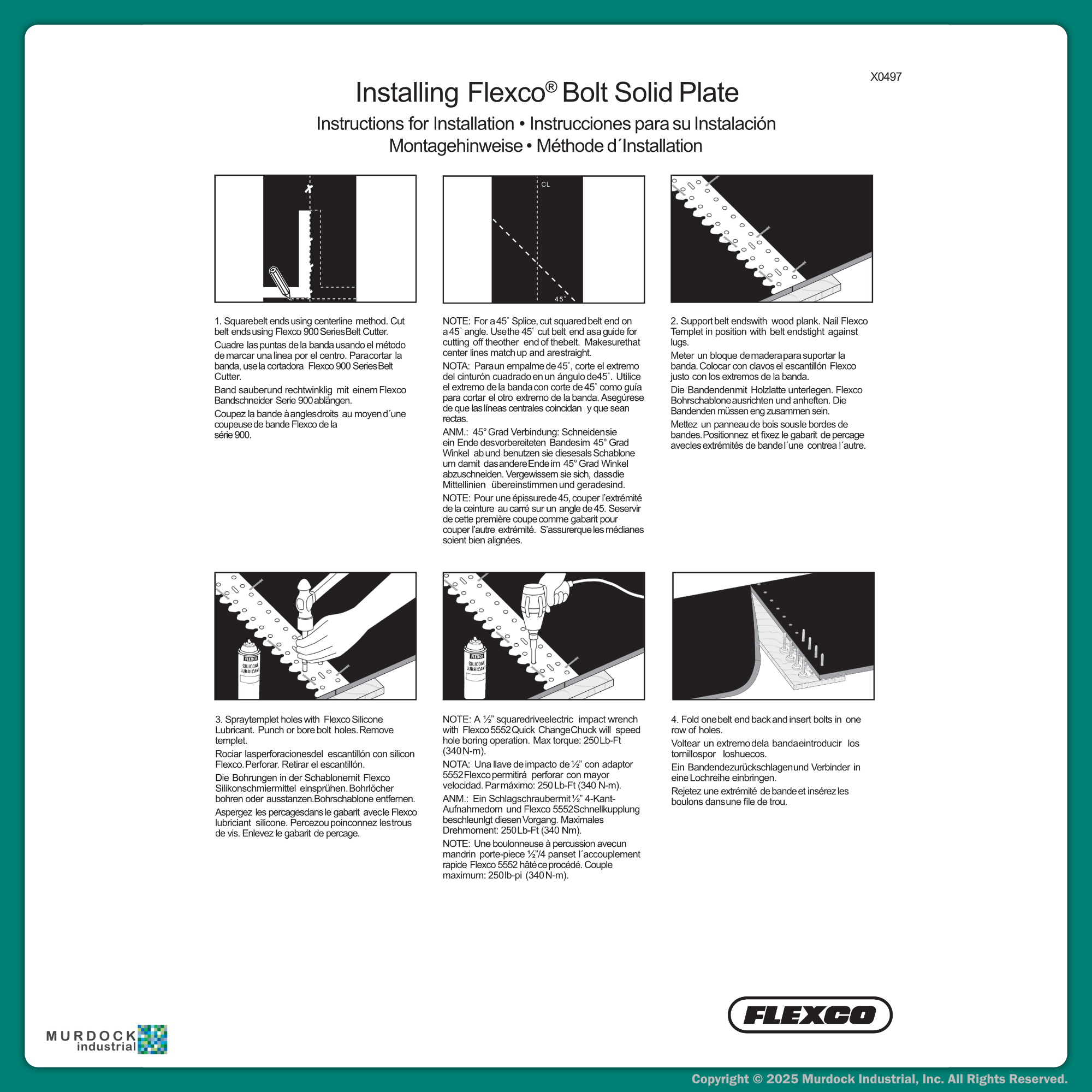

Installation:

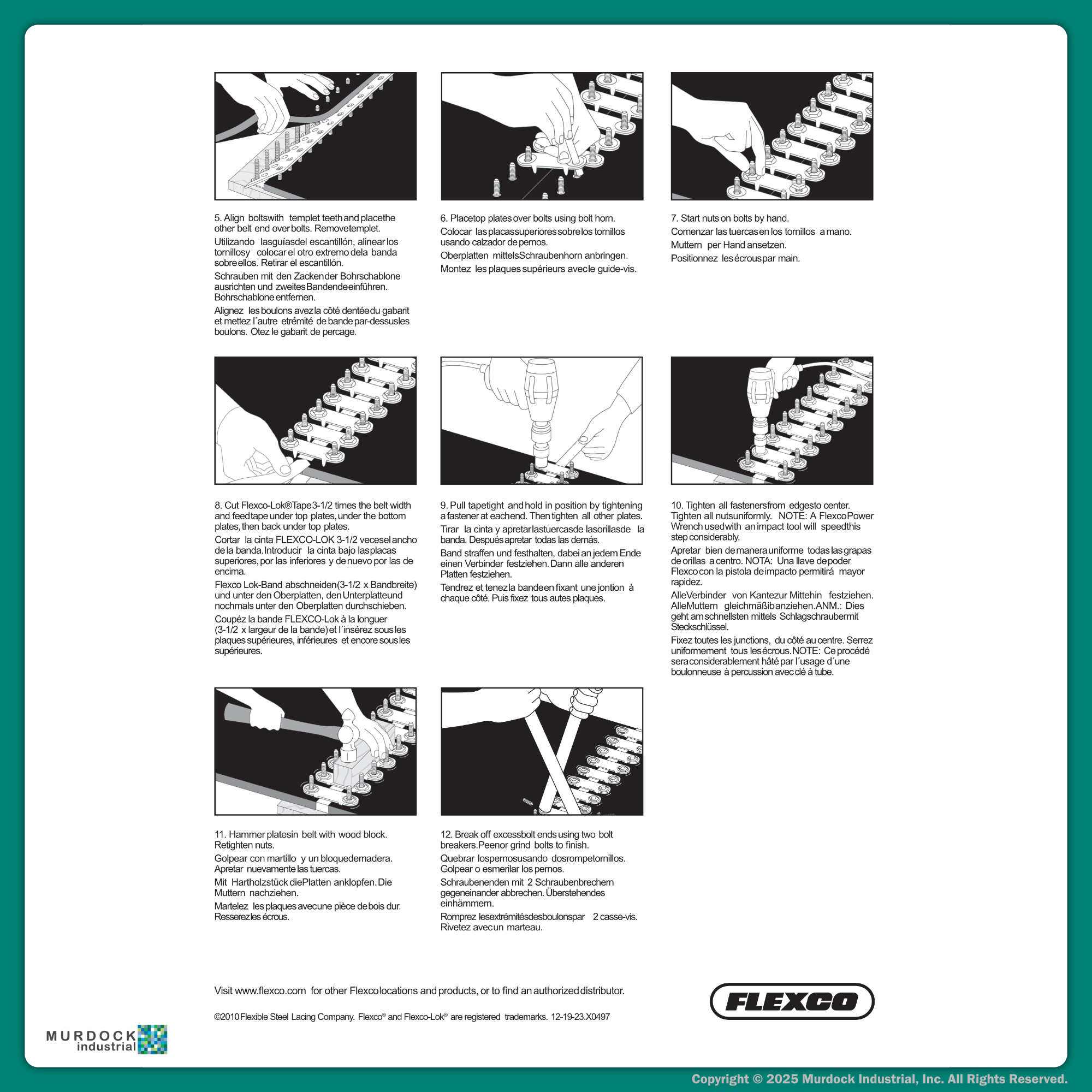

  • Field-proven templets, punches, and boring tools make it easy to quickly and accurately prepare belts for fastener installation. Fasteners are easily installed on-site using portable hand tools or power tools. Our exclusive piloted bolts also contribute to faster installation.
Note:

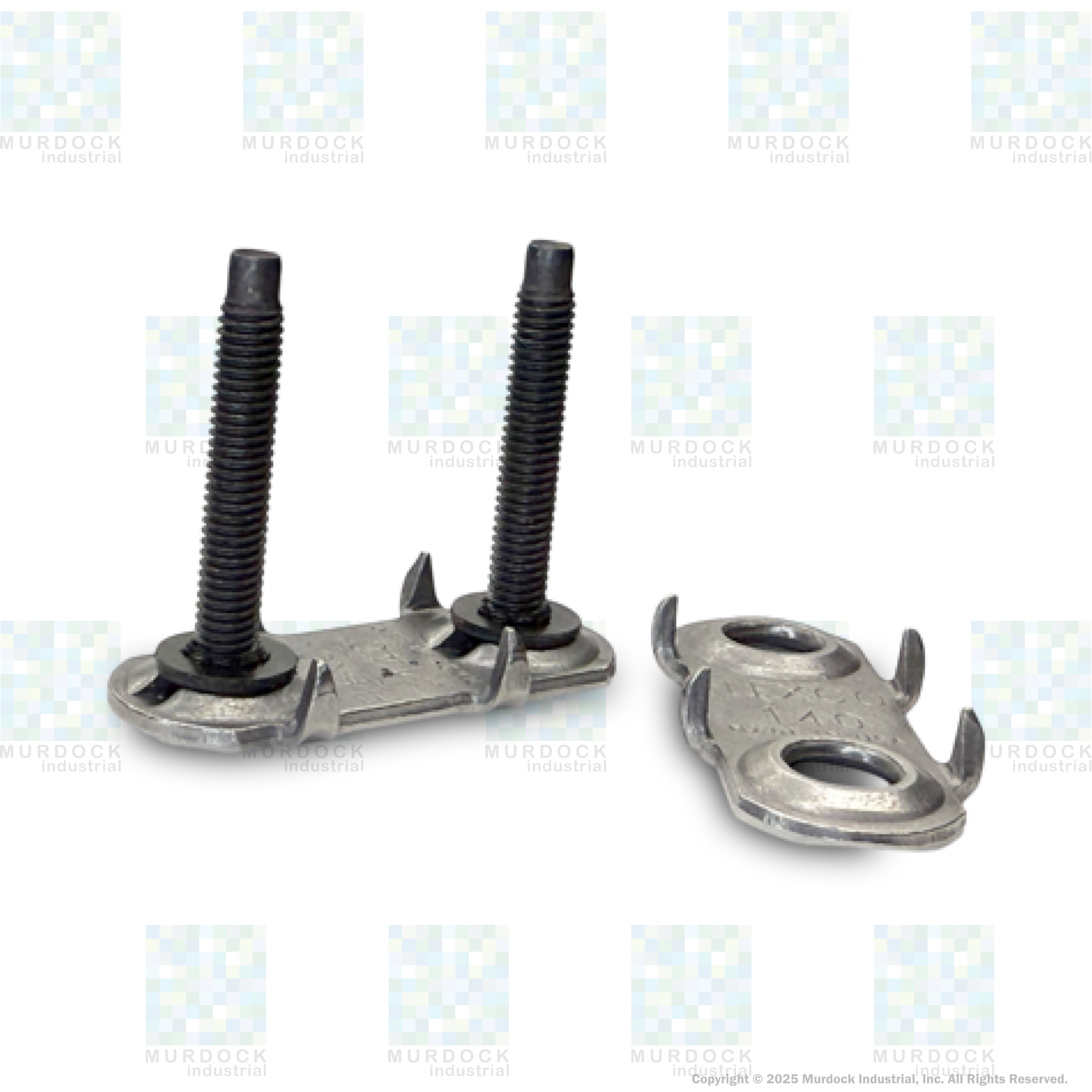

  • "C" Bucket: (100 Fastener Sets - Bottom Plates Pre-Assembeled).
Part Number Belt
Thickness		 Mechanical
Fastener Rating
(P.I.W.)		 Minimum
Pulley Diameter
(in.)
Steel
1C 3/16" - 7/16" 150 P.I.W. 12"
140C 3/16" - 7/16" 225 P.I.W. 14"
190C 5/16" - 9/16" 375 P.I.W. 18"
1-1/2C 7/16" - 11/16" 300 P.I.W. 18"
2C 9/16" - 13/16" 440 P.I.W. 30"
2-1/4C 9/16" - 1-3/16" 620 P.I.W. 36"
MegAlloy® Top Plates Balance Steel
140CMA 3/16" - 7/16" 225 P.I.W. 14"
190CMA 5/16" - 9/16" 375 P.I.W. 18"
1-1/2CMA 7/16" - 11/16" 300 P.I.W. 18"
2CMA 9/16" - 13/16" 440 P.I.W. 30"
2-1/4CMA 9/16" - 1-3/16" 620 P.I.W. 36"
MegAlloy® Top & Bottom Plates, Steel, Bolts & Nuts
140CMAP 3/16" - 7/16" 225 P.I.W. 14"
190CMAP 5/16" - 9/16" 375 P.I.W. 18"
1-1/2CMAP 7/16" - 11/16" 300 P.I.W. 18"
2CMAP 9/16" - 13/16" 440 P.I.W. 30"
Everdur
140CE 3/16" - 7/16" 225 P.I.W. 14"
190CE 5/16" - 9/16" 375 P.I.W. 18"
