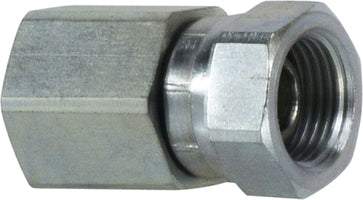

14051616 by Midland | Hydraulic Swivel | 1" Female Pipe x 1" Female NPSM | Adapter | Steel
Midland Industries
Hydraulic Adapters: Female Swivel Adapter - Female Pipe x Female NPSM - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.16 |
| 40–79 | $12.80 |
| 80+ | $11.30 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | ||||
|---|---|---|---|---|
| 1405 | 2046R | 1212 | 9255 | C207 |
 |
||
|---|---|---|
| Part Number | Female Pipe (1) |
Female NPSM (2) |
| 140522 (1405-2-2) |
1/8" | 1/8" |
| 140542 | 1/4" | 1/8" |
| 140544 (1405-4-4) |
1/4" | 1/4" |
| 140546 | 1/4" | 3/8" |
| 140564 (1405-6-4) |
3/8" | 1/4" |
| 140566 (1405-6-6) |
3/8" | 3/8" |
| 140568 (1405-6-8) |
3/8" | 1/2" |
| 140584 (1405-8-4) |
1/2" | 1/4" |
| 140588 (1405-8-8) |
1/2" | 1/2" |
| 1405812 | 1/2" | 3/4" |
| 1405128 | 3/4" | 1/2" |
| 14051212 (1405-12-12) |
3/4" | 3/4" |
| 14051216 | 3/4" | 1" |
| 14051612 (1405-16-12) |
1" | 3/4" |
| 14051616 (1405-16-16) |
1" | 1" |
| 14052020 (1405-20-20) |
1-1/4" | 1-1/4" |
| 14052424 (1405-24-24) |
1-1/2" | 1-1/2" |
| 14053232 (1405-32-32) |
2" | 2" |
