1404 12x8 by Couplamatic | Hydraulic Adapter | 3/4" Male NPTF x 1/2" Female NPSM | Straight
Buy more, save moreDiscounts applied in cart/checkout.
Hydraulic Adapter
1404 Hydraulic Adapter — Male NPTF × Female NPSM, Straight

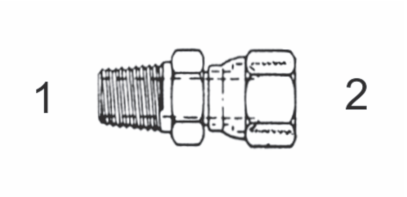

1404 adapters connect a Male NPTF port to a Female NPSM port, straight through.
1
What are the main product features?
- Steel construction — sized and rated for hydraulic system pressures.
- Adapts between port standards — lets a line terminate in one thread form and land on another without rebuilding the assembly.
- Stocked across the common size range — the chart below lists every size combination in this configuration.
2
Which sizes are available?
| Part Number | Male NPTF (1) | Female NPSM (2) |
|---|---|---|
| 1404 2x2 | 1/8" | 1/8" |
| 1404 2x4 | 1/8" | 1/4" |
| 1404 4x2 | 1/4" | 1/8" |
| 1404 4x4 | 1/4" | 1/4" |
| 1404 4x6 | 1/4" | 3/8" |
| 1404 6x4 | 3/8" | 1/4" |
| 1404 6x6 | 3/8" | 3/8" |
| 1404 6x6-031* | 3/8" | 3/8" |
| 1404 6x6-062** | 3/8" | 3/8" |
| 1404 6x8 | 3/8" | 1/2" |
| 1404 8x6 | 1/2" | 3/8" |
| 1404 8x8 | 1/2" | 1/2" |
| 1404 8x8-031 | 1/2" | 1/2" |
| 1404 8x8-062** | 1/2" | 1/2" |
| 1404 8x12 | 1/2" | 3/4" |
| 1404 12x8 | 3/4" | 1/2" |
| 1404 12x12 | 3/4" | 3/4" |
| 1404 12x16 | 3/4" | 1" |
| 1404 16x12 | 1" | 3/4" |
| 1404 16x16 | 1" | 1" |
| 1404 20x20 | 1-1/4" | 1-1/4" |
| 1404 24x24 | 1-1/2" | 1-1/2" |
| 1404 32x32 | 2" | 2" |
Restricted to 1/32" orifice. Restricted to 1/16" orifice. Orifice-restricted part numbers are marked with an asterisk in the chart above.
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
