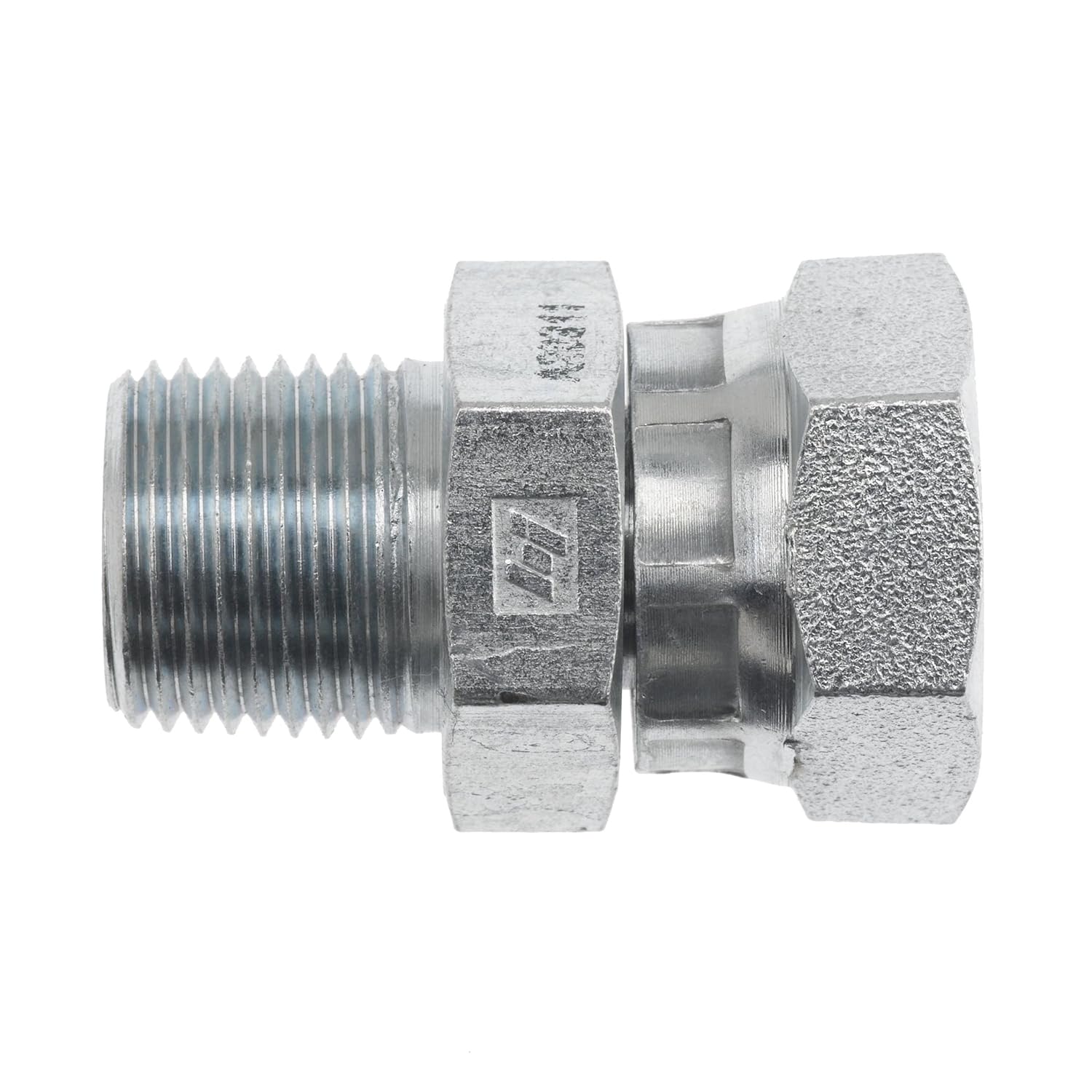

1404-12-12 by Brennan Inc. | -12 Male Pipe x -12 Female Pipe Swivel | Straight | Steel
Brennan Inc.
Tube Fittings & Adapters: 1404 - Male Pipe x Female Pipe Swivel Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.67 |
| 40–79 | $10.56 |
| 80+ | $9.32 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | A1 NPTF | A2 NPSM | A1 Drill | A2 Drill | L1 Length | L Length | C Hex | C1 Hex |
| 1404-02-02 | Steel | 1/8-27 | 1/8-27 | 0.188" | 0.11/.13 | 0.94" | 1.08" | 0.562" | 0.562" |
| 1404-02-04 | Steel | 1/8-27 | 1/4-18 | 0.188" | 0.21/0.23 | 1.05" | 1.24" | 0.688" | 0.688" |
| 1404-04-02 | Steel | 1/4-18 | 1/8-27 | 0.281" | 0.138 | 1.187" | 1.320" | 0.688" | 0.562" |
| 1404-04-04 | Steel | 1/4-18 | 1/4-18 | 0.281 | 0.220" | 1.23" | 1.42" | 0.688" | 0.688" |
| 1404-04-04-R.031 | Steel | 1/4-18 | 1/4-18 | 0.21 | 0.031" | 1.23" | 1.42" | 0.688" | 0.688" |
| 1404-04-06 | Steel | 1/4-18 | 3/8-18 | 0.281" | 0.281" | 1.310" | 1.520" | 0.812" | 0.875" |
| 1404-04-08 | Steel | 1/4-18 | 1/2-14 | 0.281" | 0.440" | 1.440" | 1.700" | 1.000" | 1.000" |
| 1404-06-04 | Steel | 3/8-18 | 1/4-18 | 0.406" | 0.220" | 1.30" | 1.49" | 0.750" | 0.688" |
| 1404-06-04-R.063 | Steel | 3/8-18 | 1/4-18 | - | - | - | - | - | - |
| 1404-06-06 | Steel | 3/8-18 | 3/8-18 | 0.406" | 0.340" | 1.30" | 1.52" | 0.875" | 0.875" |
| 1404-06-06-R.031 | Steel | 3/8-18 | 3/8-18 | 0.339" | 0.031" | 1.30" | 1.52" | 0.875" | 0.875" |
| 1404-06-06-R.095 | Steel | 3/8-18 | 3/8-18 | 0.339" | 0.95" | 1.30" | 1.52" | 0.875" | 0.875" |
| 1404-06-08 | Steel | 3/8-18 | 1/2-14 | 0.406" | 0.460" | 1.42" | 1.70" | 1.000" | 1.000" |
| 1404-08-04 | Steel | 1/2-14 | 1/4-18 | 0.531" | 0.220" | 1.52" | 1.71" | 0.875" | 0.688" |
| 1404-08-06 | Steel | 1/2-14 | 3/8-18 | 0.531" | 0.340" | 1.56" | 1.77" | 0.875" | 0.875" |
| 1404-08-08 | Steel | 1/2-14 | 1/2-14 | 0.531" | 0.460" | 1.61" | 1.89" | 1.000" | 1.000" |
| 1404-08-08-R.031 | Steel | 1/2-14 | 1/2-14 | 0.440" | 0.0.31" | 1.66" | 1.94" | 1.000" | 1.000" |
| 1404-08-08-R.0625 | Steel | 1/2-14 | 1/2-14 | 0.440" | 0.0625" | 1.66" | 1.94" | 1.000" | 1.000" |
| 1404-08-12 | Steel | 1/2-14 | 3/4-14 | 0.531" | 0.620" | 1.740" | 2.090" | 1.250" | 1.250" |
| 1404-12-06 | Steel | 3/4-14 | 3/8-18 | 0.719" | 0.340" | 1.56" | 1.77" | 1.125" | 0.875" |
| 1404-12-08 | Steel | 1/2-14 | 3/4-14 | 0.531" | 0.620" | 1.740" | 2.090" | 1.250" | 1.250" |
| 1404-12-12 | Steel | 3/4-14 | 3/4-14 | 0.63" | 0.63" | 1.75" | 2.08" | 1.250" | 1.250" |
| 1404-12-16 | Steel | 3/4-14 | 1-11-1/2 | 0.719" | 0.780" | 1.81" | 2.16" | 1.500" | 1.500" |
| 1404-12-20 | Steel | 3/4-14 | 1-1/4-1-1/2 | 0.719" | 1.085" | 1.86" | 2.28" | 1.875" | 1.875" |
| 1404-16-06 | Steel | 1-11-1/2 | 3/8-18 | 0.938" | 0.320/0.340" | 1.830" | 2.040" | 1.500" | 0.875" |
| 1404-16-08 | Steel | 1-11-1/2 | 1/2-14 | 0.938" | 0.460" | 1.910" | 2.160" | 1.375" | 1.000" |
| 1404-16-12 | Steel | 1-11-1/2 | 3/4-14 | 0.938" | 0.610" | 1.94" | 2.29" | 1.500" | 1.250" |
| 1404-16-16 | Steel | 1-11-1/2 | 1-11-1/2 | 0.938" | 0.780" | 2.00" | 2.35" | 1.500" | 1.500" |
| 1404-16-20 | Steel | 1-11-1/2 | 1-1/4-11-1/2 | 0.938" | 0.938" | 2.050" | 2.470" | 1.875" | 1.875" |
| 1404-16-24 | Steel | 1-11-1/2 | 1-1/2-11-1/2 | 0.938" | 1.250" | 2.170" | 2.550" | 2.125" | 2.125" |
| 1404-20-16 | Steel | 1-1/4-11-1/2 | 1-11-1/2 | 1.250" | 0.78/0.80" | 2.050" | 2.400" | 1.875" | 1.500" |
| 1404-20-20 | Steel | 1-1/4-11-1/2 | 1-1/4-11-1/2 | 1.250" | 1.01/1.03" | 2.100" | 2.520" | 1.875" | 1.875" |
| 1404-20-24 | Steel | 1-1/4-11-1/2 | 1-1/2-11-1/2 | 1.250" | 1.250" | 2.09" | 2.47" | 2.125" | 2.125" |
| 1404-24-20 | Steel | 1-1/2-11-1/2 | 1-1/4-11-1/2 | 1.500" | 1.010" | 2.120" | 2.540" | 2.125" | 1.875" |
| 1404-24-24 | Steel | 1-1/2-11-1/2 | 1-1/2-11-1/2 | 1.500" | 1.250/1.270" | 2.270" | 2.690" | 2.125" | 2.125" |
| 1404-32-32 | Steel | 2-11-1/2 | 2-11-1/2 | 1.938" | 1.72" | 2.40" | 2.82" | 2.625" | 2.625" |
| 1404-02-02-SS | Stainless Steel | 1/8-27 | 1/8-27 | 0.188" | 0.150" | 0.94" | 1.08" | 0.562" | 0.562" |
| 1404-02-04-SS | Stainless Steel | 1/8-27 | 1/4-18 | 0.188" | 0.21/0.23 | 1.05" | 1.24" | 0.688" | 0.688" |
| 1404-04-02-SS | Stainless Steel | 1/4-18 | 1/8-27 | 0.281" | 0.138 | 1.187" | 1.320" | 0.688" | 0.562" |
| 1404-04-04-SS | Stainless Steel | 1/4-18 | 1/4-18 | 0.281 | 0.220" | 1.23" | 1.42" | 0.688" | 0.688" |
| 1404-04-06-SS | Stainless Steel | 1/4-18 | 3/8-18 | 0.281" | 0.281" | 1.310" | 1.520" | 0.812" | 0.875" |
| 1404-06-04-SS | Stainless Steel | 3/8-18 | 1/4-18 | 0.406" | 0.220" | 1.30" | 1.49" | 0.750" | 0.688" |
| 1404-06-06-SS | Stainless Steel | 3/8-18 | 3/8-18 | 0.406" | 0.340" | 1.30" | 1.52" | 0.875" | 0.875" |
| 1404-06-08-SS | Stainless Steel | 3/8-18 | 1/2-14 | 0.406" | 0.460" | 1.42" | 1.70" | 1.000" | 1.000" |
| 1404-08-06-SS | Stainless Steel | 1/2-14 | 3/8-18 | 0.531" | 0.340" | 1.56" | 1.77" | 0.875" | 0.875" |
| 1404-08-08-SS | Stainless Steel | 1/2-14 | 1/2-14 | 0.531" | 0.460" | 1.61" | 1.89" | 1.000" | 1.000" |
| 1404-08-12-SS | Stainless Steel | 1/2-14 | 3/4-14 | 0.531" | 0.620" | 1.740" | 2.090" | 1.250" | 1.250" |
| 1404-12-08-SS | Stainless Steel | 3/4-14 | 1/2-14 | 0.719" | 0.44/0.48" | 1.65" | 1.93" | 1.125" | 1.000" |
| 1404-12-12-SS | Stainless Steel | 3/4-14 | 3/4-14 | 0.63" | 0.63" | 1.75" | 2.08" | 1.250" | 1.250" |
| 1404-12-16-SS | Stainless Steel | 3/4-14 | 1-11-1/2 | 0.719" | 0.780" | 1.81" | 2.16" | 1.500" | 1.500" |
| 1404-16-12-SS | Stainless Steel | 1-11-1/2 | 3/4-14 | 0.938" | 0.610" | 1.94" | 2.29" | 1.500" | 1.250" |
| 1404-16-16-SS | Stainless Steel | 1-11-1/2 | 1-11-1/2 | 0.938" | 0.780" | 2.00" | 2.35" | 1.500" | 1.500" |
| 1404-20-20-SS | Stainless Steel | 1-1/4-11-1/2 | 1-1/4-11-1/2 | 1.250" | 1.010" | 2.100" | 2.520" | 1.875" | 1.875" |
| 1404-20-24-SS | Stainless Steel | 1-1/4-11-1/2 | 1-1/2-11-1/2 | 1.250" | 1.250" | 2.09" | 2.47" | 2.125" | 2.125" |
| 1404-24-24-SS | Stainless Steel | 1-1/4-11-1/2 | 1-1/2-11-1/2 | 1.500" | 1.250" | 2.27" | 2.69" | 2.125" | 2.125" |
| 1404-32-32-SS | Stainless Steel | 2-11-1/2 | 2-11-1/2 | 1.938" | 1.72" | 2.40" | 2.82" | 2.625" | 2.625" |
| 1404-02-02-BLANK | Steel | 1/8-27 | 1/8-27 | .188" | BLANK | .94" | 1.08" | .562" | .562" |
| 1404-04-04-BLANK | Steel | 1/4" | 1/4-18 | .281" | BLANK | 1.23" | 1.42" | .688" | .688" |
| 1404-06-06-BLANK | Steel | 3/8" | 3/8-18 | 0.406" | BLANK | 1.30" | 1.52" | 0.875" | 0.875" |
| 1404-06-08-BLANK | Steel | 3/8-18 | 1/2-14 | 0.406" | BLANK | 1.42" | 1.70" | 1.00" | 1.00" |
| 1404-08-08-BLANK | Steel | 1/2-14 | 1/2-14 | 0.531" | BLANK | 1.61" | 1.89" | 1.000" | 1.000" |
| 1404-12-12-BLANK | Steel | 3/4-14 | 3/4-14 | 0.63" | BLANK | 1.75" | 2.08" | 1.250" | 1.250" |
