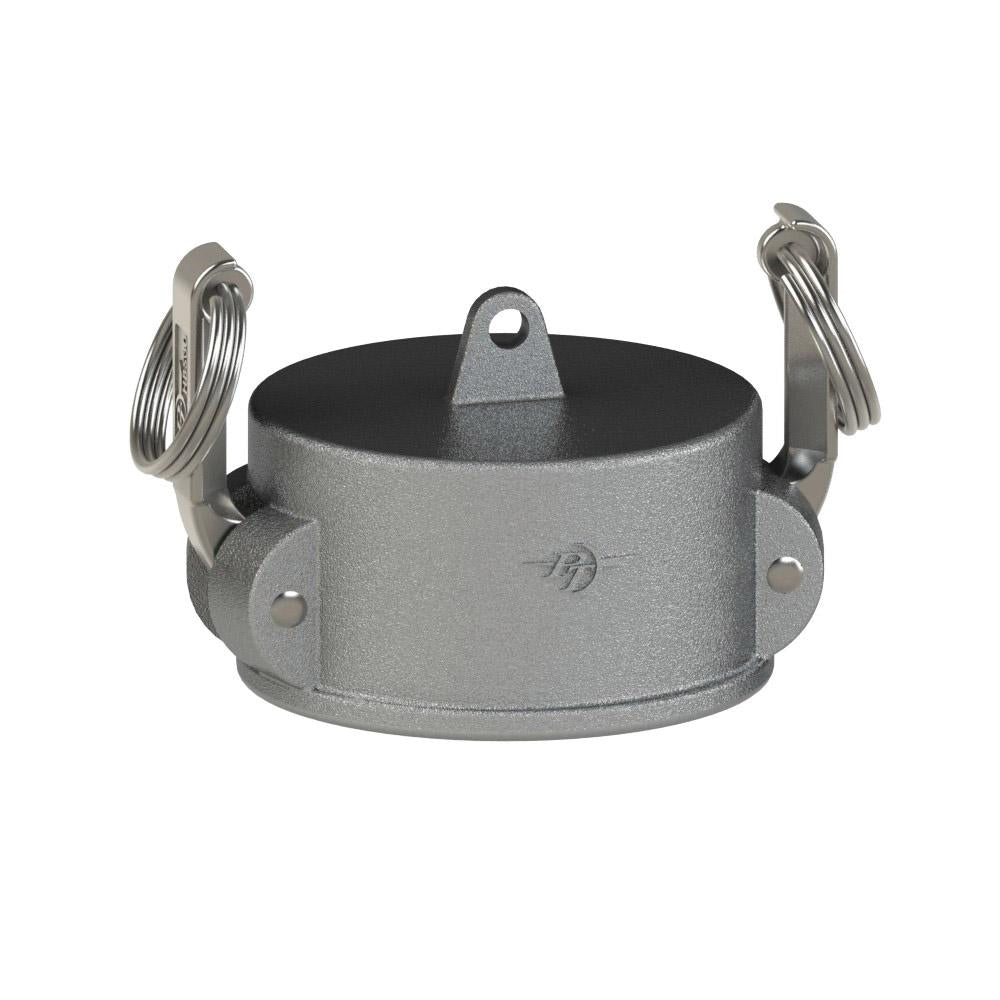

1401107 (07V) by PT-Coupling | Cam & Groove Dust Cap | Type V | 3/4" Coupler | 316 Stainless Steel

1401107 (07V) by PT-Coupling | Cam & Groove Dust Cap | Type V | 3/4" Coupler | 316 Stainless Steel

Sale price$56.41

PT Coupling
Cam and Groove (Camlock) Dust Cap | Type V | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $53.03
40–79 $47.95
80+ $42.31
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DC

Ends Configuration:
  • 3/4in Female Cam & Groove
Material(s):
  • 316 Stainless Steel
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • 8, 10 and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
E05V 1401101 1/2" 4.21" 1.82" 1.30" 0.50" 1.03" 250 PSI
07V 1401107 3/4" 4.51" 2.11" 1.35" 0.50" 0.97" 250 PSI
10V 1401110 1" 5.10" 2.44" 1.60" 0.62" 1.19" 250 PSI
12V 1401112 1-1/4" 6.86" 3.26" 1.89" 0.60" 1.44" 250 PSI
15V 1401115 1-1/2" 7.16" 3.56" 1.96" 0.86" 1.48" 250 PSI
20V 1401120 2" 7.54" 3.94" 2.25" 0.76" 1.75" 250 PSI
25V 1401125 2-1/2" 8.03" 4.43" 2.28" 0.90" 1.75" 200 PSI
30V 1401130 3" 9.56" 5.46" 2.27" 1.03" 1.84" 200 PSI
40V 1401140 4" 10.66" 6.56" 2.34" 0.99" 1.87" 150 PSI
50V 1401150 5" 11.67" 7.57" 2.44" 1.15" 1.97" 75 PSI
60V 1401160 6" 16.26" 10.16" 2.76" 1.14" 2.19" 75 PSI
80V 1401180** 8" 18.23" 12.13" 2.72" 1.18" 2.15" 50 PSI
100V 1401190** 10" 20.66" 14.56" 3.30" 1.30" 2.55" 50 PSI
120V 1401192** 12" 22.72" 16.62" 3.50" 1.30" 2.55" 50 PSI

** 8, 10 and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
